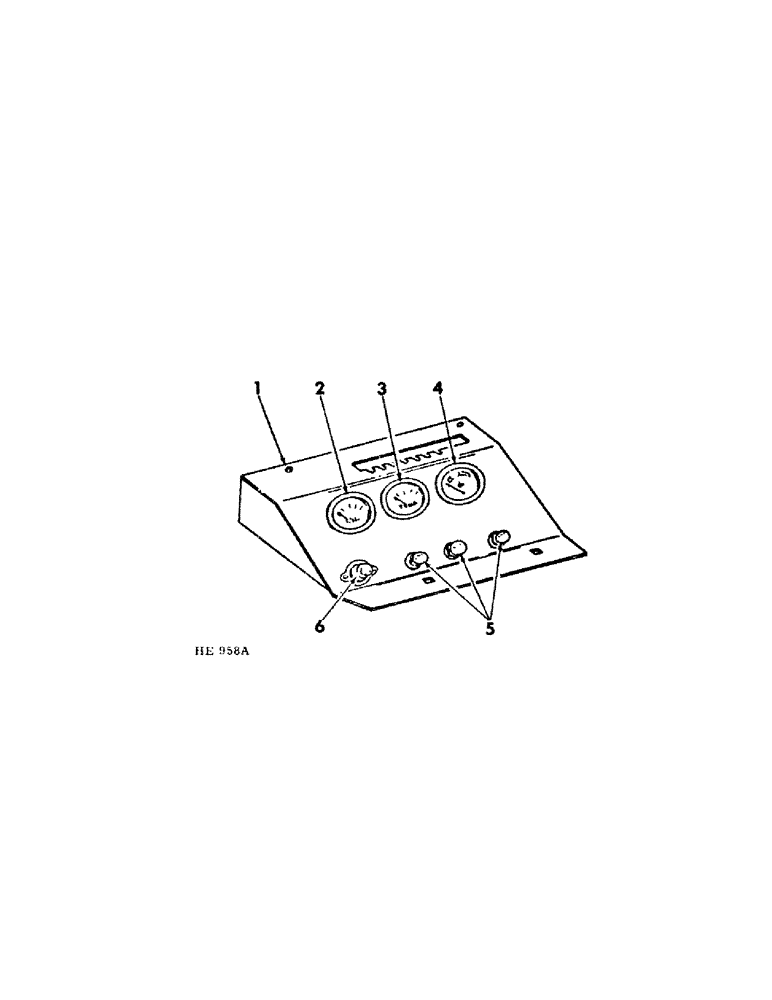

Запчасти Case IH 210 (M-02) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, INSTRUMENT PANEL (10) - OPERATORS PLATFORM

1

599928R1

PANEL, instrument (Prior to Serial No. 3700)

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1-1/2" crg

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

825800C1

PANEL, instrument (serial No. 3700 and Since Shown)

1шт.

341934C1

NUT

speed

2шт.

162074

COTTER PIN

SCREW, No. 14 x 5/8" pan-hd self-tapping

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

362039R94

GAUGE

oil pressure (opt to use 393488R91, GAUGE)

1шт.

2

393488R91

SWITCH

GAUGE, oil pressure (opt to use 362039R94, GAUGE)

1шт.

3

259347R91

GAUGE

heat indicator (Includes 1-51510D, BUSHING)

1шт.

51510D

BUSHING

indicator reducing

1шт.

4

269467R92

INDICATOR

GAUGE, ammeter

1шт.

5

62801DC

SWITCH

3шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga

3шт.

6

366317R93

SWITCH

BUTTON, starter

1шт.

6

366317R93GV

CONTROL

Value, Control Switch

1шт.

132903

ADAPTER

SCREW, #10 7/16" rd-hd slt

2шт.

120611

NUT,#10 - 32

#10

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
