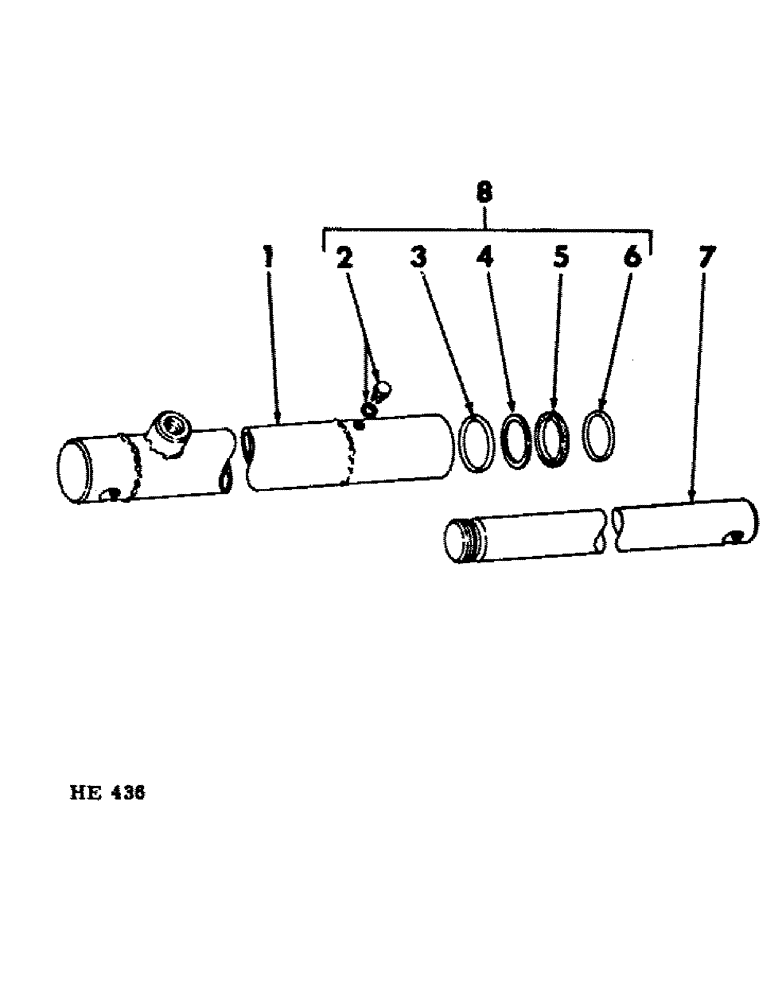

Запчасти Case IH 210 (F-17) - HYDRAULICS SYSTEM, REEL LIFT SLAVE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

CYLINDER, reel lift slave w/pipe thread inlet port 1970 (For service order 1-825295C91 CYLINDER ASSY, 1-9410202 UNION and 1-364839R1, "O" RING

1шт.

825295C91

CYLINDER

reel lift slave w/straight thread inlet port composed of parts listed below unless otherwise noted.

1шт.

1

BARREL, hyd cyl w/pipe thread inlet port 1970 (For service order 1-599991R1 BARREL, 1-9410202 UNION and 1-364839R1 "O" RING)

1шт.

1

599991R1

BARREL, hyd cyl w/straight thread inlet port

1шт.

2

SCREW W/WASHER, bleeder (Order 1-826027C91, KIT) (NSS)

1шт.

3

"O" RING, piston rod (Order 1-826027C91, KIT) (NSS)

1шт.

4

WASHER, back-up (Order 1-826027C91, KIT) (NSS)

1шт.

5

OIL SEAL, piston rod (Order 1-826027C91, KIT) (NSS)

1шт.

6

RING, piston rod snap (Order 1-826027C91, KIT) (NSS)

1шт.

7

609985R1

ROD

piston

1шт.

8

826027C91

SEAL KIT

KIT, cylinder seal repair

1шт.
