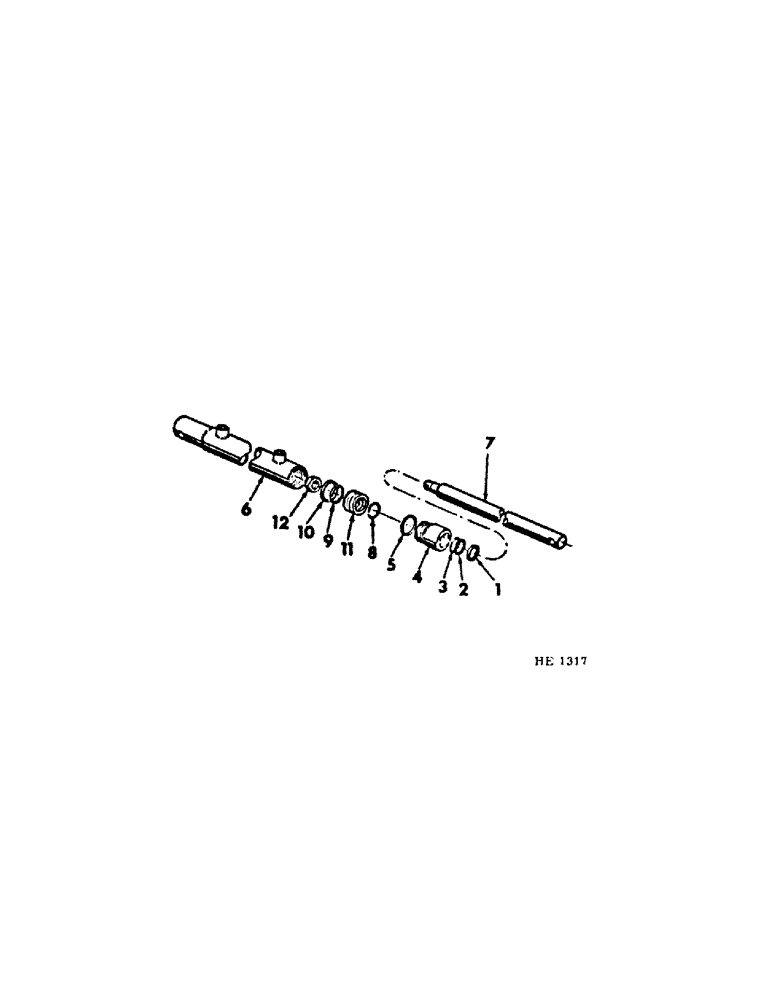

Запчасти Case IH 210 (F-16[A]) - HYDRAULICS SYSTEM, REEL LIFT MASTER HYDRAULIC CYLINDER, SERIAL NUMBER 3700 AND SINCE (07) - HYDRAULIC SYSTEM

1

SEAL, shaft (For service order 1-161334C91, KIT) (NSS)

1шт.

2

WASHER, 1/8 x 1-1/8" I.D. back-up (For service order 1-161334C91, KIT) (NSS)

1шт.

3

"O" RING, 1/8 x 1-1/8" I.D. bearing (For service order 1-161334C91, KIT) (NSS)

1шт.

4

161333C1

HEAD

BEARING, piston rod

1шт.

5

"O" RING, 3/32 x 1-3/8" I.D. bearing (For service order 1-161334C91, KIT) (NSS)

1шт.

6

BARREL, cylinder (For service order 1-158749C91, CYLINDER) (NSS)

1шт.

7

161331C1

ROD

piston

1шт.

8

"O" RING, 1/16 x 1-1/8" I.D. piston (For service order 1-161334C91, KIT) (NSS)

1шт.

9

"O" RING, 1/16 x 1-1/4" I.D. piston (For service order 1-161334C91, KIT) (NSS)

1шт.

10

RING, piston (For service order 1-161334C91, KIT) (NSS)

1шт.

11

161332C1

PISTON

cylinder

1шт.

12

NUT, 3/4" - 16 lock NUT

1шт.

161334C91

KIT

cylinder seal service (Includes items 1, 2, 3, 5, 8, 9 & 10)

1шт.
