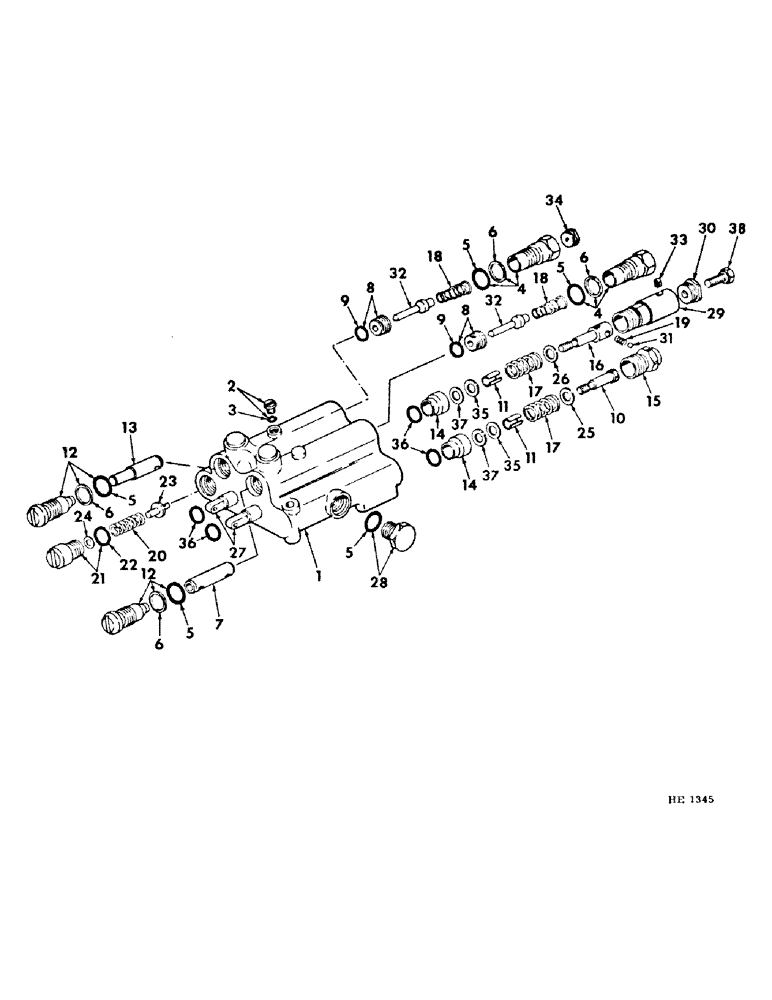

Запчасти Case IH 210 (F-12) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE, SERIAL NUMBER 2880 AND SINCE (07) - HYDRAULIC SYSTEM

825326C92

VALVE

ASSY, hydraulic control(composed of all parts listed otherwise noted)

1шт.

1

BODY, valve (For service order 1-825326C92, VALVE ASSY) (NSS)

1шт.

2

825226C91

PLUG

ASSY, hyd control (Includes "O" RING)

1шт.

3

"O" RING, 1/16 x 7/32 I.D. plug (For service order 1-825236C92, KIT) (NSS)

1шт.

4

674507R91

PLUG

ASSY, port adaptor (Includes 1- "O" RING & 1 WASHER)

2шт.

5

"O" RING, 3/32 x 5/8 I.D. plug (For service order 1-825236C92, KIT) (NSS)

5шт.

6

WASHER, plug back-up (For service order 1-825236C92, KIT) (NSS)

4шт.

7

588352R1

PLUNGER

lockout

1шт.

8

674505R91

SEAT

ASSY, lockout (Includes "O" RING)

2шт.

9

"O" RING, 1/16 x 1/2 I.D. seat lockout (For service order 1-825236C92, KIT) (NSS)

2шт.

10

674491R1

SCREW

spool

1шт.

11

674492R1

SPACER

spool

2шт.

12

674515R91

PLUG

ASSY, lockout (Includes 1 - "O" RING & 1 - WASHER)

2шт.

13

825235C1

PLUNGER, unloading

1шт.

14

674775R1

BUSHING

spool

2шт.

15

674493R91

CAP

spool

1шт.

16

201845C1

SCREW

spool detent

1шт.

17

674490R1

SPRING

spool centering

2шт.

18

674509R1

SPRING

lockout

2шт.

19

201737C1

SPRING

detent

2шт.

20

673751R1

SPRING

relief valve

1шт.

21

202210C91

PLUG

ASSY, sltd relief valve (Includes "O" RING)

1шт.

22

"O" RING, 3/32 x 9/16 I.D. relief valve (For service order 1-825236C92, KIT) (NSS)

1шт.

23

674501R1

VALVE POPPET

POPPET, relief valve

1шт.

24

674504R1

WASHER

SHIM, .015 relief valve

1шт.

24

394655R1

WASHER

SHIM, .010 relief valve

1шт.

24

673647R1

WASHER

SHIM, .035 relief valve

1шт.

25

673628R1

WASHER

spring

1шт.

26

674502R1

WASHER

spring

1шт.

27

SPOOL, valve control (For service order 1-825326C92, VALVE ASSY) (NSS)

2шт.

28

674510R91

PLUG

ASSY, power beyond (Includes "O" RING)

1шт.

29

824541C1

CAP

detent

1шт.

30

824542C1

PLUG

detent cap adjusting

1шт.

180021

SPRING

1/4 x 7/8"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

31

16005R1

BALL

5/32 chrome detent

4шт.

32

827334C1

VALVE POPPET

POPPET, port adaptor (Part of 825236C92 KIT)

2шт.

33

824543C1

PLUG

filter

1шт.

34

674516R1

PORT

PLATE, orifice

1шт.

Not part of valve.

1шт.

35

824545C1

WASHER

.670 O.D. x .327 I.D. x .020 ga spool spring

2шт.

36

"O RING, 3/32 x 1/2 I.D. spool (For service order 1-825236C91, KIT) (NSS)

4шт.

37

202649C1

SPRING WASHER

.670 O.D. x .327 I.D. x .046 ga spool spring

2шт.

38

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8" plug

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

825236C92

KIT

seal service (Includes items 3, 5, 6, 9, 22, 32 & 36)

1шт.
