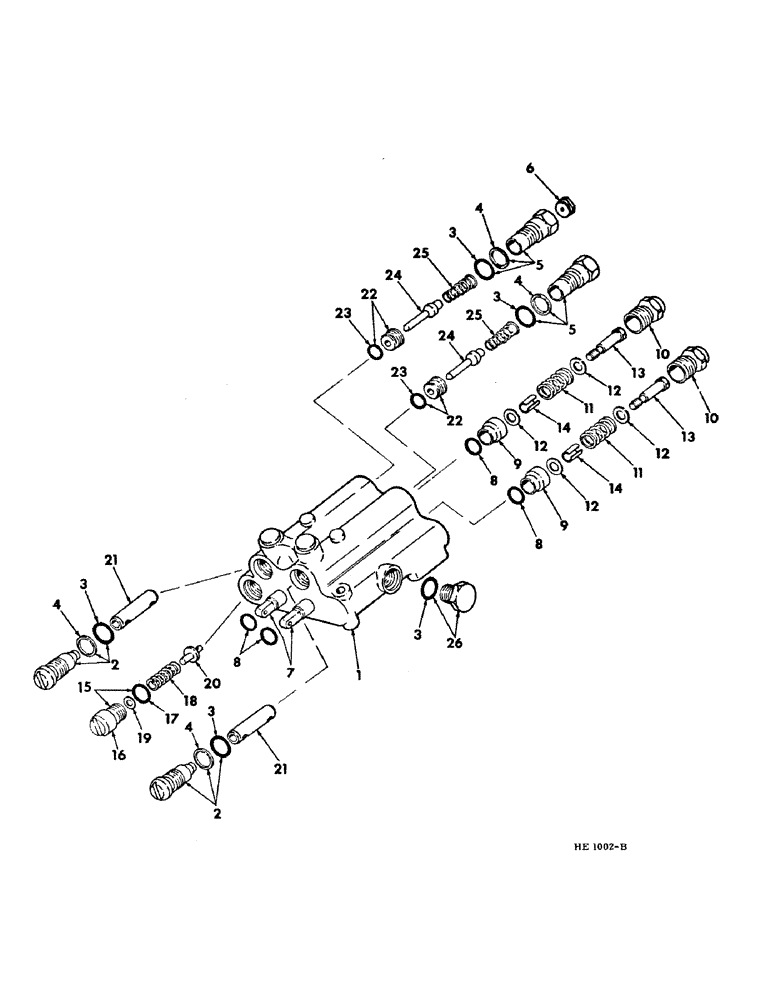

Запчасти Case IH 210 (F-10) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE, PRIOR TO SERIAL NUMBER 2880 (07) - HYDRAULIC SYSTEM

VALVE ASSY, control (For service order 1-825326C92, VALVE ASSY)

1шт.

1

BODY, valve control (For service order 1-825326C92, VALVE ASSY) (NSS)

1шт.

2

674515R91

PLUG

ASSY, valve (Includes "O" RING & WASHER)

2шт.

3

"O" RING, 3/32 x 5/8 I.D. plug (For service order 1-824576C1, KIT) (NSS)

5шт.

4

WASHER, plug back-up (For service order 1-824576C1, KIT) (NSS)

4шт.

5

674507R91

PLUG

ASSY, valve (Includes "O" RING & WASHER)

2шт.

6

674516R1

PORT

PLATE, orifice

1шт.

Not part of valve assembly.

1шт.

7

SPOOL, valve control (For service order 1-825326C92, VALVE ASSY) (NSS)

2шт.

8

"O" RING, 3/32 x 1/2 I.D. spool (For service order 1-842576C1, KIT) (NSS)

4шт.

9

674775R1

BUSHING

spool

2шт.

10

674493R91

CAP

valve

2шт.

11

674490R1

SPRING

spool centering

2шт.

12

673628R1

WASHER

spring inner & outer

4шт.

13

674491R1

SCREW

spool

2шт.

14

674492R1

SPACER

spool screw

2шт.

15

202210C91

PLUG

ASSY, relief valve (Includes "O" RING)

1шт.

16

PLUG, relief valve (For service order 1-202210C91, PLUG ASSY) (NSS)

1шт.

17

"O" RING, 3/32 x 9/16 I.D. relief valve (For service order 1-824576C1, KIT) (NSS)

1шт.

18

673751R1

SPRING

relief

1шт.

19

674504R1

WASHER

SHIM, .015" spring adjusting

1шт.

19

394655R1

WASHER

SHIM, .010" spring adjusting

1шт.

19

673647R1

WASHER

SHIM, .035" spring adjusting

1шт.

20

674501R1

VALVE POPPET

POPPET, spring

1шт.

21

588352R1

PLUNGER

lockout

2шт.

22

674505R91

SEAT

ASSY, lockout (Includes "O" RING)

2шт.

23

"O" RING, 1/16 x 1/2 I.D. seat lockout (For service order 1-824576C1, KIT) (NSS)

2шт.

24

POPPET, valve (For service order 1-824576C1, KIT) (NSS)

2шт.

25

674509R1

SPRING

poppet

2шт.

26

674510R91

PLUG

ASSY, power beyond (Includes "O" RING)

1шт.

824576C1

KIT, valve seal service (Includes items 3, 4, 8, 17, 23 & 24)

1шт.
