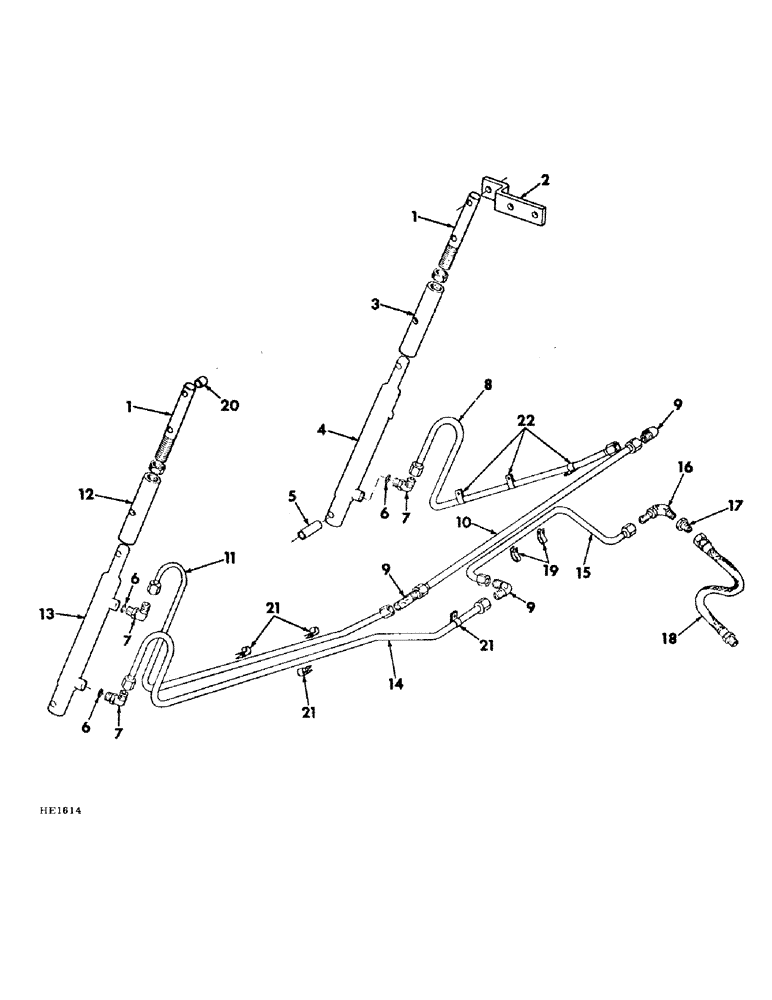

Запчасти Case IH 210 (F-08) - HYDRAULICS SYSTEM, HYDRAULIC SYSTEM, REEL LIFT LINES, SERIAL NUMBER 3700 AND SINCE (07) - HYDRAULIC SYSTEM

1

824862C1

STUD, reel cylinder adjusting

2шт.

219791

HOSE

NUT, 1-1/8" hex jam

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 " std-hd-dld (RH)

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4" std-hd-dld (LH)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

825604C1

SUPPORT

cylinder upper RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 1/2" lk

2шт.

3

824864C1

SLEEVE, slave cylinder adjusting RH

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

825295C91

CYLINDER

ASSY, reel lift slave (For service parts refer to "REEL LIFT SLAVE HYDRAULIC CYLINDER")

1шт.

825393C1

PIN, slave cylinder pivot

1шт.

Not part of Cylinder Assembly.

1шт.

5

432984R2

SPACER,1/2" X-Strng Pipe x 1 7/8"

1/2 x 1-7/8" pipe slave cylinder

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3шт.

8

824721C11

TUBE, slave cylinder RH

1шт.

9

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

3/8 tube 90deg.

3шт.

10

824716C11

TUBE

slave cylinder center 14-1/2 ft.

1шт.

10

824717C11

TUBE

slave cylinder center 16-1/2 ft.

1шт.

10

824718C1

TUBE

slave cylinder center 19-1/2 ft.

1шт.

11

823083C1

TUBE, master cylinder outlet

1шт.

12

824863C1

SLEEVE, cylinder adjusting LH

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

13

158749C91

CYLINDER

ASSY, reel lift master (For service parts refer to "REEL LIFT MASTER HYDRAULIC CYLINDER")

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4" std-hd-dld

1шт.

Not part of Cylinder Assembly.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Not part of Cylinder Assembly.

1шт.

14

823084C1

TUBE, master cylinder inlet LH

1шт.

15

823111C11

TUBE, master cylinder inlet 14-1/2 ft.

1шт.

15

823107C11

TUBE, master cylinder inlet 16-1/2 ft.

1шт.

15

824959C1

TUBE, master cylinder inlet 19-1/2 ft.

1шт.

16

823130C1

ELBOW, 90deg. bulkhead

1шт.

17

9403332

PLUG,9/16"-18, 37 Degree

bulkhead (For use when disconnecting platform)

1шт.

18

611937R91

HOSE ASSY.

HOSE, platform jumper

1шт.

19

595432R1

CLAMP

tube

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

2шт.

20744R1

WASHER, 11/32 sq-hole x 7/8 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

217779R1

SPACER

cylinder

1шт.

21

595432R1

CLAMP

tube

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

595432R1

CLAMP

tube RH

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
