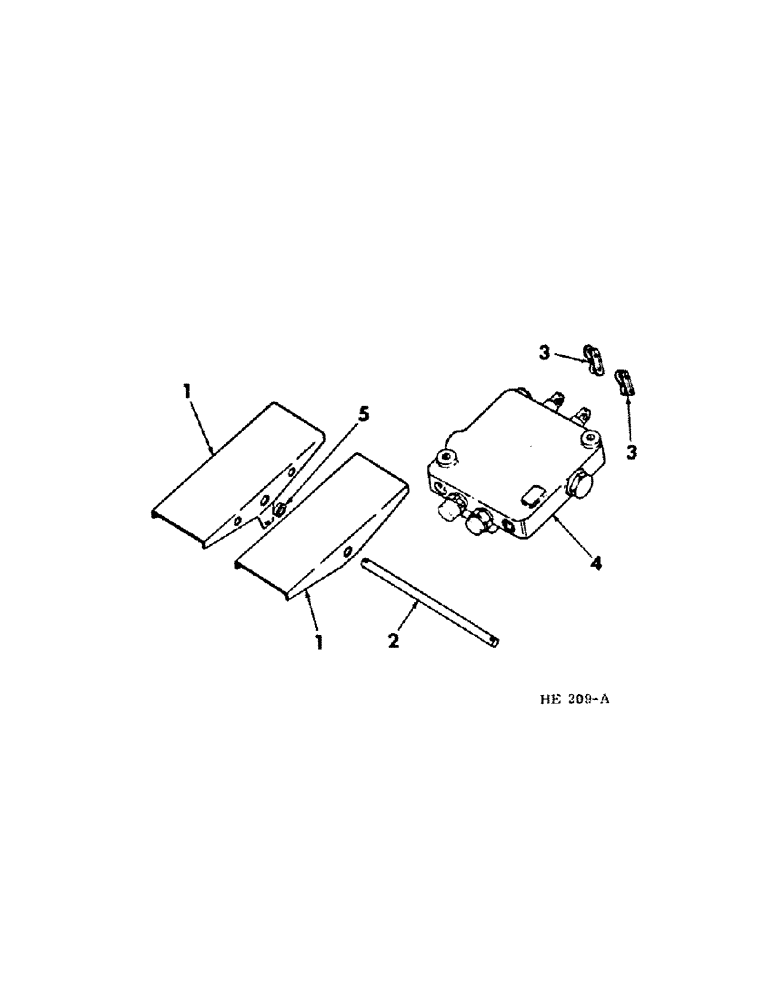

Запчасти Case IH 210 (F-07) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE PEDAL (07) - HYDRAULIC SYSTEM

1

597926R1

PEDAL, hyd valve control

2шт.

2

591976R1

PIN, pedal pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

598083R1

CHAIN (AG)

LINK, connecting

2шт.

4

VALVE, hyd control (For service parts refer to "HYDRAULIC CONTROL VALVE")

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

Not part of valve.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

Not part of valve.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not part of valve.

1шт.

5

611463R1

SPACER, pedal

1шт.
