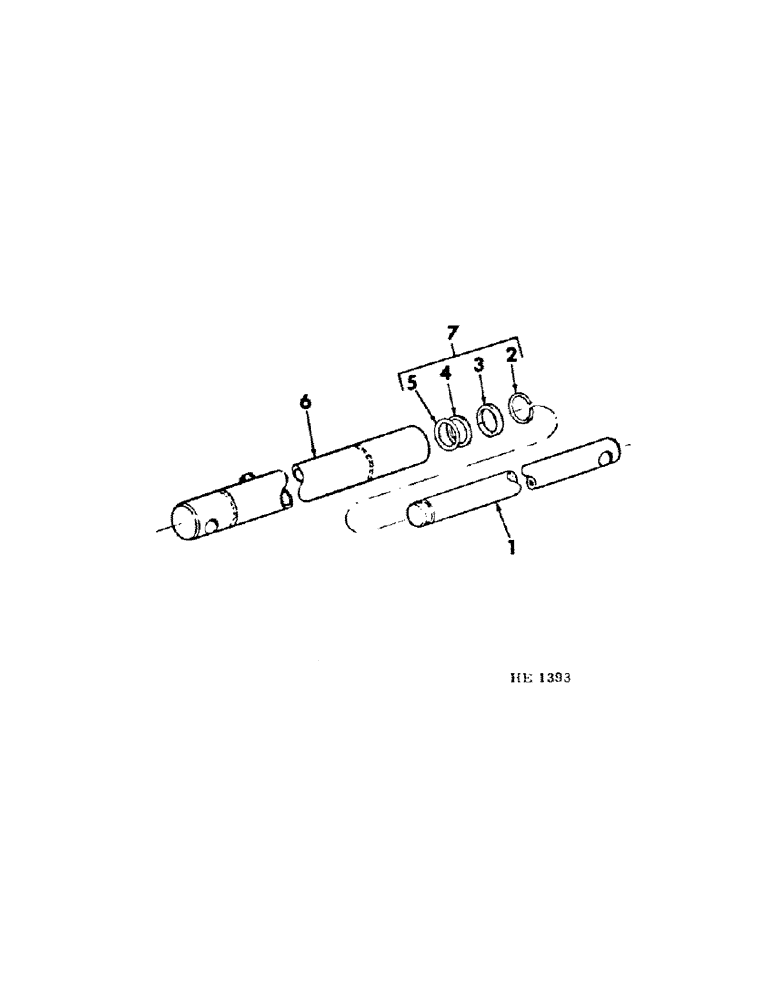

Запчасти Case IH 210 (F-07[A]) - HYDRAULICS SYSTEM, PLATFORM LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

591989R91

CYLINDER ASSY, platform lift hyd (Includes all parts listed below)

2шт.

1

592251R1

ROD, hyd cyl piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING, rod lock (Order 1-477855R91, KIT)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, piston rod wiper (Order 1-477855R91, KIT)

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, back-up (Order 1-477855R91, KIT)

1шт.

5

NSS

NOT SOLD SEPARAT

"O" RING, piston rod (Order 1-477855R91, KIT)

1шт.

6

592250R91

BODY, cylinder

1шт.

7

477855R91

SEAL KIT

hyd cylinder seal repair composed of : (1) "O" ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) washer (NSS)

1шт.
