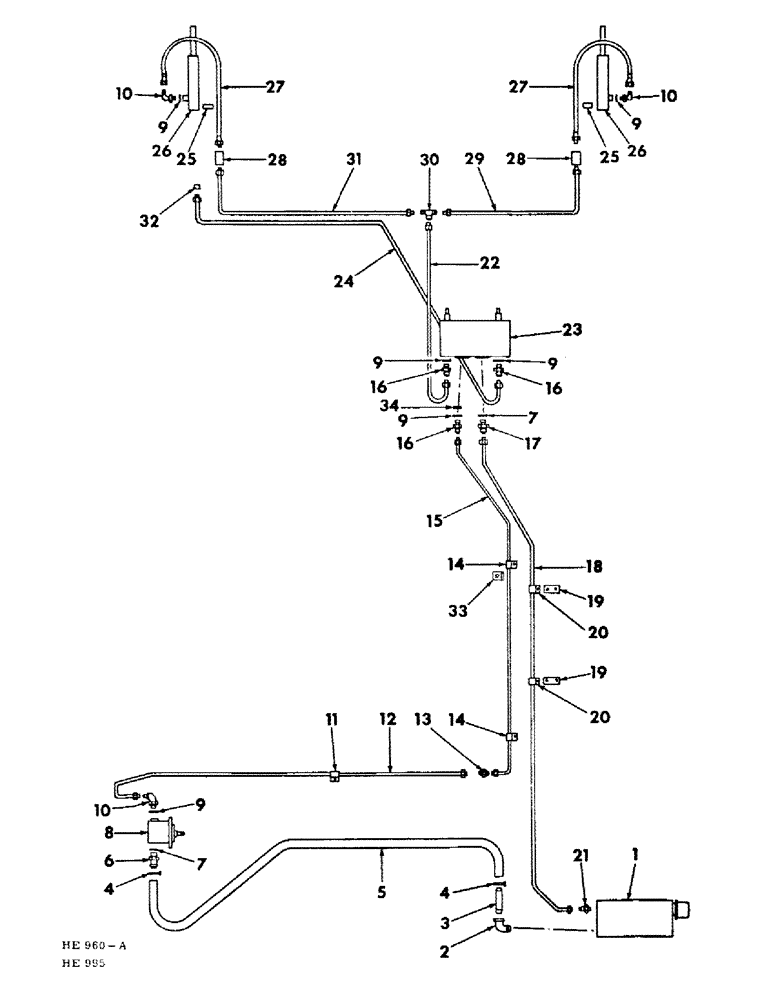

Запчасти Case IH 210 (F-02) - HYDRAULICS SYSTEM, CHASSIS, PRIOR TO SERIAL NUMBER 3700 (07) - HYDRAULIC SYSTEM

1

597436R91

RESERVOIR, hydraulic oil (For service parts refer to "HYDRAULIC OIL RESERVOIR")

1шт.

2

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" - 90deg. strainer

1шт.

3

591977R1

FITTING, hose

1шт.

4

628091R1

CLAMP, hose (For use w/1-1-8 OD hose)

2шт.

4

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose (For use w/1-3/8 OD hose)

2шт.

5

636342R1

HOSE, suction

1шт.

6

614328R1

CONNECTOR, ELEC

CONNECTOR, short swivel

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING

2шт.

8

PUMP ASSY, hydraulic (For service parts refer to "HYDRAULIC PUMP")

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" (For use w/591979R91 pump)

4шт.

Not part of Assembly.

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 (For use w/591980R91 PUMP)

2шт.

Not part of Assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

Not part of Assembly.

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

10

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

hydraulic 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

11

595432R1

CLAMP

tube

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

599225R11

TUBE, pressure rear

1шт.

13

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

hydraulic

1шт.

14

595432R1

CLAMP

tube

2шт.

180018

CONNECTING LINK

1/4 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

599224R11

TUBE

pressure front

1шт.

16

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, tube connecting

3шт.

17

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, valve return

1шт.

18

599223R11

TUBE, return

1шт.

19

172362H1

STRAP, clamp

2шт.

20

825525C1

CLAMP, tube

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR, hydraulic

1шт.

22

599226R11

TUBE, valve to tee platform lift 0.375" OD, 16.5, 3.2" Length

1шт.

23

VALVE ASSY, hyd control (Prior to Serial No. 2880) (For service order 1-825326C92 VALVE ASSY)

1шт.

23

825326C92

VALVE

ASSY, hyd control (Serial No. 2280 and Since) (For service parts refer to "HYDRAULIC CONTROL VALVE")

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

Not part of Assembly.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

Not part of Assembly.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not part of Assembly.

1шт.

24

825133C11

TUBE, valve to reel lift hose

1шт.

25

592186R1

SPACER, platform cylinder rear

2шт.

26

591989R91

CYLINDER ASSY, platform lift (For service parts refer to "PLATFORM LIFT HYDRAULIC CYLINDER")

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2"

2шт.

280954

NUT,3/4"-10, G5

2шт.

27

611119R91

HOSE, platform lift cylinder

2шт.

28

613697R1

BLOCK, pipe elbow

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20803R1

WASHER

13/32 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

825132C11

TUBE, platform lift RH

1шт.

30

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

platform lift tube

1шт.

31

825131C11

TUBE, platform lift LH

1шт.

32

9403371

CAP,37 Degree, 9/16"-18

cylinder hose (For use when platform is disconnected)

1шт.

33

598489R1

ANGLE

tube clamp support (Serial No. 641 and Since)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21801R1

WASHER

9/32 and 3/4 x 16 ga

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

674516R1

PORT

PLATE, valve orifice

1шт.
