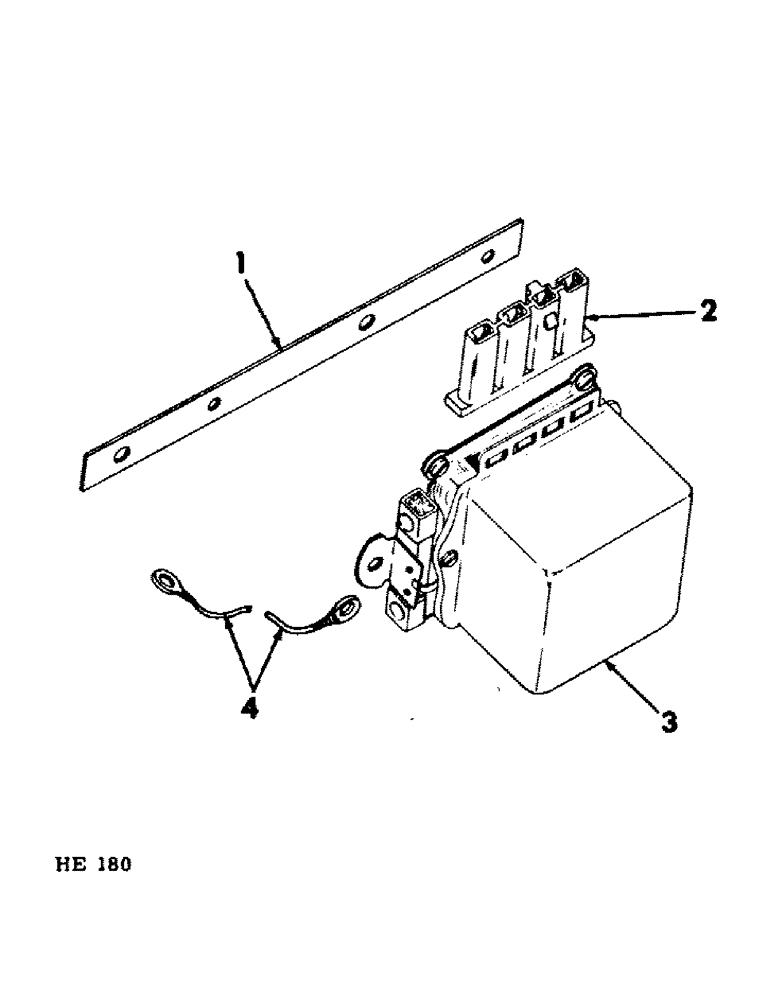

Запчасти Case IH 210 (G-11) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR MOUNTING (06) - ELECTRICAL SYSTEMS

1

595498R11

BRACKET, voltage regulator mounting

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

969325R1

ELEC CONNECTOR,Female

CONNECTOR, voltage regulator terminal

1шт.

3

1119513

VOLTAGE REGULATOR

REGULATOR, voltage (336410R91)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2"

2шт.

Not part of regulator.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not part of regulator.

1шт.

4

595497R11

CABLE, voltage, Serial Range: regulator-alternator

1шт.
