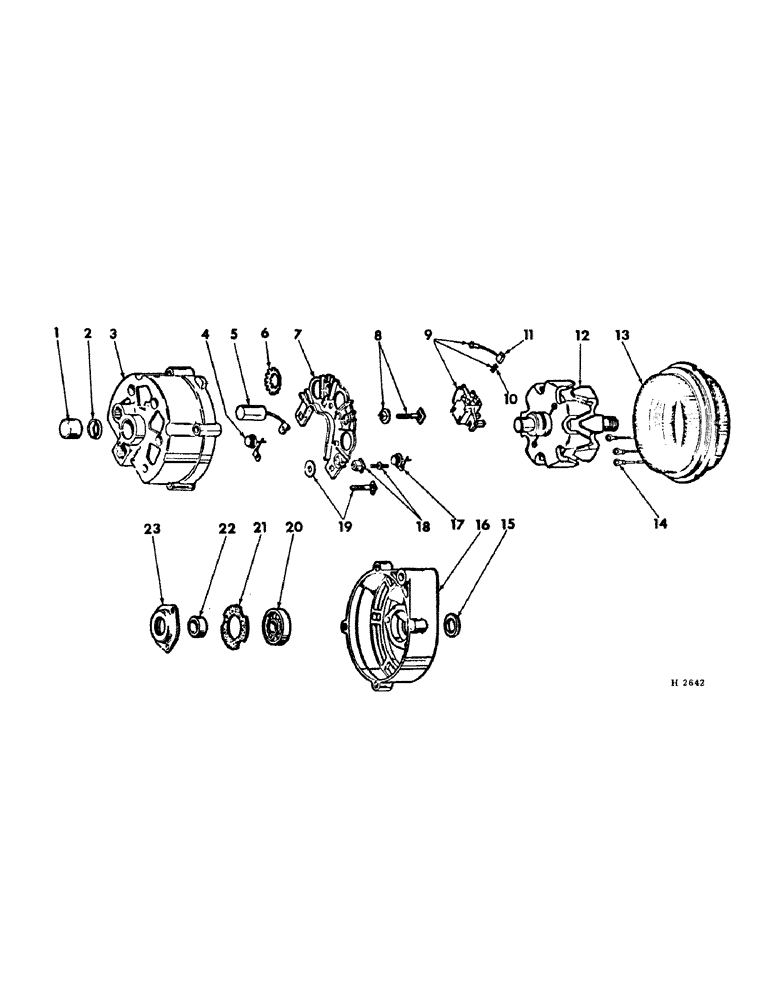

Запчасти Case IH 210 (G-09) - ELECTRICAL SYSTEM, ALTERNATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1100805

GENERATOR

ALTERNATOR, 12 volt (702337C91) (composed of all parts listed unless otherwise noted)

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

Not part of Alternator.

1шт.

225-14112

NUT,#12-24

NUT, No. 12

1шт.

Not part of Alternator.

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Not part of Alternator.

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

Not part of Alternator.

1шт.

1

7451763

BEARING

BEARING, rotor end frame

1шт.

2

1961323

SEAL

RETAINER & FELT, rotor end frame

1шт.

3

1969329

FUNNEL

FRAME FRAME, rotor end composed of: (3) package 1964354, (1) bearing 7451763, (1) retainer 1961323, (1) condenser 1959455, (1) retainer 1960750

1шт.

1956975

BOLT

BOLT, Generator through

4шт.

4

1964354

DIODE

PACKAGE, negative diode

3шт.

5

1959455

CAPACITOR

CONDENSER, rotor end frame

1шт.

6

1960750

VALVE SPRING

RETAINER, rotor end condenser

1шт.

7

1959828

PACKAGE

HEAT SINK & DIODE, generator (Includes 1959834 & 1964353 PACKAGES)

1шт.

132768

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

SCREW, Heat sink attaching

1шт.

9419392

SPARE PART WASHER, Attaching screw spg

1шт.

495-31025

WASHER,3/16"

Attaching screw plain

1шт.

1959389

INSULATOR

INSULATOR, Attaching screw

1шт.

1959523

SPARE PART WASHER, Attaching screw insulator

1шт.

8

1959833

TERMINAL CONNECTOR

PACKAGE, ground terminal

1шт.

9

1964682

HOLDER

BRUSH HOLDER & BRUSH, heat sink (Includes brush SPRINGS)

1шт.

1957501

SCREW

SCREW, Holder attaching

2шт.

9419392

SPARE PART WASHER, Holder screw spg

2шт.

10

1964117

SPRING

SPRING, (order 1-1964682, PACKAGE) (NSS)

1шт.

11

BRUSH, (order 1-1964682 PACKAGE) (NSS)

1шт.

12

1958565

ROTOR

ROTOR, generator

1шт.

1915172

NUT

NUT, Drive end shaft

1шт.

1941978

WASHER

WASHER, Drive end shaft

1шт.

13

1959381

COIL

STATOR, generator (Includes 1959532 CLIPS)

1шт.

14

1959532

CABLE STRAP/Retired CLIP, stator lead terminal

3шт.

15

1959991

COLLAR

COLLAR, drive end shaft outside

1шт.

16

1959917

FUNNEL

FRAME, drive end

1шт.

1956975

BOLT

BOLT, Frame through

4шт.

17

1964353

DIODE

PACKAGE, positive diode

3шт.

18

1959834

TERMINAL STRIP

PACKAGE, diode junction terminal

3шт.

453434

NUT

NUT, Junction terminal

3шт.

9419392

SPARE PART WASHER, Junction terminal spg

2шт.

19

1959832

TERMINAL STRIP

PACKAGE, battery terminal

1шт.

20

904751

BEARING

BEARING, drive end ball

1шт.

21

1912008

FELT

GASKET, brg retainer plate

1шт.

22

1963139

COLLAR CLAMP

COLLAR, drive end shaft inside

1шт.

23

1955494

PLATE

PLATE, drive end brg retainer

1шт.

1965104

HOSE

SCREW, Plate attaching

3шт.
