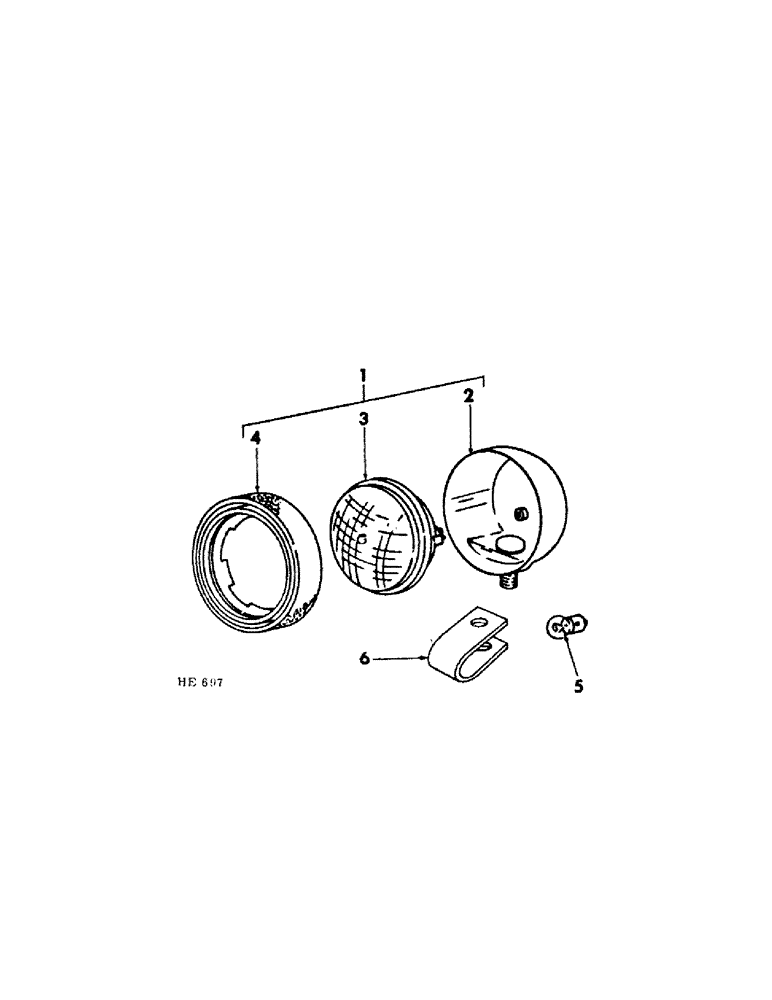

Запчасти Case IH 210 (G-07) - ELECTRICAL SYSTEM, HEAD LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

1

599286R91

LAMP

LIGHT ASSY, head (Hobbs) (opt w/823029C91, LIGHT ASSY) composed of: (1) housing (NSS), (1) lamp 390756R91, (1) retainer 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

823029C91

LIGHT

ASSY, head (Dominion Auto) (opt w/599286R91, LIGHT ASSY) composed of: (1) housing (NSS), (1) lamp 390756R91, (1) retainer 823031C1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Not part of light.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

Not part of light.

1шт.

1

599287R91

LIGHT ASSY, tail and stop composed of: (1) housing (NSS), (1) lamp 676357R91, (1) lamp 454646, (1) retainer 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Not part of light.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of light.

1шт.

2

HOUSING, light (Order 599286R91 or 823029C91 for Head Light or 599287R91 for Tail Light)

1шт.

Not part of light.

1шт.

3

390756R91

LAMP

head light

2шт.

3

676357R91

LAMP

tail light

1шт.

4

676078R1

RETAINER

head and tail light (For use w/599286R91 and 599287R91 LIGHT ASSY)

1шт.

4

823031C1

RETAINER

head light (For use w/823029C91, LIGHT ASSY)

1шт.

5

454646

LAMP,C6, #1073, 12.8V

tail light

1шт.

6

561916R1

CLAMP, head light

2шт.
