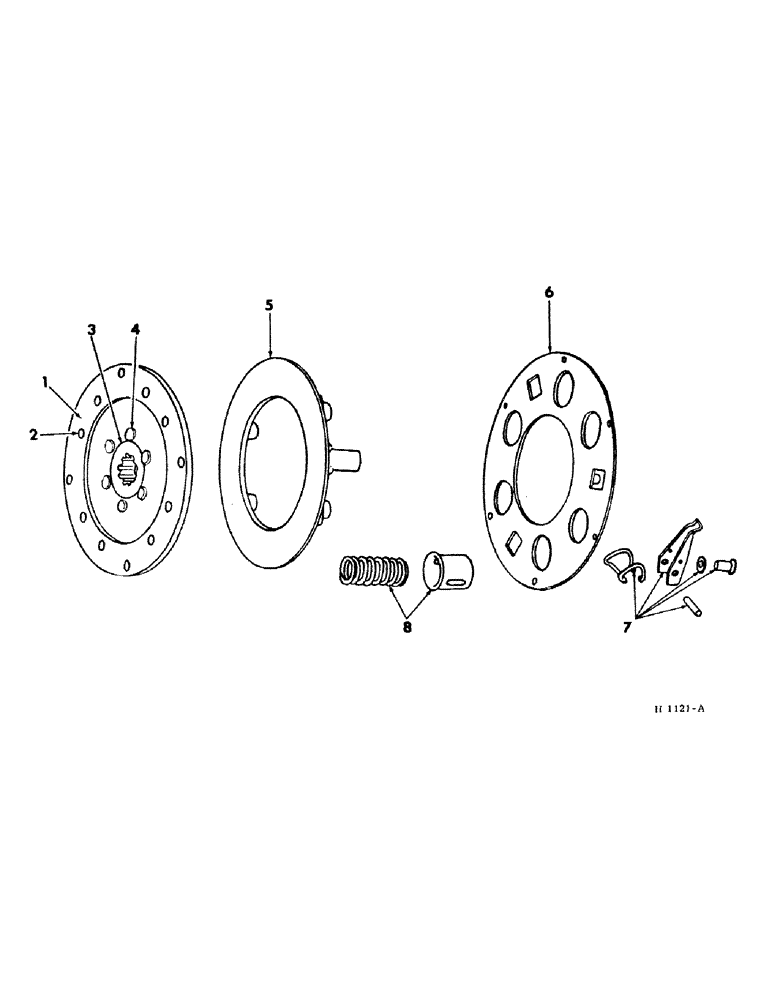

Запчасти Case IH 210 (B-14) - POWER TRAIN, PLANETARY CLUTCH AND PLATE (03) - POWER TRAIN

618246R92

LARGE PLATE

PLATE ASSY, clutch pressure (Includes all parts listed unless otherwise noted)

2шт.

1

618244R91

FACING, CLUTCH

PACKAGE, clutch plate facing service composed of: (2) facing (NSS), (12) rivet 61176V

1шт.

Not part of 618246R92.

1шт.

2

61176V

RIVET

clutch plate facing

12шт.

Not part of 618246R92.

1шт.

3

619961R91

DISC

PLATE & HUB ASSY, clutch composed of: (1) hub (NSS), (1) package 618244R91, (6) rivet 115323

1шт.

Not part of 618246R92.

1шт.

4

115323

RIVET, 5/16 x 7/16" f-hd hub connecting

6шт.

Not part of 618246R92.

1шт.

5

PLATE, clutch pressure (For service order 1-618246R92, PLATE ASSY) (NSS)

1шт.

6

PLATE, clutch back (For service order 1-618246R92, PLATE ASSY) (NSS)

1шт.

7

825166C1

KIT

PACKAGE, clutch lever composed of: (3) lever (NSS), (3) nut 114494, (3) screw (NSS), (3) pin (NSS), (3) spring (NSS), (3) pin 103372, (3) washer (NSS)

1шт.

8

825167C1

KIT

pressure spring and cup composed of: (6) spring (NSS), (6) cup (NSS)

1шт.
