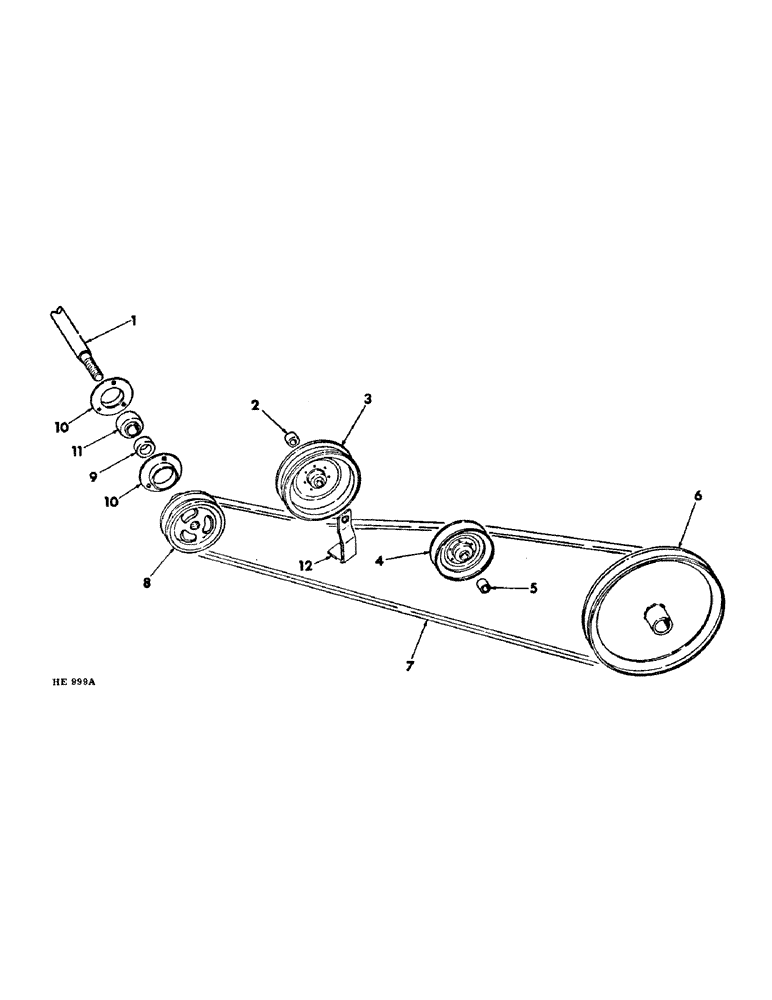

Запчасти Case IH 210 (B-13) - POWER TRAIN, CHASSIS PLATFORM DRIVE RIGHT HAND (03) - POWER TRAIN

1

591870R2

SHAFT, main drive counter

1шт.

2

591729R1

SPACER, tightener pulley

1шт.

3

565441R91

BEARING

PULLEY, drive belt rear tightener

1шт.

598821R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

BOLT, 5/8 x 2-3/4" crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

4

574051R91

PULLEY

drive belt front idler

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

5

610397R1

SPACER, idler pulley

1шт.

6

597718R1

PULLEY, platform drive (For service parts refer to "PLATFORM DRIVE COUNTERSHAFT" Section Q for machines Prior to Serial No. 3700) (For machines Serial No. 3700 and Since refer to "PLATFORM DRIVE SHAFT AND KNIFE PITMAN" Section Q)

1шт.

7

591878R1

V-BELT,0.88" W x 139.40" L

Platform drive 0.88" W x 139.40" L

1шт.

8

591877R1

PULLEY, platform drive (For pulley for Hay Conditioner Prior to Serial No. 3700 refer to "Hay Conditioner Drive Parts" Section P)

1шт.

9

455104R11

COLLAR

W/SCREW, bearing locking (Includes 1-102592 SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" cup-pt set

1шт.

10

617863R1

FLANGED BEARING

TTE, main drive counter

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

main drive counter

1шт.

12

826070C1

GUIDE, platform drive belt

1шт.
