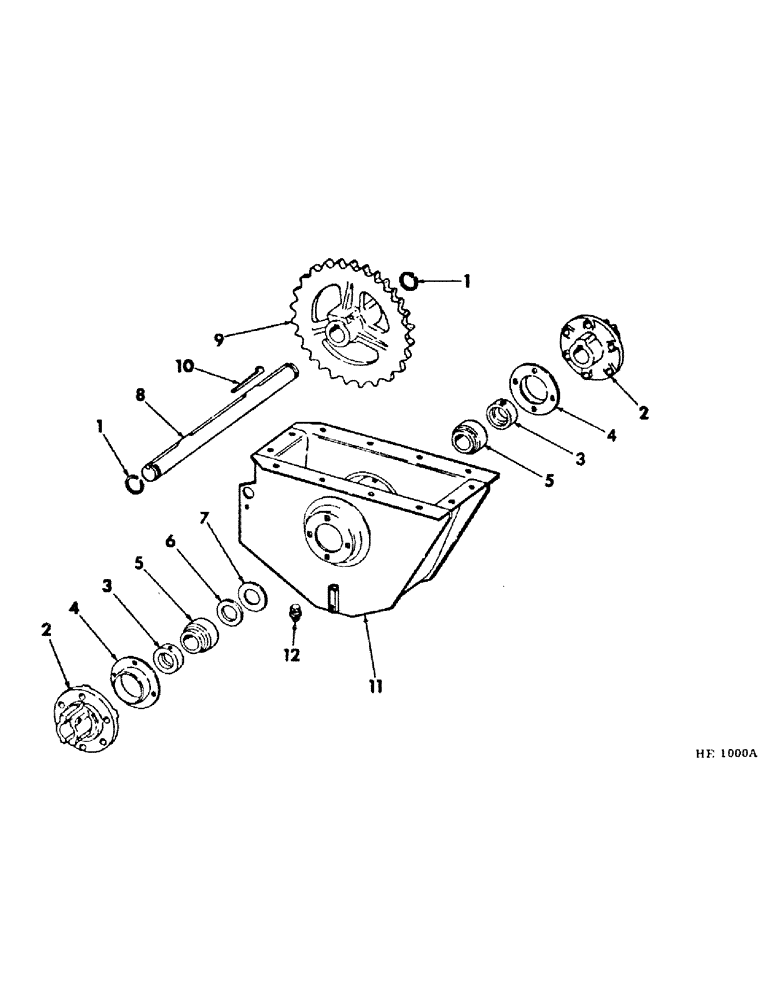

Запчасти Case IH 210 (B-12) - POWER TRAIN, MAIN WHEEL AXLE AND HOUSING (03) - POWER TRAIN

1

698553R1

SNAP RING,#175, Ext

Ring, Snap, , hub #175, Ext

4шт.

2

591817R3

HUB

main wheel drive

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

R15092

KEY,3/8" Sq x 2 3/4", Par

3/8 sq x 2-3/4"

4шт.

3

582816R11

COLLAR

W/SCREW, main wheel axle bearing locking (Includes 1-102592 SCREW)

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls-cup-pt set

4шт.

4

599092R2

FLANGE

TTE, main wheel axle bearing (Prior to Serial No. 2888)

4шт.

4

599092R2

FLANGE

TTE, main wheel axle bearing (Serial No. 2888 and Since)

8шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg (Prior to Serial No. 2888)

16шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg (Serial No. 2888 and Since)

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

5

594396R91

BALL BEARING,1.7507" ID x 3.3465" OD x 1.6875"

main wheel axle

4шт.

6

609376R1

WASHER

1-25/32 x 2-1/2 x 11 ga axle

2шт.

7

22768R1

WASHER

1-25/32 x 2-3/4 x 18 ga

1шт.

8

825104C1

AXLE, main wheel

2шт.

9

825102C11

SPROCKET ASSY, main wheel drive (Includes 4-223815 BOLTS and 4-225861 NUTS)

2шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

5/8 x 3" Type 8

4шт.

225861

NUT,5/8"-18, G8

4шт.

10

Q3958

KEY,Gib, 3/8" Sq x 4 1/4"

3/8 x 4-1/2" gib-hd

2шт.

11

825105C2

HOUSING

final drive axle (Prior to Serial No. 2888) (For service order 1-826887C1 HOUSING, 4-599092R2 FLANGETTE and 8-485734R1 BOLTS)

2шт.

11

826887C1

HOUSING

final drive axle (Serial No. 2888 and Since)

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

22шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

22шт.

12

663002R91

BREATHER

FITTING, relief valve breather (opt. w/826222C1 FITTING)

2шт.

12

826222C1

FITTING

relief valve breather (opt. w/663002R91 FITTING)

2шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe Tee Hex Soc, 1/8"-27

2шт.
