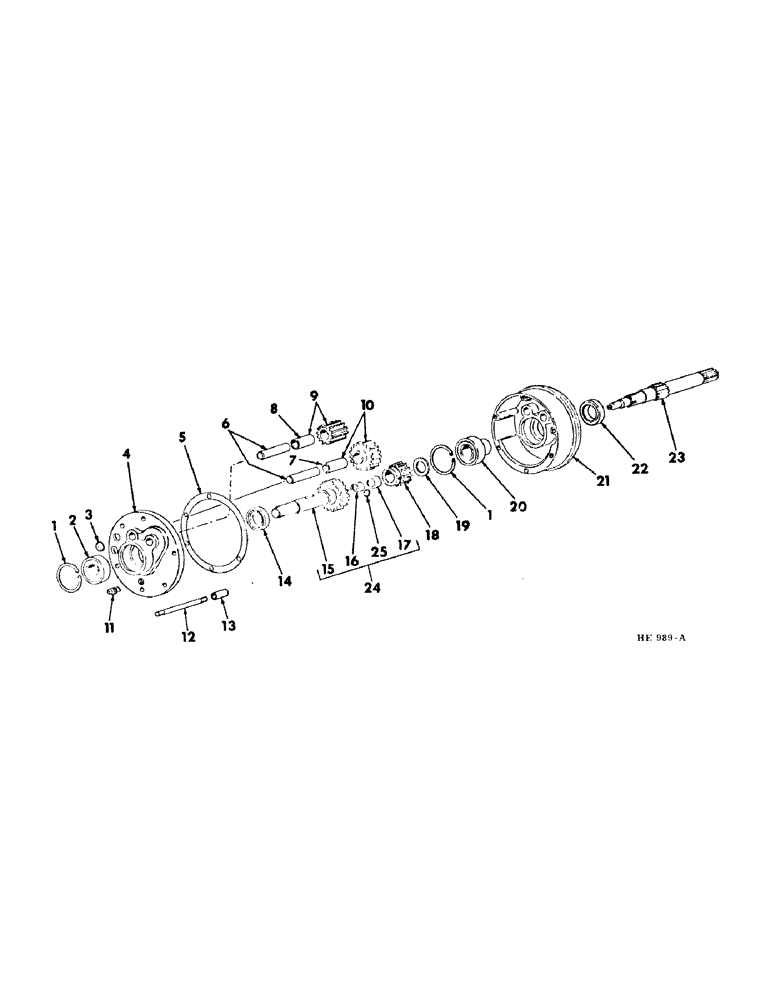

Запчасти Case IH 210 (B-10) - POWER TRAIN, PLANETARY HOUSING (03) - POWER TRAIN

1

616518R1

SNAP RING,#283, 2.954, Int, Spiral

RING, cover bearing retaining

4шт.

2

117510R91

BEARING, BALL

BEARING, housing cover

2шт.

3

172450

PLUG, expansion

4шт.

4

599116R11

COVER ASSY, housing composed of: (1) housing (NSS), (1) plug 618465R91, (2) plug 172540

2шт.

5

617955R1

SHIM

housing cover (use as req'd)

2шт.

6

599118R1

PIN, planetary gear shaft

4шт.

7

591890R1

BUSHING, planetary idler gear

2шт.

8

591889R1

BUSHING, planetary drive gear

2шт.

9

591892R11

GEAR ASSY, planetary drive (Includes 1-591889R1 BUSHING)

2шт.

10

591893R11

GEAR ASSY, planetary idler gear (Includes 1-591890R1 BUSHING)

2шт.

11

618465R91

MAGNETIC PLUG

PLUG, magnetic

2шт.

12

599117R1

STUD, planetary transmission

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

13

591887R1

SPACER, clutch

12шт.

14

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Oil, Housing Cover 1.752" ID x 2.503" OD x .689

2шт.

15

GEAR, planetary output (For service order 1-599111R21, GEAR ASSY) (NSS)

2шт.

16

599119R91

BEARING

input shaft

2шт.

17

599120R91

ROLLER BEARING,0.875" ID x 1.188" OD x 0.75"

BEARING, input shaft

2шт.

18

591884R1

GEAR, 17T transmission input

2шт.

113879

KEY

5/16 x 1-1/4" Woodruff

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

19

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

20

591895R91

BALL BEARING,1.313" ID x 2.8346" OD x 1.35"

planetary housing

2шт.

21

599115R1

HOUSING, planetary gear

2шт.

22

935869R92

SEAL,44.35mm ID x 66.72mm OD x 12.7mm Thk

SEAL, planetary housing oil

2шт.

23

599103R1

SHAFT, input LH (Shown)

1шт.

23

599106R1

SHAFT

input RH

1шт.

24

599111R21

GEAR ASSY, planetary output composed of: (1) gear (NSS), (1) ring 825494C1, (1) bearing 599119R91, (1) bearing 599120R91

1шт.

25

825494C1

RING

inner bearing retaining (For use w/gear output with retaining groove)

2шт.
