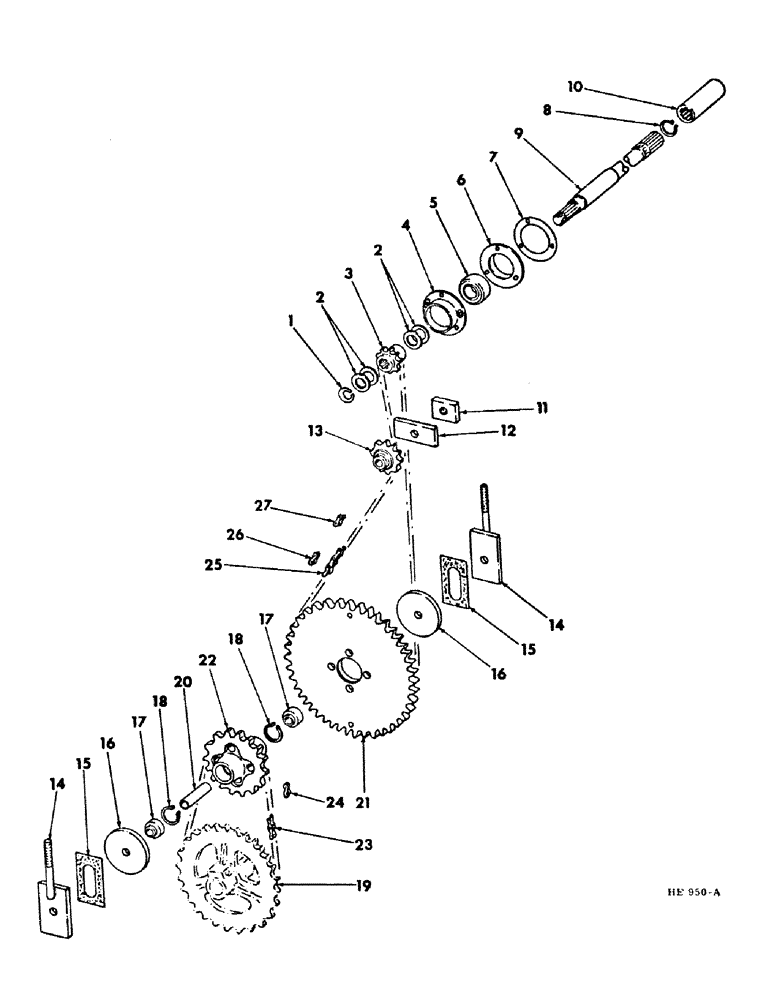

Запчасти Case IH 210 (B-06) - POWER TRAIN, FINAL DRIVE (03) - POWER TRAIN

1

313675R1

RING, SNAP,#106, Ext

sprocket #106, Ext

2шт.

2

595201R1

WASHER

final drive shaft

8шт.

3

596017R1

SPROCKET ASSY.

SPROCKET, 11T drive shaft driven (Slow Speed)

2шт.

3

595198R11

SPROCKET ASSY.

SPROCKET, 14T drive shaft driven (Regular Speed)

2шт.

4

595127R11

RETAINER, bearing

2шт.

5

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

final drive shaft

2шт.

6

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, bearing

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

595196R1

GASKET

bearing flangette

2шт.

8

152450R1

SNAP RING,#125, Ext

Ring, Snap, , coupling #125, Ext

2шт.

9

599073R1

SHAFT

final drive

2шт.

10

599072R1

COUPLING

final drive shaft

2шт.

11

599892R1

BAR, final drive tightener sprocket

2шт.

12

596026R2

ADJUSTER, tightener sprocket

2шт.

13

610538R92

SPROCKET ASSY.

SPROCKET, final drive tightener upper

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

599895R1

ADJUSTER ASSY, main wheel drive sprocket chain (Includes 1-599896R1, GASKET)

4шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga

4шт.

271501

SOCKET

NUT, 7/16"

8шт.

15

599896R1

GASKET, adjuster

4шт.

16

599894R1

WASHER, main wheel drive sprocket

4шт.

17

614640R91

BEARING, main wheel drive sprocket (opt to use 666624R91 or 611050R91 BEARING)

4шт.

17

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

main wheel drive sprocket (opt to use 614640R91 or 611050R91 BEARING)

4шт.

17

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

main wheel drive sprocket (opt to use 614640R91 or 666624R91 BEARING)

4шт.

18

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , drive sprocket 1.562", Int, #156

4шт.

19

SPROCKET, main wheel drive (For service parts refer to " MAIN WHEEL AXLE AND HOUSING")

2шт.

20

599893R1

BUSHING, main wheel drive sprocket

2шт.

21

599079R1

SPROCKET, wheel drive 70T

2шт.

181709

SCREW,Hex, 1/2" - 20 x 1/2"

BOLT, 1/2 x 2-1/2"

8шт.

120371

NUT,1/2"-20, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

22

599080R1

SPROCKET ASSY.

SPROCKET, main wheel drive 11T

2шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 x 6-1/2"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

599081R91

CHAIN (AG)

CHAIN, main wheel drive special (Includes 1-588564R11, LINK)

2шт.

24

588564R11

LINK

chain connecting

2шт.

25

CHAIN, final drive upper (Prior to Serial No. 560) (For service order 1-1791-D 5/8" pitch standard 10 ft. chain reduce to 101 Links and add 1-1310-D, connecting LINK and 1-1309-D, roller LINK)

2шт.

25

CHAIN, final drive upper (Serial No. 560 and Since) (For service order 1-1791-D 5/8" pitch standard 10 ft. chain reduce to 101 links and add 1-1310-D, connecting LINK)

2шт.

26

1310D

LINK

connecting

2шт.

27

1309D

LINK

roller (Prior to Serial No. 560)

2шт.
