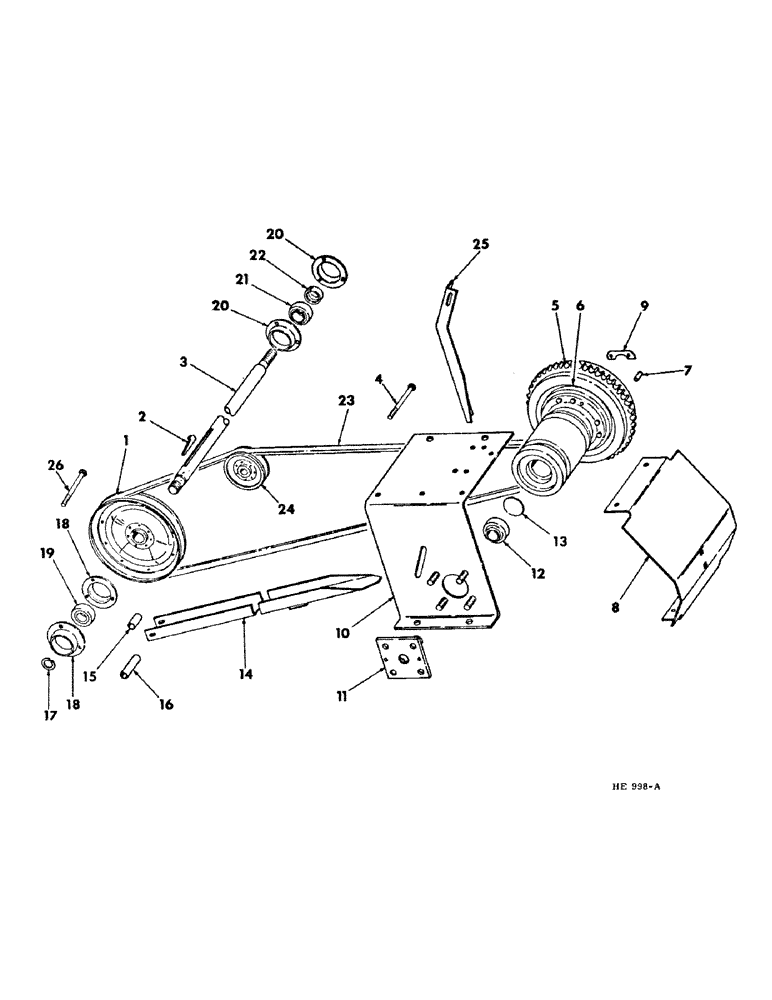

Запчасти Case IH 210 (B-04) - POWER TRAIN, CHASSIS PLATFORM DRIVE WITH ENGINE FLYWHEEL AND PTO (03) - POWER TRAIN

1

825111C1

PULLEY, countershaft platform driven

1шт.

2

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" gib-hd

1шт.

3

591870R2

SHAFT, main drive counter

1шт.

4

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2" belt guide (Serial No. 1595 and Since)

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

13456VA

GEAR

flywheel ring 111T

1шт.

6

825115C92

PULLEY ASSY, flywheel and PTO composed of: (1) pulley (NSS), (1) flywheel (NSS), (1) gear 13456VA, (8) bolt 180081, (8) washer 120214, (2) pin 20024R1

1шт.

7

20024R1

PIN

3/8" dowel

2шт.

8

825195C1

SHIELD, P.T.O. rear (Prior to Serial No. 3700)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

614723R1

LOCK, flywheel lock

2шт.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

3/8-NF x 1-1/2" Type 8

4шт.

10

599879R4

SUPPORT, P.T.O. housing

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

11

595455R92

PIVOT, P.T.O. pulley bearing

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

12

595454R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

BEARING, P.T.O. pulley

1шт.

13

172601

PLUG

P.T.O. pulley expansion

1шт.

14

825108C1

GUARD, platform drive belt (Prior to Serial No. 3700 Shown)

1шт.

14

823096C1

GUARD, platform drive belt (Serial No. 3700 and Since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

189307

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

3/8 x 5-1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

23929S

SPACER,3/8" Pipe x 1 7/8"

guard

1шт.

16

621662R1

SPACER, guard

1шт.

189307

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

3/8 x 5-1/2"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

301020R1

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

18

591873R1

FLANGE

TTE, countershaft bearing LH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

19

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

main countershaft LH

1шт.

20

617863R1

FLANGED BEARING

TTE, countershaft bearing RH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

countershaft RH

1шт.

22

455104R11

COLLAR

W/SCREW bearing locking RH (Includes 1-102592 SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

23

592038R1

BELT

platform drive

1шт.

24

662959R91

PULLEY ASSY.

PULLEY, platform drive idler

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

25

599882R1

ANGLE, belt guide bolt (Prior to Serial No. 1595)

1шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

BOLT, 7/16 x 3"

1шт.

21763R1

WASHER

15/32 x 3/4 x 16 ga

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

26

189307

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

3/8 x 5-1/2" belt guide

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
