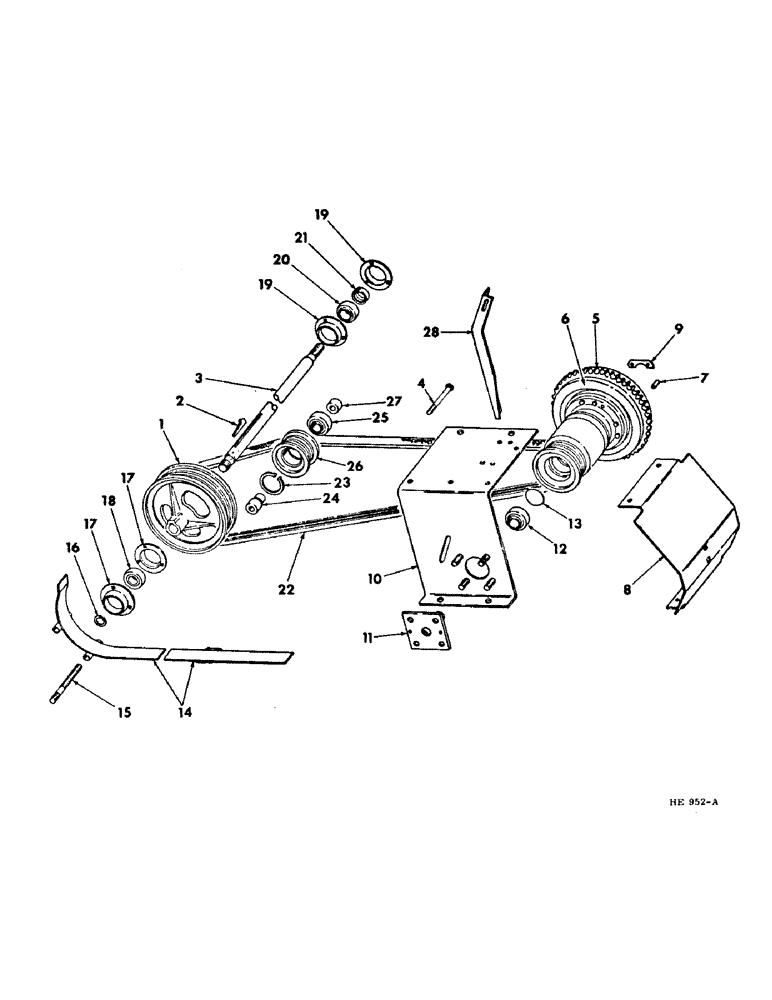

Запчасти Case IH 210 (B-02) - POWER TRAIN, CHASSIS PLATFORM DRIVE WITH ENGINE FLYWHEEL AND PTO FOR USE WITH HAY CONDITIONER (03) - POWER TRAIN

1

599883R1

PULLEY, countershaft platform driven

1шт.

2

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2" gib-hd

1шт.

3

591870R2

SHAFT, main drive counter

1шт.

4

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2" belt guide (Serial No. 1595 and Since)

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

13456VA

GEAR

flywheel ring 111T

1шт.

6

599877R92

PULLEY ASSY, flywheel and P.T.O. composed of: (1) pulley (NSS), (1) flywheel (NSS), (1) gear 13456VA, (8) bolt 180081, (8) washer 120214, (2) pin 20024R1

1шт.

7

20024R1

PIN

3/8" dowel

2шт.

8

825195C1

SHIELD, P.T.O. rear

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

614723R1

LOCK, flywheel bolt

2шт.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

3/8-NF x 1-1/2" Type 8

4шт.

10

599879R4

SUPPORT, PTO housing

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

11

595455R92

PIVOT, P.T.O. pulley bearing

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

12

595454R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

BEARING, P.T.O. pulley

1шт.

13

172601

PLUG

P.T.O. pulley expansion

1шт.

14

599131R1

GUARD, platform drive belt

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

599136R1

STUD, guard support

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

16

301020R1

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

17

591873R1

FLANGE

TTE, countershaft bearing LH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

591871R91

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

main countershaft LH

1шт.

19

617863R1

FLANGED BEARING

TTE, countershaft bearing RH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 " crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

platform drive countershaft RH

1шт.

21

455104R11

COLLAR

W/SCREW, bearing locking

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

22

599881R1

V-BELT,0.49" W x 95.00" L, 3 Ribs

Platform drive 0.49" W x 95.00" L, 3 Ribs

1шт.

23

512889R1

RING

pulley retaining

1шт.

24

592062R1

BUSHING

idler pulley inner

1шт.

25

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler pulley (opt to use 608697R91, BEARING)

1шт.

25

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

idler pulley (opt to use 584148R91, BEARING)

1шт.

26

599884R1

PULLEY, platform drive idler

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4" Type 1 crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

594176R1

BUSHING, idler pulley outer

1шт.

28

599882R1

ANGLE, belt guide (Prior to Serial No. 1595)

1шт.

180162

SCREW,Hex, 7/16" - 14 x 3 1/2", Gr 5

BOLT, 7/16 x 3"

1шт.

21763R1

WASHER

15/32 x 3/4 x 16 ga

2шт.

271501

SOCKET

NUT, 7/16"

2шт.
