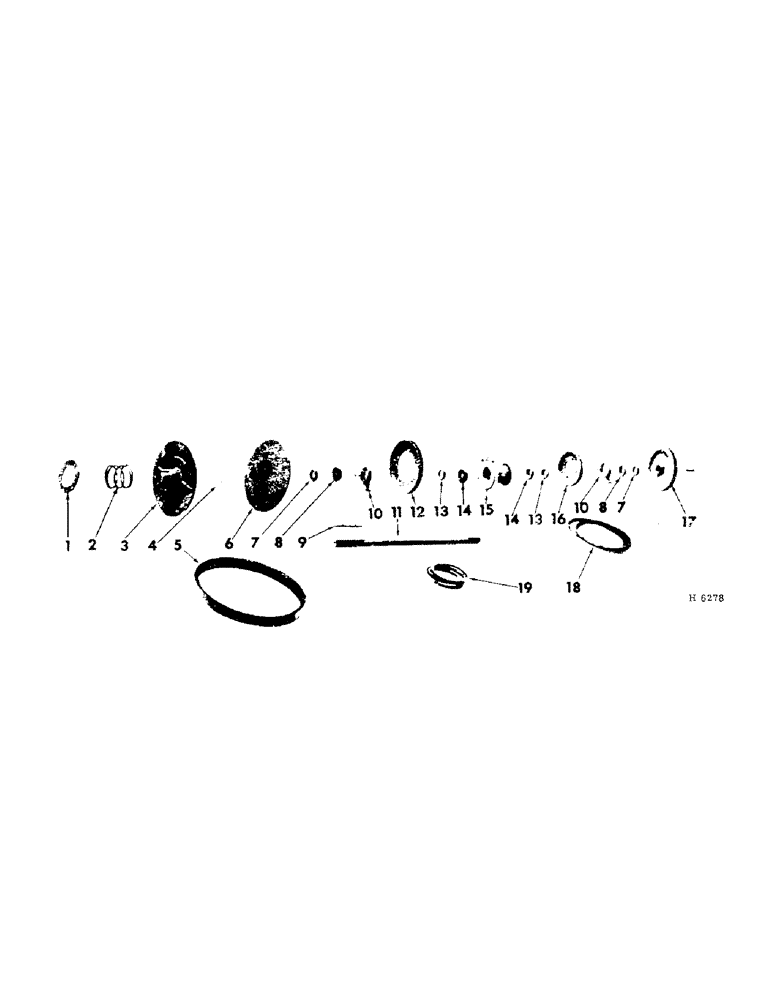

Запчасти Case IH 201 (A-067) - MAIN DRIVE COUNTERSHAFT (14) - MAIN GEARBOX & DRIVE

1

611873R1

PLATE, adjustable pulley spg

1шт.

600351R1

BOLT, pulley spg

3шт.

Prior to machine serial no. H3897

1шт.

608491R1

BOLT,Carriage, 3/8" - 16 x 6"

pulley spg

3шт.

Machine serial no. H3897 & up

1шт.

451060

NUT, 3/8" special lk

3шт.

NUT, 3/8"

3шт.

2

SPRING, adjustable pulley (order 1-608490R1, spring & 3-608491R1, bolt)

1шт.

Prior to machine serial no. H3897

1шт.

2

608490R1

SPRING, adjustable pulley

1шт.

Machine serial no. H3897 & up

1шт.

3

613916R1

PULLEY, outer half driven

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

SCREW, 7/16 x 1/2" hdls cup-pt set

2шт.

4

617929R1

O-RING, adjustable driven pulley

1шт.

5

609998R1

V-BELT,1.75" W x 59.75" L

Traction drive 1.75" W x 59.75" L

1шт.

6

613917R2

PULLEY, inner half driven

1шт.

600351R1

BOLT, pulley spg

3шт.

Prior to machine serial no. H3897

1шт.

608491R1

BOLT,Carriage, 3/8" - 16 x 6"

pulley spg

3шт.

Machine serial no. H3897 & up

1шт.

451060

NUT, 3/8" special lk

3шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FITTING, 1/8 - 30deg. elbow

1шт.

NUT, 3/8"

3шт.

7

517645R11

COLLAR

W/SCREW, bearing

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

8

611583R91

BALL BEARING

BEARING, countershaft support

1шт.

9

613927R1

KEY, adjustable driven pulley

1шт.

191209

SCREW,#10 - 24 x 3/8"

no. 10 x 3/8" hex-soc cap

2шт.

618576R1

LK-WASHER, no. 10 shakeproof

2шт.

10

611700R2

SUPPORT

HOUSING, countershaft brg

2шт.

BOLT W/NUT, 1/2 x 1-3/8" mach

4шт.

LK-WASHER, 1/2"

4шт.

11

613926R1

COUNTERSHAFT, main drive

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

3/8 x 1-1/8" hv-coiled-spg

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

12

553605R91

PULLEY

hub drive

1шт.

BOLT W/NUT, 5/16 x 7/8" mach

5шт.

LK-WASHER, 5/16"

5шт.

13

COLLAR W/SCREW, brg locking (for skf collar lc-106 only order 1-611921R91, bearing & 1-517645R91, collar)

2шт.

13

517645R11

COLLAR

W/SCREW, brg locking (for use w/611921R91, bearing)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

14

BEARING, hub (for skf bearing, 1716207106 only - order 1-611921R91, bearing & 1-517645R11, collar)

2шт.

14

611921R91

BALL BEARING

hub (for use w/517645R11, collar)

2шт.

15

611696R2

HUB, countershaft pulley

1шт.

BOLT W/NUT, 5/16 x 7/8" mach

5шт.

LK-WASHER, 5/16'

5шт.

16

612459R2

PULLEY, 665 RPM platform drive

1шт.

16

611881R1

PULLEY, 600 RPM platform drive

1шт.

BOLT, 5/16 x 1-3/8" mach

4шт.

LK-WASHER, 5/16"

4шт.

17

611145R1

PULLEY, transmission normal drive

1шт.

17

608485R1

PULLEY, transmission slow drive

1шт.

Q3950

KEY,Gib, 3/8" Sq x 2 1/4"

3/8 x 2-1/4" gib-hd

1шт.

18

611930R1

V-BELT,0.63" W x 65.10" L

Countershaft drive 0.63" W x 65.10" L

1шт.

19

612460R1

V-BELT,0.60" W x 112.00" L

665 RPM, Platform drive (Prior to serial no. H6473) 0.60" W x 112.00" L

1шт.

19

611929R1

BELT,0.60" W x 109.00" L

V-BELT, , 600 RPM platform drive (Machine serial no. H6473 & up) 0.60" W x 109.00" L

1шт.
