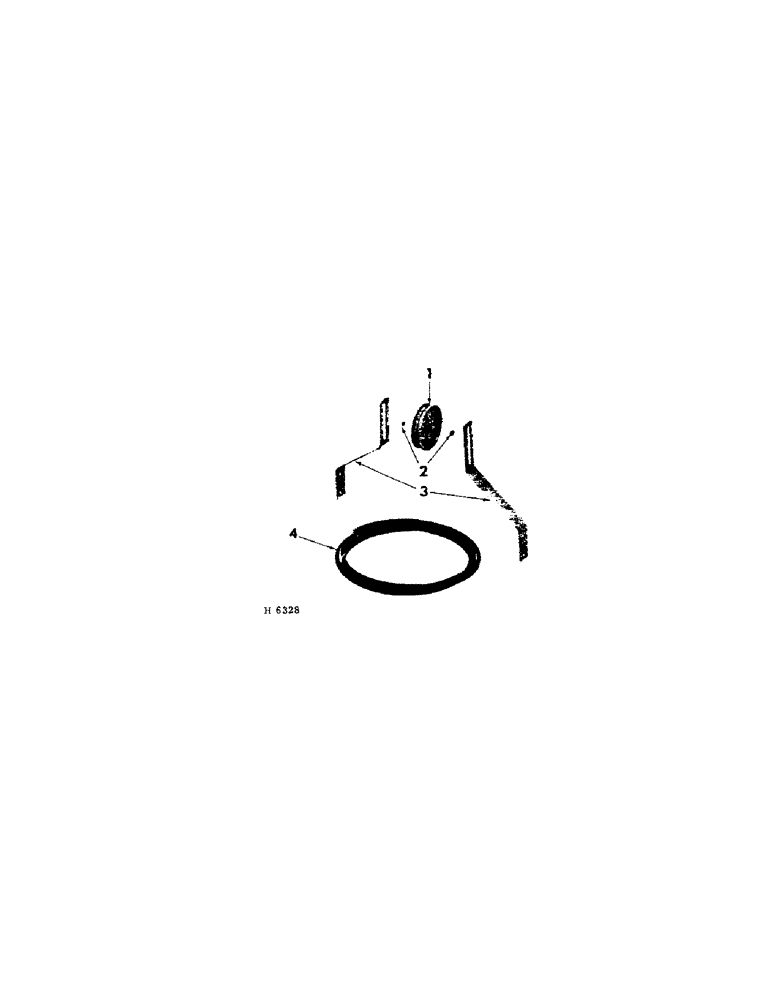

Запчасти Case IH 201 (A-066[A]) - TRANSMISSION DRIVE BELT TIGHTENER (14) - MAIN GEARBOX & DRIVE

1

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

drive belt idler

1шт.

Prior to machine serial no. H3780

1шт.

BOLT W/NUT, 1/2 x 3" crg

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

LK-WASHER, 1/2"

1шт.

1

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

drive belt idler

1шт.

Machine serial no. H3780 & up

1шт.

BOLT, 5/8 x 3-3/4" type 2 cd-pltd crg

1шт.

NUT, 5/8" cd-pltd

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

LK-WASHER, 5/8" cd-pltd

1шт.

2

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

drive belt idler

1шт.

Prior to machine serial no. H3780

1шт.

2

650482R1

SPACER, drive belt idler

1шт.

Machine serial no. H3780 & up

1шт.

3

611810R1

ARM, tightener

2шт.

Prior to machine serial no. H3780

1шт.

3

608486R1

ARM, tightener

2шт.

Machine serial no. H3780 & up

1шт.

BOLT W/NUT, 7/16 x 7/8" crg

4шт.

LK-WASHER, 7/16"

4шт.

4

611932R2

V-BELT,0.88" W x 79.10" L

Drive (Normal speed) 0.88" W x 79.10" L

1шт.

4

610406R1

V-BELT,0.88" W x 76.20" L

Drive (Slow speed) 0.88" W x 76.20" L

1шт.
