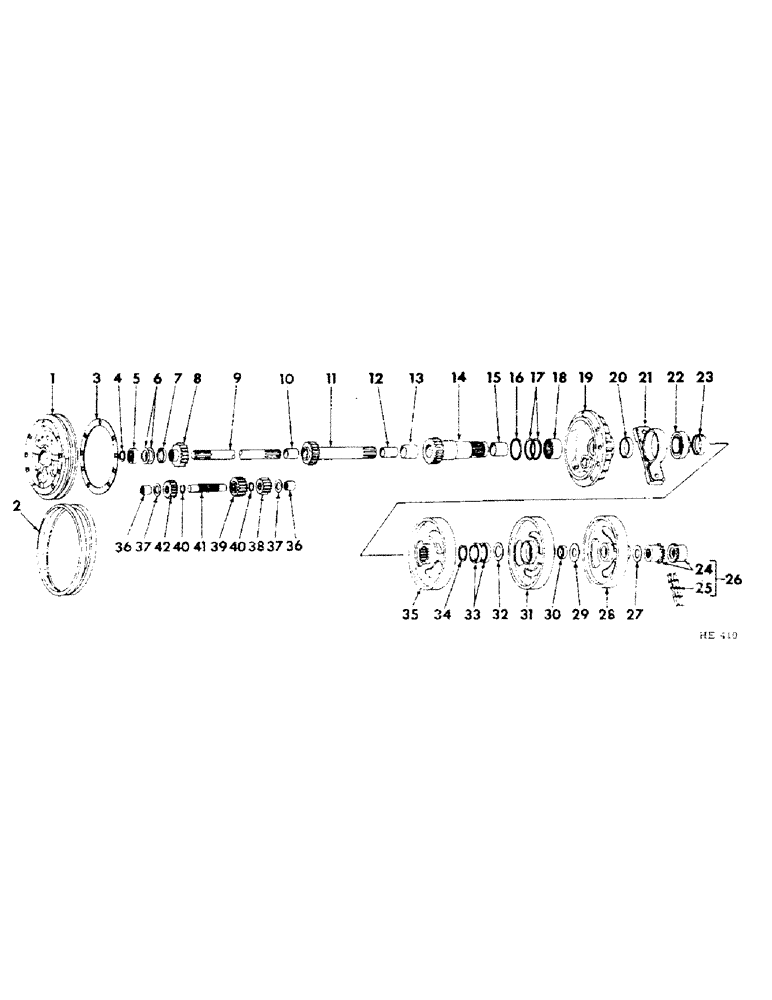

Запчасти Case IH 201 (A-065) - PLANETARY TRANSMISSION GEAR BOX (14) - MAIN GEARBOX & DRIVE

1

611710R1

SPIDER, gear box

1шт.

2

611932R2

V-BELT,0.88" W x 79.10" L

Drive (Normal speed) 0.88" W x 79.10" L

1шт.

2

611406R1

BELT, drive (slow speed)

1шт.

3

611981R1

GASKET, transmission gear case

1шт.

4

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

5

359950R91

NEEDLE BEARING

BEARING, output shaft needle

2шт.

6

612686R1

THRUST WASHER

output gear thrust

4шт.

7

232001R91

BLOCK

BEARING, output gear thrust

2шт.

8

613231R1

GEAR, 28T output shaft

2шт.

9

613232R1

SHAFT, transmission output

2шт.

10

611935R1

BUSHING, forward gear inner

2шт.

11

611960R11

GEAR, 26T forward drive (includes 611935R1 & 612665R1, bushings)

2шт.

12

612665R1

BUSHING, forward gear outer

2шт.

13

611936R1

BUSHING, reverse gear inner

2шт.

14

611961R11

GEAR, 29T reverse drive (includes 611936R1 & 612666R1, bushings)

1шт.

15

612666R1

BUSHING, reverse gear outer

2шт.

16

374011R91

THRUST BEARING

reverse gear thrust

2шт.

17

612685R1

THRUST WASHER

WASHER, reverse gear thrust

4шт.

18

612463R91

BEARING, reverse gear needle

2шт.

19

611711R1

COVER, transmission gear box

2шт.

141268

PIN

7/16 x 1-1/2" dowel

2шт.

618465R91

MAGNETIC PLUG

PLUG, 1/2" sq-hd magnetic

2шт.

172558

PLUG,Exp, 1 1/4"

1/4" expansion

2шт.

BOLT W/NUT, 3/8 x 4-1/2" type 2

6шт.

BOLT W/NUT, 3/8 x 5-1/4" type 2

2шт.

LK-WASHER, 3/8"

8шт.

20

612462R91

OIL SEAL

reverse gear

2шт.

21

611698R1

SUPPORT, transmission brg

2шт.

BOLT W/NUT, 1/2 x 1-5/8" mach

4шт.

LK-WASHER, 1/2"

4шт.

22

612022R91

BALL BEARING

gear box

2шт.

23

612023R11

COLLAR ASSY.

COLLAR, box brg locking (includes 139063, screw)

2шт.

139063

SCREW, 3/8 x 5/16" hdls cup-pt set

2шт.

24

611980R1

PINION

SPROCKET, 14T coupling

4шт.

25

611979R91

CHAIN (AG)

CHAIN, coupling (includes 618249R91, coupler)

2шт.

26

611978R91

COUPLING, sprocket (includes parts within bracket)

2шт.

27

Q132

WASHER

1-5/32 x 1-3/4 x 22 ga

1шт.

28

611714R1

DRUM, brake

2шт.

29

614597R1

WASHER, output shaft

2шт.

30

612693R91

OIL SEAL

output shaft

2шт.

31

611712R2

DRUM, forward

2шт.

32

614596R1

WASHER, forward drive gear

2шт.

33

614592R91

OIL SEAL

OIL SEAL, reverse gear

4шт.

34

300026R1

RING

oil seal retaining

2шт.

35

611713R1

DRUM, reverse

2шт.

36

142928A

BEARING, planet gears shaft

4шт.

37

611972R1

WASHER

planet gears shaft

4шт.

38

611953R1

GEAR, 18T planet

2шт.

39

611954R1

GEAR, 21T planet

2шт.

40

454319R1

RING

retaining

6шт.

41

611952R1

SHAFT

planet gears

2шт.

42

611951R1

GEAR, 19T planet

2шт.
