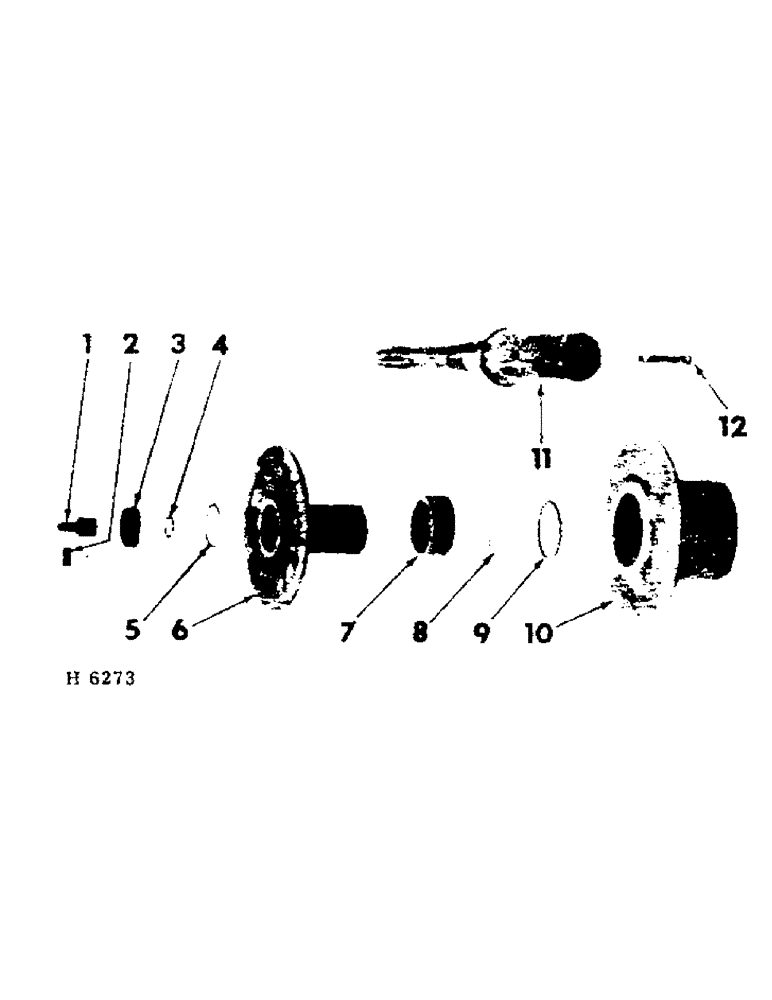

Запчасти Case IH 201 (A-063) - VARIABLE SPEED PULLEY (14) - MAIN GEARBOX & DRIVE

1

611692R1

STUD, pulley brg, Serial Range: (prior-H2065)

1шт.

1

614741R1

STUD, pulley brg (H2065 & up)

1шт.

2

611721R1

PIN, brg stud pivot

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

3

ST519

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING, pulley (prior to H2065)

1шт.

3

117510R91

BEARING, BALL

BEARING, pulley (H2065 & up)

1шт.

4

616516R1

OIL SEAL

RING, brg stud retaining

1шт.

5

616518R1

SNAP RING,#283, 2.954, Int, Spiral

RING, pulley brg retaining

1шт.

6

613919R1

PULLEY, variable speed driver half 5/16"-NF lub-ftg

1шт.

7

618239R1

BUSHING, driver pulley

1шт.

8

618989R1

RING, inner bushing retaining

1шт.

9

618575R1

RING

O-RING, drive pulley

1шт.

10

611709R1

PULLEY, speed driver half outer

1шт.

11

HUB & PTO SHAFT, pulley barrel (prior to serial no. H1922, order 1-607424R91, gas engine pkg or 1-607425R91, diesel engine pkg)

1шт.

11

607180R91

BARREL, pto shaft & hub (includes 657205R1, key & 139063, screw) (machine serial no. H1922 & up)

1шт.

657205R1

KEY, engine shaft 3/8" Sq x 3 1/4", Par

1шт.

139063

SCREW, 3/8 x 5/16" hdls cup-pt set

1шт.

12

613920R2

KEY, driver pulley hub

2шт.

191209

SCREW,#10 - 24 x 3/8"

no. 10 x 3/8" hex-soc-hd

4шт.

618576R1

LK-WASH, no. 10 shakeproof

4шт.

607424R91

PACKAGE, pto shaft service (C-135 engines prior to machine serial no. H1922) composed of: (1) barrel 607180R91, (1) hub 614436R2, (2) key 613920R2, (2) lock 614723R1, (4) lockwasher 618576R1, (1) pilot 607184R1, (1) ring 607186R1, (4) screw 191209

1шт.

607425R91

PACKAGE, pto shaft service (BD144C engines prior to machine serial no. H1922) composed of: (1) adapter 607182R1, (1) barrel 607180R91, (2) key 613920R2, (2) lock 607183R1, (4) lockwasher 618576R1, (1) pilot 607185R1, (1) ring 607186R1, (4) screw 191209

1шт.
