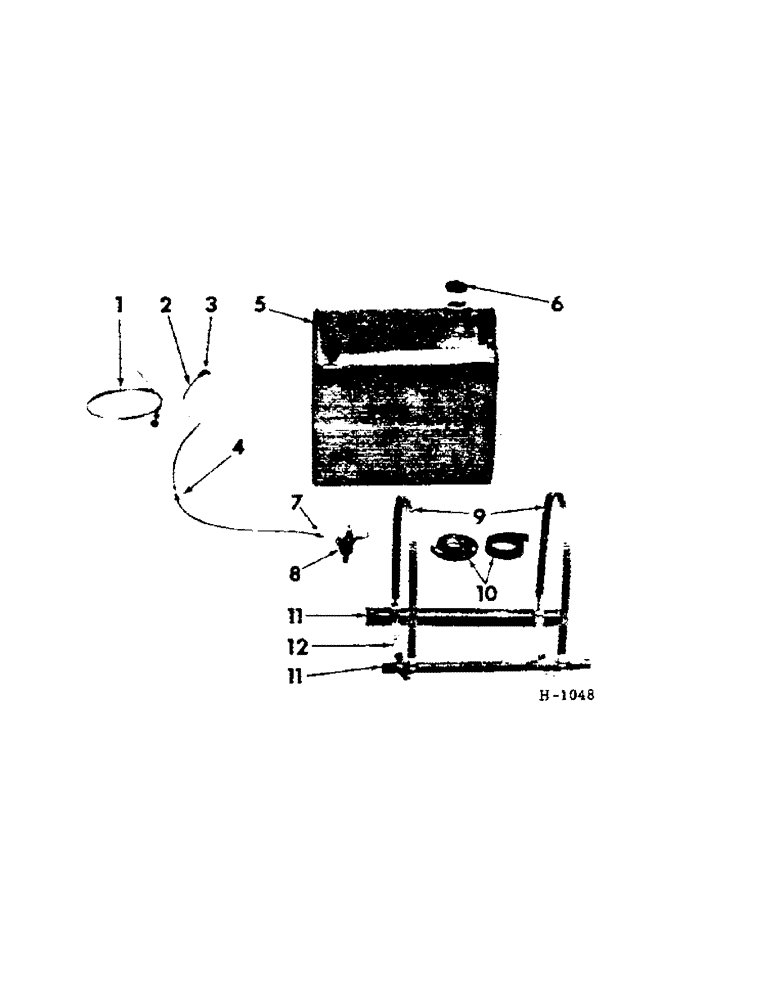

Запчасти Case IH 201 (E-005) - FUEL SYSTEM (10) - ENGINE

1

610859R91

CABLE

engine choke

1шт.

2

936761R1

TUBE

sediment bowl to engine carburator (for service dealer to cut to 48" from 5/16" O.D. flexible nylon tubing)

1шт.

3

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

sediment bowl fuel tube

1шт.

4

105246

COLLAR CLAMP

CLIP, fuel tube

2шт.

180016

SPRING

W/NUT, 1/4 x 1/2" C-Z type 2

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

592025R91

TANK, fuel (includes 612650R1 cap) (used on VH4D engine) (also used on VG4D engine, prior to machine serial no H-5074)

1шт.

5

597771R91

TANK, fuel (includes 612650R1 cap) (used on VG4D engine machine serial no H-5074 and up)

1шт.

6

612650R1

CAP

fuel tank

1шт.

7

222-503

TUBE NUT,1/2"-20

NUT, fuel tube

1шт.

8

BOWL, fuel sediment (for component parts refer to "fuel sediment bowl")

1шт.

9

592022R11

SUPPORT, fuel tank upper (used on VH4D engine) (also used on VG4D engine prior to machine serial no H-5074)

2шт.

9

597778R1

SUPPORT, fuel tank upper (used on VG4D engine machine serial no H-5074 and up)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" C-Z type 2

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

990538R1

STRIP

PAD, fuel tank (2-1 x 50" strip of cotton webbing, to be cut by dealer)

1шт.

11

592021R1

ANGLE, fuel tank mounting

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

592023R1

CHANNEL, tank lower support (used on VH4D engine) (also used on VG4D engine prior to machine serial no H-5074)

2шт.

12

597780R1

CHANNEL, tank lower support (used on VG4D engine, machine serial no H-5074 and up)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W/NUT, 3/8 x 3/4" C-Z type 2

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
