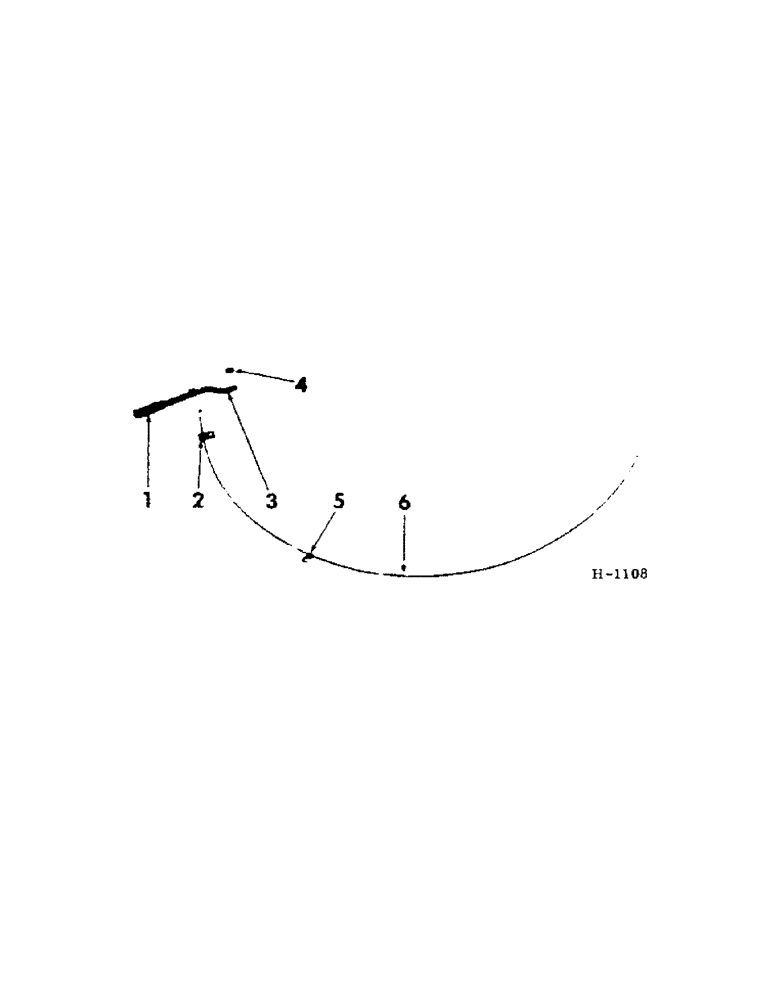

Запчасти Case IH 201 (E-005[A]) - ENGINE THROTTLE CONTROL (10) - ENGINE

1

610848R1

GRIP, throttle control lever

1шт.

2

592010R1

STRIP, throttle cable anchor

1шт.

592011R1

NUT, strip speed

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1-1/2" C-Z type 2

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

592008R11

LEVER, throttle control

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1" C-Z crg

1шт.

618856R1

WASHER, 13/32 x 1 x 16 ga C-Z

1шт.

21549R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

4

611555R1

WASHER

special lever

1шт.

5

105244

CLIP

no 3 closed cable

1шт.

6

592009R91

CABLE

throttle control

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.
