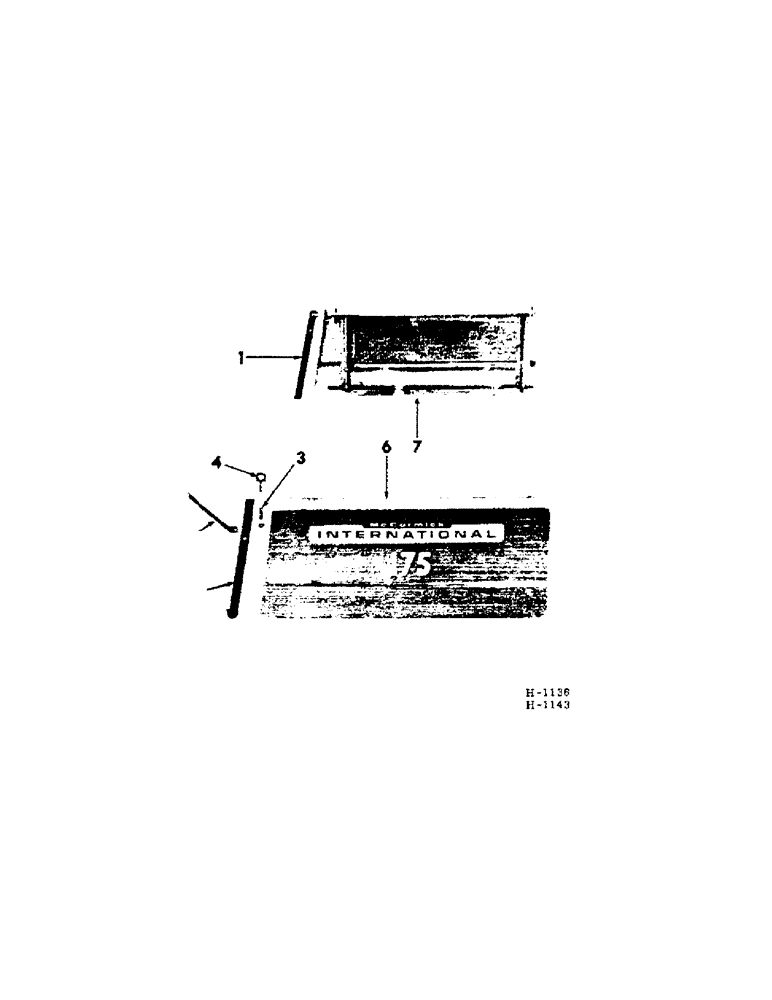

Запчасти Case IH 201 (E-004[B]) - ENGINE DRIVE SHIELDS (10) - ENGINE

1

591997R1

REINFORCEMENT, shield LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4" C-Z type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

592036R1

REINFORCEMENT, shield brace RH (Wisconsin VH4D Engine)

1шт.

2

592037R1

REINFORCEMENT, shield brace RH (Wisconsin VG4D Engine)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

W/NUT, 1/4 x 3/4" C-Z type 2 (Wisconsin VH4D Engine)

1шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT W/NUT, 5/16 x 3/4" C-Z no 3 plow

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

M296

SPRING

engine shield

4шт.

4

454502R1

LATCH

engine shield

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

5

591998R1

REINFORCEMENT, shield RH

1шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT W/NUT, 5/16 x 3/4" C-Z no 3 plow

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

BOLT W/NUT, 1/2 x 1-1/4" C-Z type 2

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

591994R21

SHIELD, engine RH

1шт.

7

591993R31

SHIELD, engine LH

1шт.
