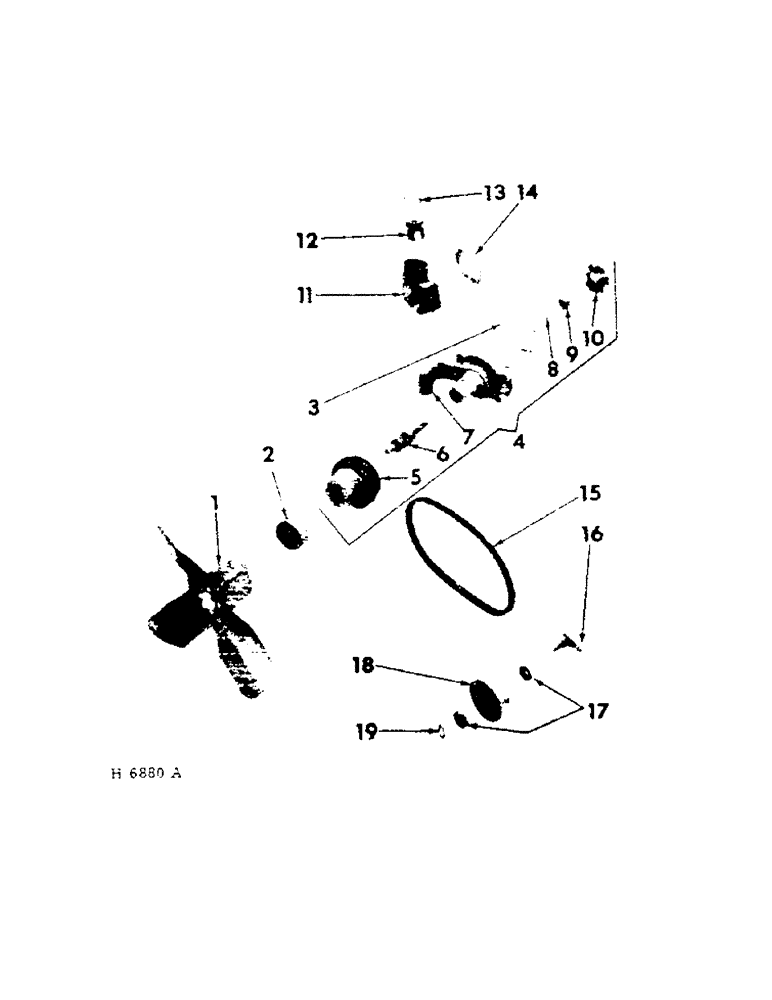

Запчасти Case IH 201 (A-041) - FAN AND WATER PUMP, DIESEL (10) - ENGINE

1

706749R91

FAN

water pump

1шт.

BOLT, 5/16 x 3" type 2

4шт.

LK-WASH, 5/16"

4шт.

2

614097R1

EXTENSION, fan pulley hub

1шт.

3

703816R1

GASKET

water pump

1шт.

4

3048877R92

WATER PUMP

PUMP, water (includes parts reference no.'s 5 to 10 inclusive)

1шт.

NUT, 3/8"

4шт.

LK-WASH, 3/8"

4шт.

5

3040316R1

HUB

water pulley

1шт.

6

704217R91

NO LONGER SERVICED

BEARING, pump (opt w/3042304R91 or 3042676R91, brg)

1шт.

6

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

pump (opt w/704217R91 or 3042676R91, brg)

1шт.

6

3042676R91

CRANKSHAFT BEARING

BEARING, pump (opt w/704217R91 or 3042304R91, brg)

1шт.

7

704216R4

BODY

pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

brg retainer

1шт.

LK-WASH, 1/4"

1шт.

8

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pump spindle

1шт.

9

703822R91

SEAL

water pump

1шт.

10

709909R2

TURBINE

IMPELLER, water pump

1шт.

11

703814R1

HOUSING

thermostat

1шт.

BOLT, 5/16 x 1" type 2

2шт.

BOLT, 5/16 x 2-1/2" type 2

1шт.

LK-WASH, 5/16"

3шт.

12

369322R91

THERMOSTAT

170deg.F

1шт.

13

257441R2

SEGMENT

RING, thermostat retaining

1шт.

14

703815R1

GASKET

thermostat housing

1шт.

15

3040315R2

BELT,0.66" W

Fan drive 0.66" W

1шт.

16

3040313R11

BRACKET

fan belt adjusting pulley

1шт.

BOLT, 3/8 x 5/8" type 2

1шт.

Q1504

WASHER

WASH, 13/32 x 7/6 x 16 ga

1шт.

17

3040303R91

BALL BEARING

BEARING, belt pulley adjusting

1шт.

18

3040302R11

PULLEY

adjusting (includes 3040303R91, brgs)

1шт.

19

3040306R1

SNAP RING

RING, pulley retaining

1шт.
