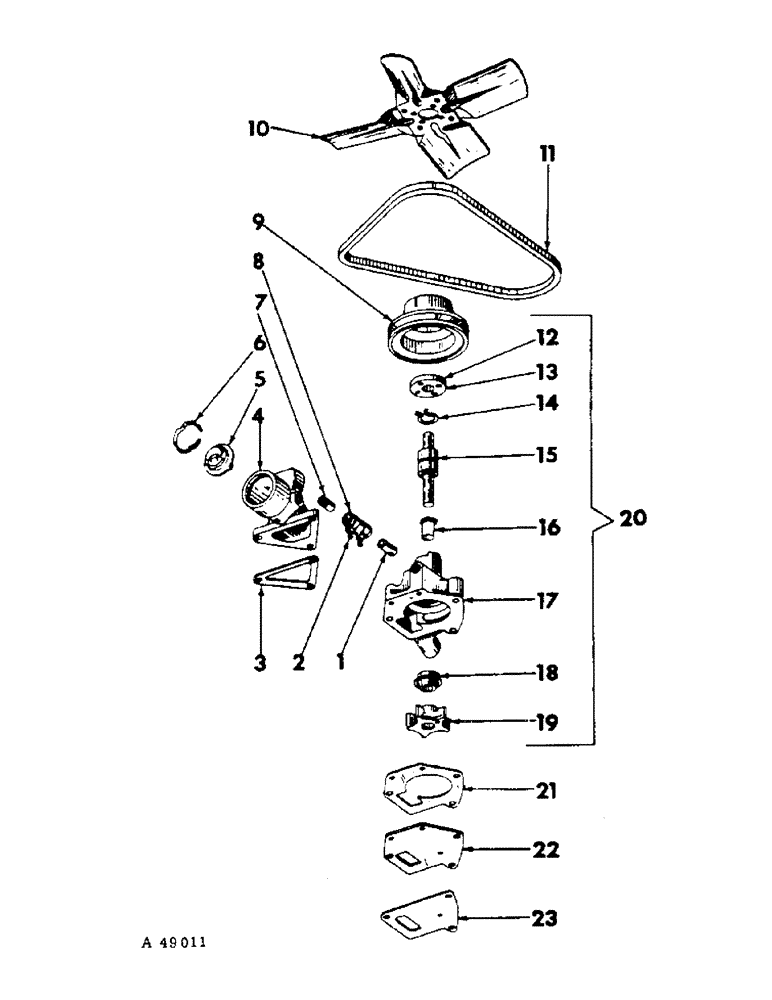

Запчасти Case IH 201 (A-040) - FAN AND WATER PUMP, CARBURETED (10) - ENGINE

1

368556R1

FITTING

PIPE, lower by-pass

1шт.

2

375061R91

CLAMP

by-pass hose

2шт.

3

43204D

GASKET, water outlet elbow

1шт.

4

367679R1

ELBOW

water outlet

1шт.

BOLT, 3/8 x 1" type 2

3шт.

LK-WASH, 3/8"

3шт.

5

369322R91

THERMOSTAT

170deg.

1шт.

6

257441R2

SEGMENT

RING, thermostat retainer

1шт.

7

367680R1

FITTING

PIPE, upr by-pass

1шт.

8

367681R1

HOSE

by-pass pipe

1шт.

9

367688R1

PULLEY

water pump

1шт.

10

367682R91

FAN

water pump

1шт.

BOLT, 1/4-NF x 1-1/2" type 2

4шт.

LK-WASH, 1/4"

4шт.

11

367697R1

V-BELT,0.38" W x 42.00" L

Water pump drive 0.38" W x 42.00" L

1шт.

12

368501R2

HUB CAP

HUB, pulley

1шт.

13

612296R1

EXTENSION, pulley hub

1шт.

14

102069H

RING

front snap

1шт.

15

ST644

SHAFT

BEARING, pump (includes 71351R1, slinger)

1шт.

16

713351R1

SCRAPER RING

SLINGER, water pump

1шт.

17

BODY (order 1-375793R92, pump) (NSS)

1шт.

18

73296R93

SEAL

water pump

1шт.

19

367689R1

IMPELLER

water pump

1шт.

20

375793R92

PUMP

water (parts within bracket)

1шт.

375793R92R

REMAN-WATER PUMP

201 (1/61-12/66)

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

BOLT, 3/8 x 1-3/4" type 2

1шт.

BOLT, 3/8 x 2" type 2

1шт.

BOLT, 3/8 x 2-5/8" type 2

1шт.

LK-WASH, 3/8"

3шт.

21

367687R1

GASKET

water pump body

1шт.

22

368559R1

SUPPORT

PLATE, water pump

1шт.

BOLT, 5/16 x 3/4" type 2

2шт.

LK-WASH, 5/16"

2шт.

23

375745R1

GASKET

water pump plate

1шт.
