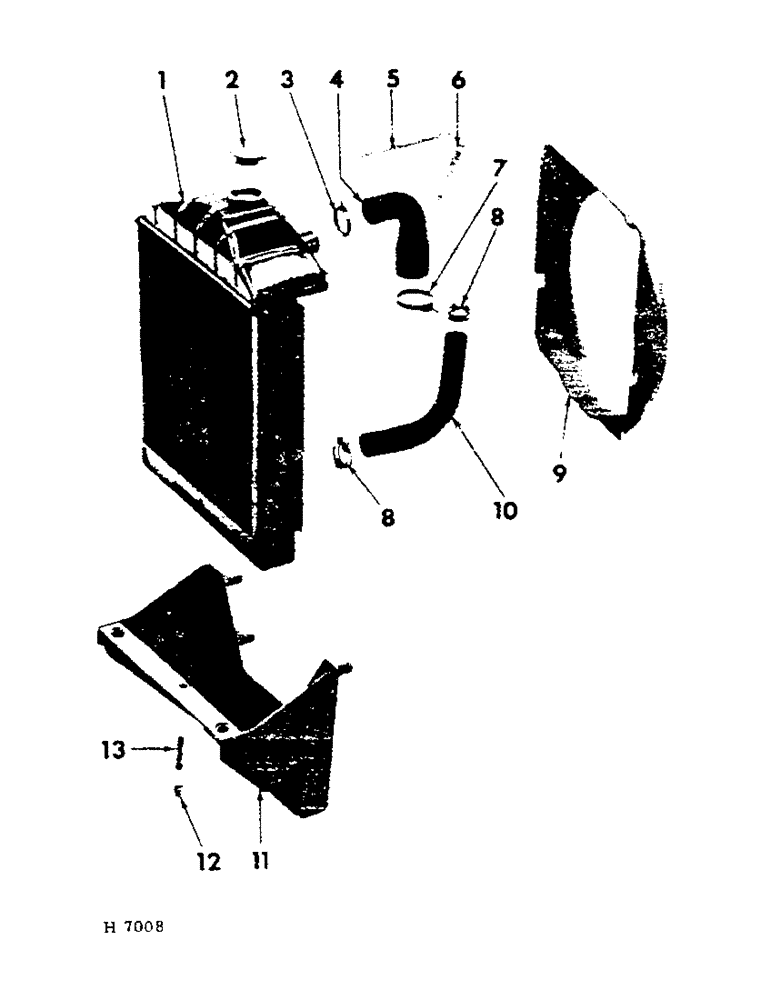

Запчасти Case IH 201 (A-039) - RADIATOR AND SUPPORTS, DIESEL (10) - ENGINE

1

614313R92

RADIATOR (includes 361705R91, cap)

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

radiator drain (serial no. H5404 & up)

1шт.

BOLT W/NUT, 7/16 x 2" crg

2шт.

557267R1

WASHER

15/32 x 1-3/4 x 11 ga

2шт.

LK-WASHER, 7/16"

2шт.

2

361705R91

COVER

CAP, radiator

1шт.

3

39177H

CLAMP

inlet hose upr

1шт.

4

614086R1

HOSE, radiator inlet

1шт.

5

614096R1

BRACE, radiator strip RH

1шт.

6

614095R1

BRACE, radiator strip LH

1шт.

BOLT W/NUT, 3/8 x 5/8" mach

2шт.

NUT, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

LK-WASHER, 3/8"

4шт.

7

39240H

CLAMP

inlet hose lower

1шт.

8

39142H

COLLAR CLAMP

CLAMP, radiator outlet hose

2шт.

9

612172R1

HOUSING, radiator fan

1шт.

BOLT, 1/4-NF x 3/8" type 2

4шт.

LK-WASHER, 1/4"

4шт.

10

614098R1

HOSE ASSY.

HOSE, radiator outlet

1шт.

11

614079R93

SUPPORT, engine & radiator

1шт.

609983R1

MOUNT, radiator rubber (serial no. H5404 & up)

2шт.

BOLT W/NUT, 1/2 x 1-1/8" cd-pltd mach

3шт.

BOLT, 5/8 x 3" type 2

3шт.

BOLT, 5/8" x 4" type 2

1шт.

LK-WASHER, 1/2" cd-pltd

3шт.

LK-WASHER, 5/8"

4шт.

12

NLS

NO LONGER SERVICED

1/4" drain (prior to serial no. H5405)

1шт.

13

119290

WASHER,Nipple, 1/4" NPT x 2 1/2"

NIPPLE, 1/4 x 2-1/2" radiator drain (prior to serial no. H5404)

1шт.
