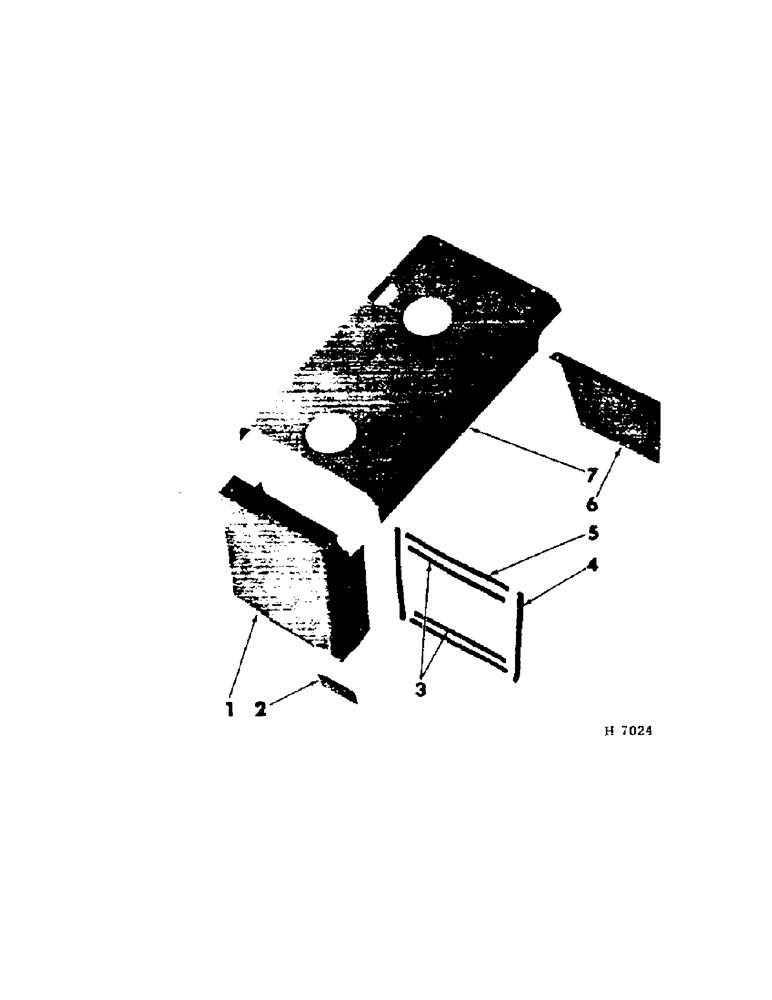

Запчасти Case IH 201 (A-038[A]) - RADIATOR SCREEN AND ENGINE HOOD (10) - ENGINE

1

610890R91

SCREEN

radiator (includes 610881R1, 610882R1 & 610883R1, strips)

1шт.

BOLT, 3/8 x 5/8" cd-pltd type 2 (4 diesel only)

1шт.

BOLT, 3/8 x 3/4" cd-pltd type 2 (4 carbureted only)

1шт.

LK-WASH, 3/8" cd-pltd

4шт.

2

610885R1

DOOR, screen clean-out

1шт.

3

610881R1

STRIP, screen innter seal

2шт.

4

610883R1

STRIP, screen side seal

2шт.

5

610882R1

STRIP, screen outer seal

2шт.

6

612311R1

SUPPORT, hood rear (carbureted)

1шт.

6

614123R2

SUPPORT, hood rear (diesel)

1шт.

BOLT, 3/8 x 7/8" type 2 (2-carbureted)

1шт.

BOLT, 3/8 x 1" type 2 (2-diesel)

1шт.

LK-WASHER, 3/8"

2шт.

7

612310R11

HOOD, engine (carbureted)

1шт.

7

614124R12

HOOD, engine (diesel)

1шт.

BOLT W/NUT, 5/16 x 5/8" crg (3-carbureted)

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg (2-diesel)

1шт.

BOLT, 3/8 x 5/8" cd-pltd mach (2-diesel)

1шт.

LK-WASHER, 5/16" (3-carbureted)

1шт.

LK-WASHER, 5/16" cd-pltd (2-diesel)

1шт.

LK-WASHER, 3/8" cd-pltd (2-diesel)

1шт.
