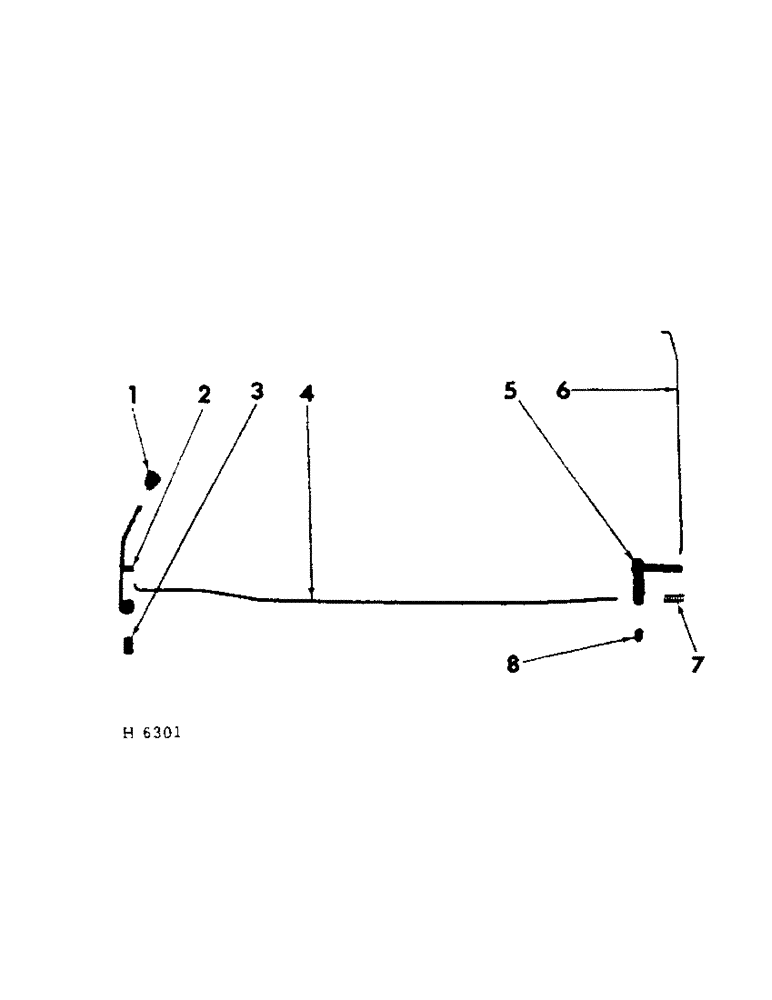

Запчасти Case IH 201 (A-037) - THROTTLE CONTROL, CARBURETED, NOT WISCONSIN ENGINE (10) - ENGINE

1

611976R1

KNOB, throttle lever

1шт.

2

614595R91

LEVER, throttle

1шт.

17557R1

BOLT, 3/8 x 2-1/4" dld mach

1шт.

SLT-NUT, 3/8"

1шт.

28035K

WASHER

WASH, 13/32 x 1 x 22 ga

2шт.

C-PIN, 3/32 x 3/4"

1шт.

3

611420R1

SPRING

lever tension

1шт.

4

612297R1

ROD, throttle lever connecting

1шт.

Q392

WASHER

WASH, 9/22 x 3/4 x 18 ga

2шт.

C-PIN, 3/32 x 1/2"

1шт.

NUT, 1/4"-NF

3шт.

5

612325R91

BELLCRANK, lever (includes 611521R1, trunnion)

1шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

1шт.

C-PIN, 3/16 x 1"

1шт.

6

613418R1

ROD, governor connecting

1шт.

Q392

WASHER

WASH, 9/32 x 3/4 x 18 ga

1шт.

C-PIN, 3/32 x 1/2"

2шт.

7

9DS

SPRING, throttle lever trunnion

1шт.

8

611521R1

TRUNNION, throttle bellcrank

1шт.
