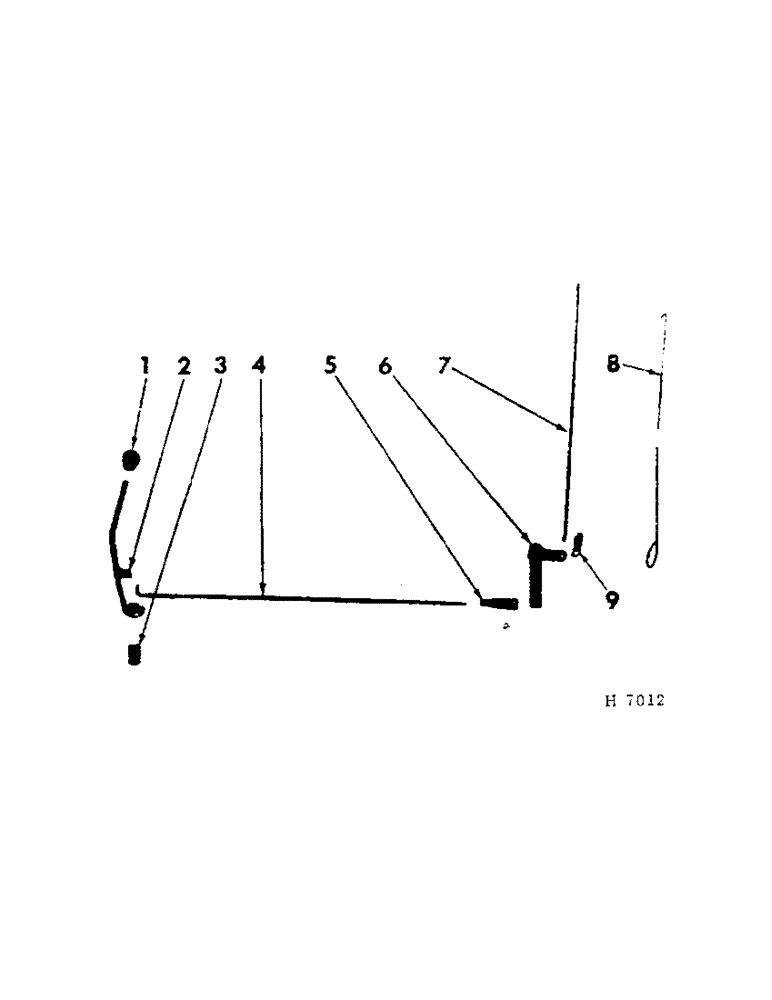

Запчасти Case IH 201 (A-037[A]) - THROTTLE CONTROL, DIESEL (10) - ENGINE

1

611976R1

KNOB, throttle lever

1шт.

2

614595R91

LEVER, throttle

1шт.

17557R1

BOLT, 3/8 x 2-1/4" dld mach

1шт.

NUT, 3/8" slt

1шт.

28035K

WASHER

WASH, 13/32 x 1 x 22 ga

2шт.

C-PIN, 3/32 x 3/4"

1шт.

3

611420R1

SPRING

lever tension

1шт.

4

614106R1

ROD, throttle lever connecting

1шт.

NUT, 1/4"-NF

1шт.

C-PIN, 3/32 x 3/4"

1шт.

5

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, adjustable rod end

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 5/64" rd-end dld

1шт.

C-PIN, 1/16 x 1/2"

1шт.

6

614099R91

BELLCRANK, throttle lever

1шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

1шт.

C-PIN, 3/16 x 1"

1шт.

7

ROD, injection pump connecting (prior to serial no. H5404, order 1-609922R1, rod & 1-37AC, spring)

1шт.

7

609922R1

ROD, injection pump connecting (serial no. H5404 & up)

1шт.

C-PIN, 1/16 x 1/2"

1шт.

8

614104R1

CONTROL, engine stop rod

1шт.

C-PIN, 1/16 x 1/2"

1шт.

9

37AC

SPRING

connecting rod (H5404 & up)

1шт.
