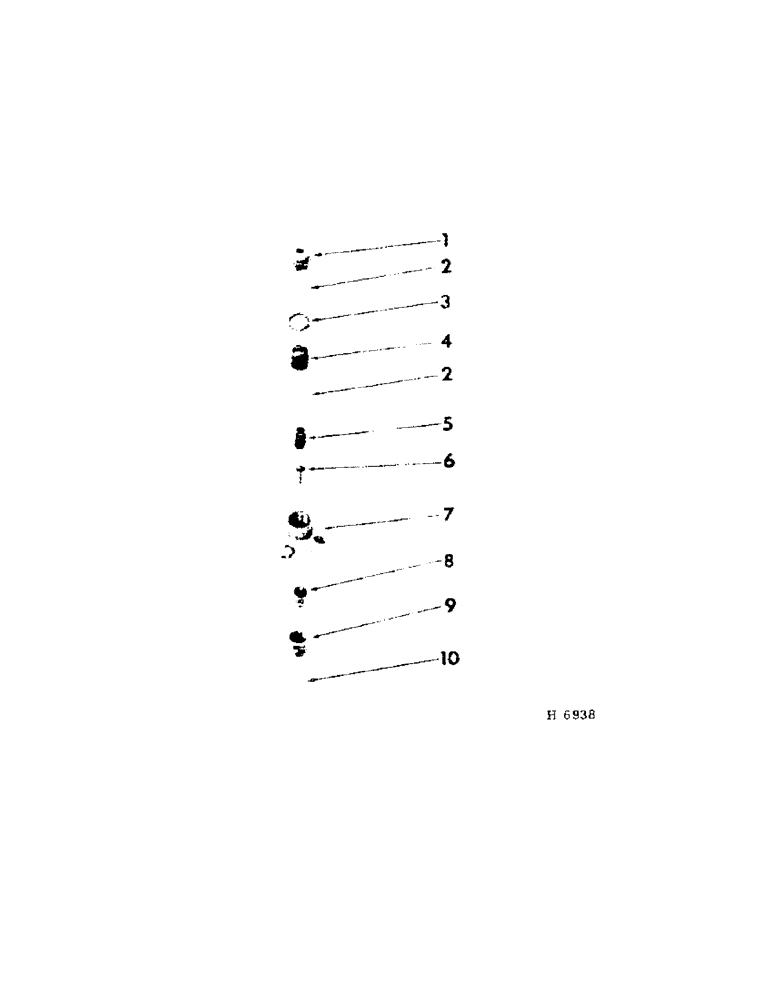

Запчасти Case IH 201 (A-036) - FUEL INJECTION NOZZLE, DIESEL, PRIOR TO ENGINE SERIAL NUMBER BD144/3421C (10) - ENGINE

1

706288R1

NUT

holder cap

1шт.

706289R1

BOLT

STUD, leak-off cap

1шт.

703519R1

WASHER

leak-off stuf

2шт.

2

706287R1

WASHER

holder nut cap

2шт.

3

706292R1

NUT, cap lock

1шт.

4

706290R1

CAP, spg

1шт.

5

706293R1

SPRING

cap

1шт.

6

706282R91

NEEDLE BEARING CAGE

SPINDLE, nozzle

1шт.

7

706275R91

NOZZLE HOLDER

BODY, nozzle holder

1шт.

8

3040871R91

NOZZLE CAP

NOZZLE, fuel injection

1шт.

9

706283R1

NUT

nozzle cap

1шт.

10

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

nozzle cap nut

1шт.

3040870R93

FUEL SYSTEM INJECTOR

INJECTION NOZZLE & NOZZLE HOLDER ASSY, (composed of all parts unless otherwise noted)

4шт.

103026

NUT,3/8"-24, G5

8шт.

Not part of nozzle

1шт.

706077R1

WASHER

3/8"

8шт.

Not part of nozzle

1шт.
