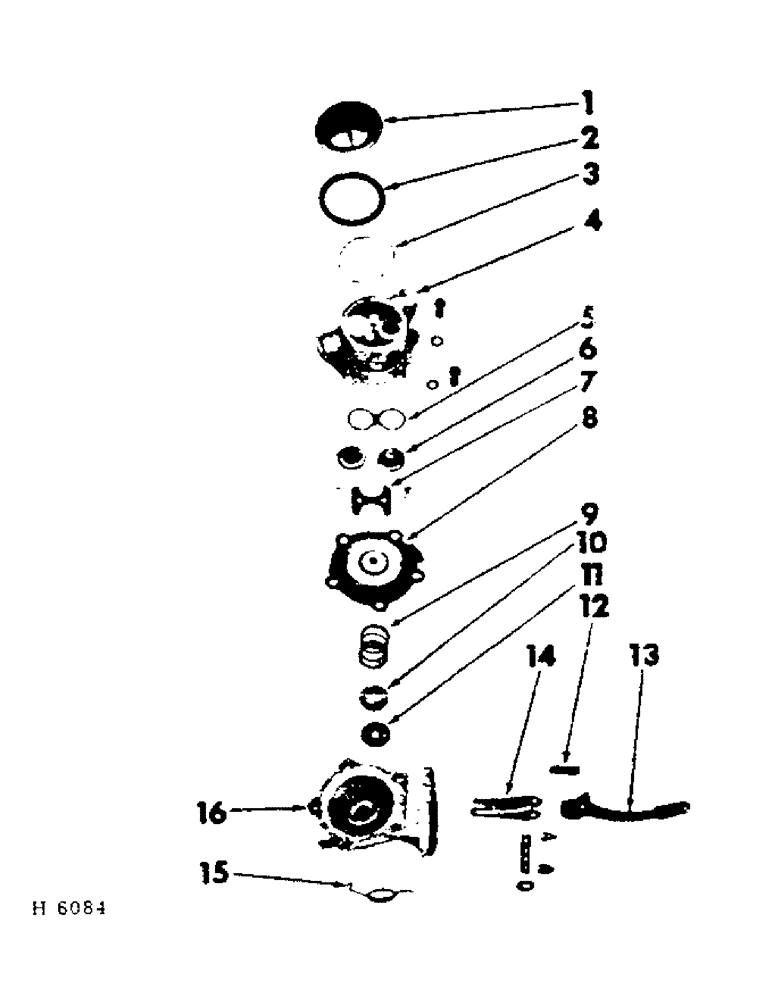

Запчасти Case IH 201 (A-035) - FUEL FEED PUMP, DIESEL (10) - ENGINE
№
Артикул
Название
Примечание
Количество
708294R93
PUMP
fuel feed (composed of parts listed below, unless otherwise noted), FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE
1шт.
3063872R1
BOLT
SCREW, 5/16 x 3/4" hdls-soc
2шт.
Not part of fuel feed pump
1шт.
1
3044512R1
COVER
pump filter
1шт.
702953R1
SCREW
filter cover
1шт.
3044518R1
GASKET
cover screw
1шт.
2
3044511R1
GASKET
pump filter cover
1шт.
3
3044513R1
FILTER SCREEN
SCREEN, pump filter
1шт.
4
3044514R1
COVER
feed pump
1шт.
132117
CLAMP
SCREW, no. 10-NF x 1/2" slf-fil-hd
5шт.
114648
WASHER, screw spring
5шт.
5
702958R1
GASKET
valve
1шт.
6
702959R91
VALVE
feed pump
2шт.
7
702960R1
RETAINER
pump valve
1шт.
702961R1
SCREW
valve retainer
2шт.
8
3066607R91
DIAPHRAGM
pump
1шт.
9
708954R1
SPRING
diaphragm
1шт.
10
WASHER, oil seal (for service on engine prior serial no. on BD144C) (4435) (order 1-3072671R1, washer & 1-3072672R1, seal)
1шт.
10
3072671R1
WASHER
oil seal (for service on engine serial no. on BD144C) (4435 & up)
1шт.
11
SEAL, pump (for service on engine prior to serial no. on BD144C) (4435) (order 1-3072671R1, washer & 1-3072672R1, seal)
1шт.
11
3072672R1
SEALING WASHER
pump (for service on engine serial no. on BD144C) (4435 & up)
1шт.
12
708956R1
SPRING
rocker arm
1шт.
13
3044517R1
ARM
rocker
1шт.
3044515R1
PIN
rocker arm
1шт.
3062570R1
RETAINER
rocker arm pin
2шт.
708957R1
WASHER
rocker arm pin
2шт.
14
708963R1
LINK
rocker arm
1шт.
15
3044520R1
SPRING
priming lever
1шт.
16
3044519R91
COVER ASSY
PRIMER, body & hand
1шт.
3043470R1
GASKET, feed pump
1шт.
Not part of fuel feed pump
1шт.
3066610R92
KIT
1шт.
3066540R91
STRIPPER PACKAGE
KIT, diaphragm first-aid repair
1шт.
Not part of fuel feed pump
1шт.
3044458R91
SPRING
SET, primer parts repair
1шт.
Not part of fuel feed pump
1шт.
Выбрано товаров: 36
