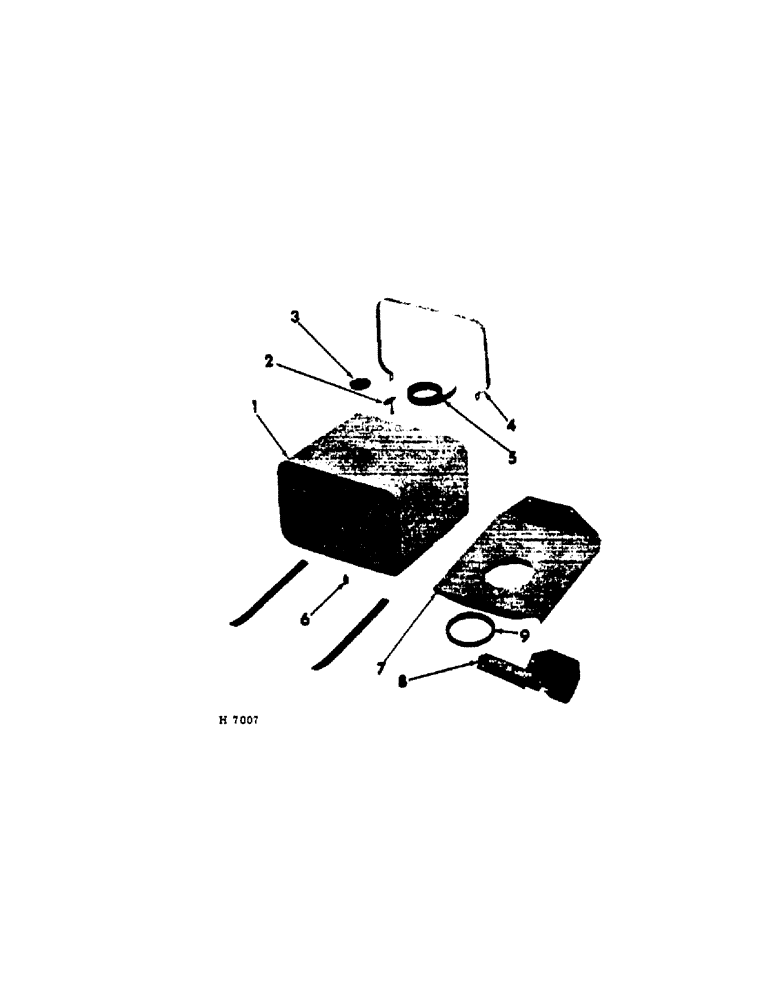

Запчасти Case IH 201 (A-034) - FUEL TANK, DIESEL (10) - ENGINE

1

TANK, fuel (1961 to 1964, order 1-608808R91, tank & 1-614114R21, line)

1шт.

1

608808R91

TANK, fuel (includes 608603R11, cap -, Serial Range: 1965-1966)

1шт.

2

614115R91

TEE, fuel spill return

1шт.

3

608603R91

CAP, fuel tank

1шт.

4

614007R21

STRAP, fuel tank

1шт.

BOLT W/NUT, 3/8 x 3/4" mach

2шт.

BOLT W/NUT, 3/8 x 7/8" mach

1шт.

20285H

WASHER

WASH, 13/32 x 3/4 x 11 ga

3шт.

LK-WASH, 3/8"

3шт.

5

990538R1

STRIP

PAD, tank support strap (2-1 x 16" & 2-1 x 43" cotton webbing, to be cut to length by dealer)

1шт.

6

443988

UNION

NIPPLE, 3/8 x 1/8" tank, Serial Range: (prior-H3780)

1шт.

7

614111R21

BASE, fuel tank (includes M84298, wash)

1шт.

BOLT W/NUT, 3/8 x 3/4" mach

4шт.

BOLT W/NUT, 3/8 x 7/8" mach

1шт.

BOLT, 3/8 x 1" type 2

2шт.

20285H

WASHER

WASH, 13/32 x 3/4 x 11 ga

4шт.

LK-WASH, 3/8"

7шт.

8

614112R1

SUPPORT, fuel tank

1шт.

BOLT, 5/16 x 5/8" type 2

2шт.

BOLT W/NUT, 3/8 x 3/4" mach

2шт.

LK-WASH, 5/16"

2шт.

LK-WASH, 3/8"

2шт.

9

M84298

WASHER, fuel tank base felt

1шт.
