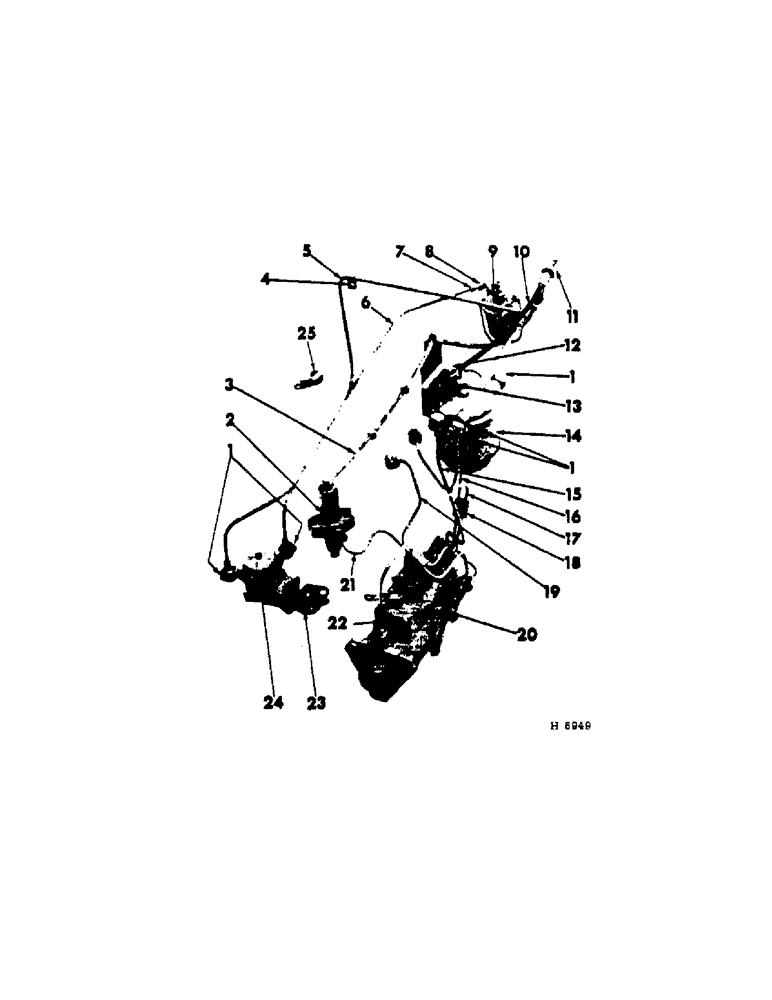

Запчасти Case IH 201 (A-034[A]) - FUEL LINES, DIESEL (10) - ENGINE

1

708296R1

CONNECTOR, ELEC

BOLT, pump & filter banjo

5шт.

708297R1

GASKET

WASH, banjo bolt

10шт.

2

NOZZLE, injection (refer to "fuel injection nozzle")

1шт.

706077R1

WASHER

WASH, nozzle stud

8шт.

NUT, 3/8"-NF

1шт.

3

3043653R91

HOSE

PIPE, injectors to return line

1шт.

4

105245

CLIP

pump to filter line no. 4

1шт.

BOLT W/NUT, 1/4 x 1/2" mach

1шт.

LK-WASH, 1/4"

1шт.

5

3043649R94

PIPE

, Serial Range: pump-filter

1шт.

6

LINE, sediment bowl to feed pump (prior to machine serial no. H3780, order 1-608493R1, clip; 1-369988R91, bowl; 1-608492R91, line & 1-29899D, nut)

1шт.

6

608492R91

TUBE, sediment bowl to feed pump (machine serial no. 3780 & up) 0.212" ID, 0.312" OD, 28" Length

1шт.

7

222-502

TUBE NUT,7/16"-24

NUT, bowl to filter line (prior to H3780)

1шт.

7

222-503

TUBE NUT,1/2"-20

NUT, bowl to filter line (H3780 & up)

1шт.

8

252374R1

ELBOW,90 Degree x 1/4" NPT x 7/16"-24

sediment bowl (prior to H3780)

1шт.

9

BOWL, sediment (refer to "fuel sediment bowl")

1шт.

10

614114R21

LINE, fuel spill return

1шт.

11

614115R91

TEE, fuel spill return

1шт.

12

3043647R91

SCREW, connection

1шт.

701735R1

WASHER

connection screw

2шт.

13

3043646R91

FITTING

VALVE, ball check

1шт.

3049111R1

SEALING WASHER

ball check

1шт.

14

FILTER, fuel (refer to "fuel filter")

1шт.

15

3043650R93

PIPE

filter to injection pump

1шт.

16

708310R21

PIPE

no. 4 cyl fuel injection

1шт.

17

708309R21

PIPE

no. 3 cyl fuel injection

1шт.

18

841432R1

CLAMP

CLIP, injection pipe

4шт.

841433R1

INSULATOR BLOCK

PAD, pipe clip

2шт.

100780

VALVE

SCREW, no. 12 x 7/8" mach

2шт.

703700R1

LK-NUT, no. 12 type "P"

2шт.

19

708308R31

PIPE

no. 2 cyl fuel injection

1шт.

20

PUMP, injection (refer to "dap fuel injection pump")

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

3шт.

NUT, 5/16"

3шт.

21

708307R21

PIPE

no. 1 cyl fuel injection

1шт.

22

3043651R91

PIPE

pump to filter excess

1шт.

23

3043370R1

GASKET

fuel pump

1шт.

24

PUMP, feed (refer to "fuel feed pump")

1шт.

BOLT, 5/16 x 3/4" soc-hd

2шт.

25

608493R1

CLIP, pump to bowl tube (on machines w/serial no. H3780 & up)

1шт.
