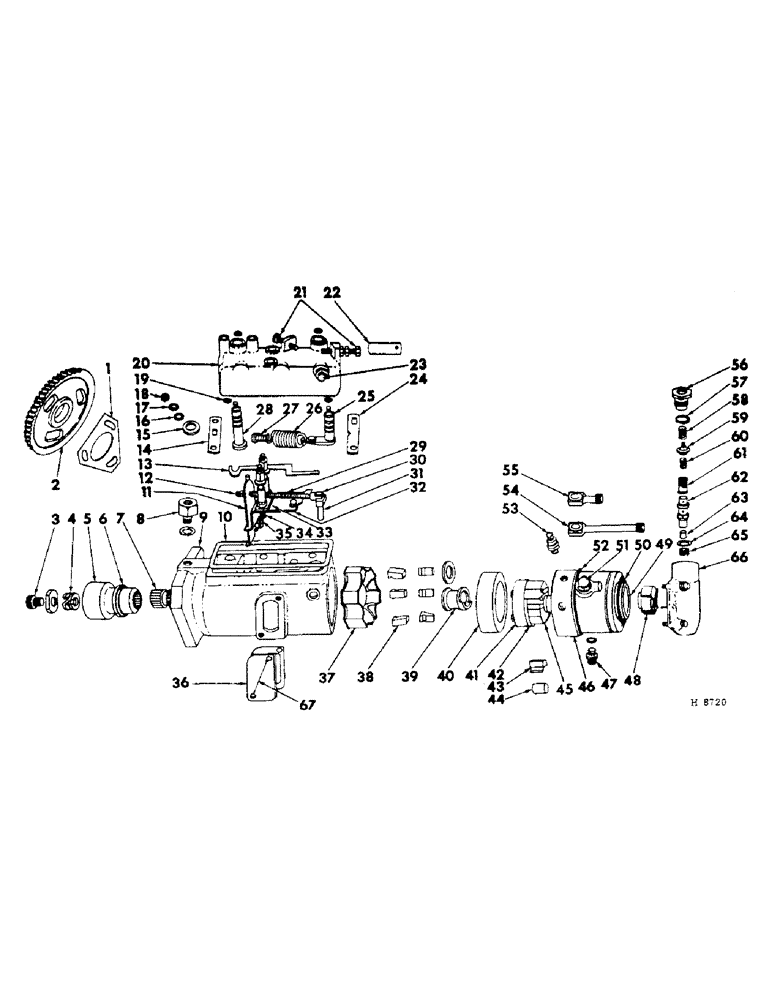

Запчасти Case IH 201 (A-032) - DPA FUEL INJECTION PUMP, DIESEL ENGINE (10) - ENGINE

3041317R92

FUEL INJECTION PUMP

PUMP, DPA fuel injection (new) (includes parts listed unless noted)

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

3шт.

NUT, 5/16"

3шт.

636222R91

PUMP, DPA fuel injection (renewed) (includes parts listed, unless noted)

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

3шт.

NUT, 5/16"

3шт.

1

708289R1

BOLT

GASKET, injection pump

1шт.

2

708290R11

GEAR

(includes pin, 708291R1)

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

5/16 x 3/4" mach

3шт.

708291R1

DOWEL

PIN, gear dowel

1шт.

3

895956H1

DRIVE SCREW

drive shaft

1шт.

895958H1

WASHER

shaft support

1шт.

4

895957H1

SPRING WASHER

WASHER, drive shaft screw

1шт.

5

3072521R1

HUB CAP

HUB, drive shaft

1шт.

6

895960H1

SEAL

OIL SEAL, drive shaft hub

1шт.

7

3072518R1

SHAFT, pump drive

1шт.

3072519R1

SEAL

shaft oil

1шт.

8

3043107R1

CONNECTOR, ELEC

CONNECTOR, housing drain pipe

1шт.

3043093R1

WASHER

pipe connector

1шт.

9

3072545R1

HOUSING, injection pump

1шт.

10

895963H1

GASKET

control cover

1шт.

11

895964H1

ARM, governor control

1шт.

12

895977H1

HOOK, governor linkage

1шт.

895972H1

NUT, linkage locking

1шт.

895976H1

WASHER, linkage spg

1шт.

895975H1

WASHER

pivot ball retainer

1шт.

13

895981H1

BAR

shut off lever

1шт.

14

3043103R1

LEVER

shut off

1шт.

15

895983H1

CAP, lever & control shaft dust

2шт.

16

3043105R1

WASHER

shaft plain

1шт.

17

705380R1

WASHER, lever & control shaft

2шт.

18

3043096R1

NUT

lever & control shaft

2шт.

19

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL, lever & control shaft

2шт.

20

3072525R1

COVER

control

1шт.

21

3043097R1

ADJUSTMENT SCREW,M10 x 32 x 35mm

SCREW, throttle control adjusting

2шт.

3043095R1

ADAPTER

locking sleeve

1шт.

3043096R1

NUT

adjusting screw

1шт.

704777R1

WASHER, adjusting screw

1шт.

22

3064263R1

SLEEVE

control cover locking

1шт.

23

3069753R1

SCREW, control cover vent

1шт.

3069754R1

SCREW

BODY, Vent screw

1шт.

3043100R1

WASHER

vent screw body

1шт.

24

3043104R1

ARM

throttle control

1шт.

25

895984H1

SHAFT

throttle control

1шт.

26

3072523R1

SPRING

governor control

1шт.

27

3072524R1

SPRING

idling

1шт.

895987H1

GUIDE

idling spg

1шт.

28

895982H1

SHAFT, shut off lever

1шт.

29

895978H1

SPRING

governor linkage

1шт.

30

895979H1

RETAINER, governor linkage spg

1шт.

31

895980H1

VALVE

metering (standard)

1шт.

31

384789R1

VALVE

metering (oversize)

1шт.

32

895968H1

BRACKET, governor control

1шт.

895969H1

SCREW

control bracket

1шт.

895970H1

WASHER

bracket screw

1шт.

33

895966H1

PLATE

control bracket keep

1шт.

895967H1

WASHER

keep plate tab

1шт.

34

895971H1

STUD

control cover

2шт.

3043101R1

NUT

cover stud

2шт.

3043102R1

SEALING WASHER

cover stud

2шт.

35

895965H1

SPRING

governor control arm

1шт.

36

3043109R1

PLATE

housing cover

1шт.

3043110R1

GASKET

cover plate

1шт.

3043111R1

SCREW

cover plage

2шт.

705380R1

WASHER, cover plate

2шт.

37

3072516R1

RETAINER

governor weight

1шт.

38

895947H1

WEIGHT

governor

6шт.

39

3072517R1

SLEEVE

governor weight thrust

1шт.

895950H1

THRUST WASHER

weight thrust

1шт.

40

3072513R1

RING

CAM, ring

1шт.

3072514R1

SCREW

cam locating

1шт.

41

3072511R1

PLATE

drive

1шт.

795980R1

DRIVE SCREW,12 Pt Serr Flg, 5/16" - 24 x 25.50mm

drive plate

2шт.

42

3072510R1

KNOB

PLATE, top adjusting

1шт.

43

795977R1

NO LONGER SERVICED

SHOE, cam roller

2шт.

44

795976R1

ROLLER

cam

2шт.

45

3072499R1

PLATE ASSY.

PLATE, bottom adjusting

1шт.

46

3072496R1

HEAD

AND ROTOR, pump distributor

1шт.

795970R1

BOLT,Locking, 5/16" - 24 x 1/2"

LK-SCREW, distributor head

1шт.

3072497R1

SCREW

distributor head locating

1шт.

3043089R1

WASHER

distributor head

1шт.

3072498R1

WASHER

locating screw

1шт.

47

3043094R1

CONNECTOR, ELEC

CONNECTION, radial

1шт.

3043093R1

WASHER

connecting screw

7шт.

48

3072526R1

ROTOR

transfer pump

1шт.

3043086R1

BLADE

transfer rotor

2шт.

49

895540H1

LINER, transfer pump

1шт.

50

3069749R1

RING

SEAL, transfer pump

1шт.

51

3043090R1

STUD

fuel connecting

3шт.

52

795965R1

RING

SEAL, distributor head

1шт.

53

796048R91

SCREW,Lock

distributor head vent

1шт.

54

795966R1

BOLT

long screwed banjo

2шт.

55

3043091R1

BOLT

short screwed banjo

1шт.

56

3043083R1

CONNECTOR, ELEC

CONNECTOR, fuel inlet pipe

1шт.

57

3043085R1

WASHER

inlet pipe connector

1шт.

58

795952R1

SPRING

retaining sleeve

1шт.

59

3072493R1

PLUG, regulating valve

1шт.

60

3072495R1

SPRING

regulating valve

1шт.

61

3043084R1

FILTER

fuel

1шт.

62

3072492R1

SLEEVE

regulating valve

1шт.

63

795946R1

PISTON

regulating valve

1шт.

64

795948R1

WASHER

regulating valve sleeve

1шт.

65

795945R1

SPRING

piston retaining

1шт.

66

3072473R1

PLATE

injection pump end

1шт.

795944R1

SCREW

pump end plate

4шт.

795943R1

PIN

pump end plate

1шт.

67

12736D

ELECTRICAL WIRE

WIRE, plate lead sealing

1шт.

384804R91

PACKAGE

seal & gasket

1шт.
