(A-031) - FUEL SEDIMENT BOWL, DIESEL, USED ON MACHINES PRIOR TO SERIAL NUMBER H 3780

Запчасти Case IH 201 (A-031) - FUEL SEDIMENT BOWL, DIESEL, USED ON MACHINES PRIOR TO SERIAL NUMBER H 3780 (10) - ENGINE

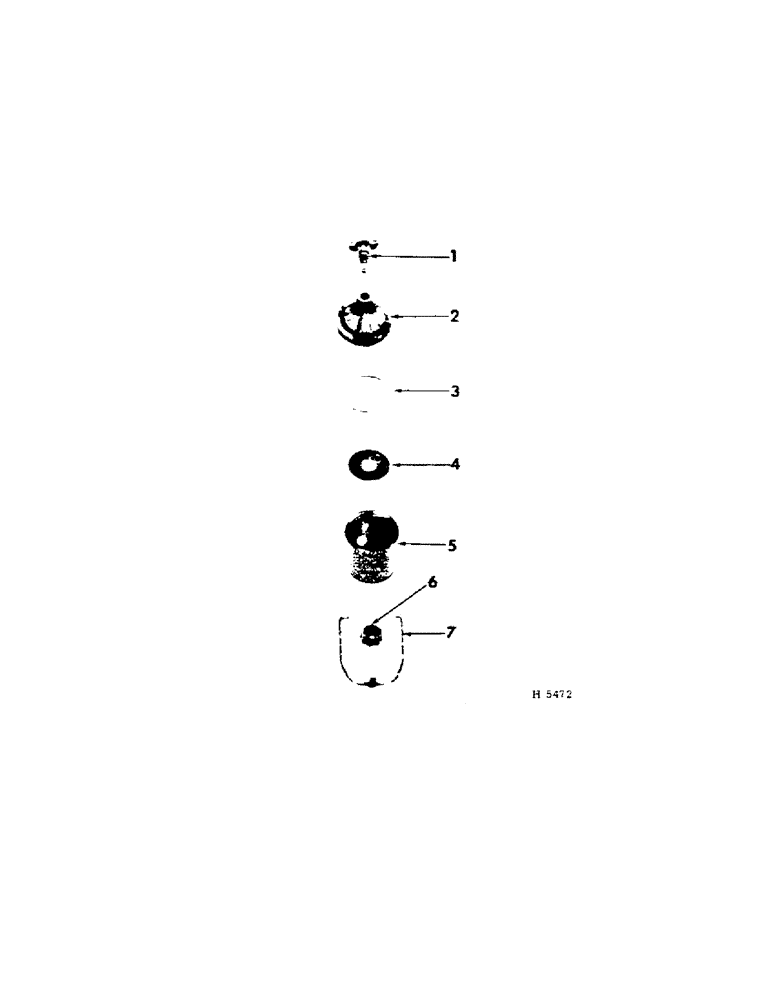

Схема запчастей Case IH 201 - (A-031) - FUEL SEDIMENT BOWL, DIESEL, USED ON MACHINES PRIOR TO SERIAL NUMBER H 3780 (10) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

636211R91

BOWL, fuel sediment (includes parts listed) (for machines w/diesel engines, prior to serial no. H3780)

1шт.

1

50062D

VALVE

STEM, fuel shut-off

1шт.

2

BODY (order 1-636211R91, bowl) (NSS)

1шт.

3

355888R2

GASKET

fuel bowl

1шт.

4

13194D

STRAINER ASSY.

SCREEN, fuel bowl

1шт.

5

51344VA

BOWL

sediment

1шт.

6

50061D

NUT

& CAP, fuel bowl

1шт.

7

17564D

HOLDER

BAIL, sediment bowl

1шт.
