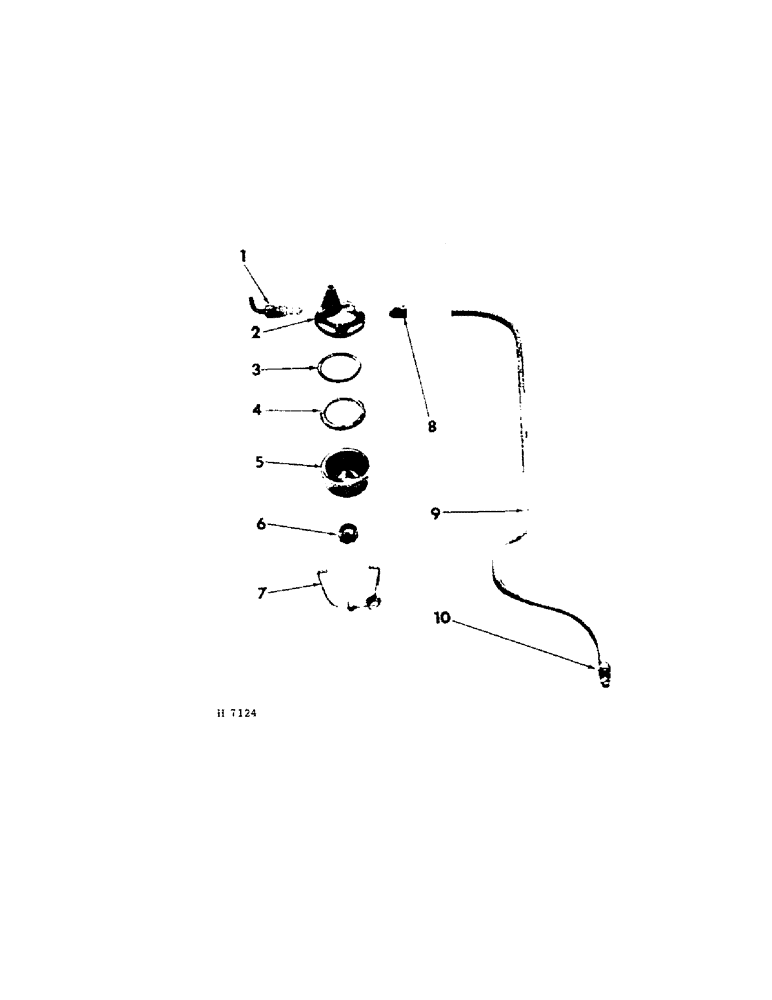

Запчасти Case IH 201 (A-031[A]) - FUEL SEDIMENT BOWL, CARBURETED, USED ON MACHINES WITH DIESEL ENGINES WITH MACHINE S.N. H3780 & UP (10) - ENGINE

369988R91

FILTER CARTRIDGE

BOWL, fuel sediment (includes parts listed unless otherwise noted)

1шт.

1

259403R91

COCK

STEM, sediment bowl

1шт.

2

BOWL (order 1-369988R91, bowl) (NSS)

1шт.

3

360679R1

GASKET

fuel sediment bowl

1шт.

4

49923D

FILTER SCREEN

SCREEN, fuel

1шт.

5

357958R1

BOWL

sediment

1шт.

6

50061D

NUT

& CAP, fuel bowl

1шт.

7

49947D

COLLAR CLAMP

BAIL, sediment bowl

1шт.

8

19985R1

TUBE NUT,1/2"-20

NUT, coupling (w/nylon sleeve)

1шт.

9

618899R1

LINE, fuel

1шт.

Not part of sediment bowl

1шт.

Carbureted I.H. engine only

1шт.

10

222-503

TUBE NUT,1/2"-20

NUT, fuel line coupling

1шт.

Not part of sediment bowl

1шт.

Carbureted I.H. engine only

1шт.
