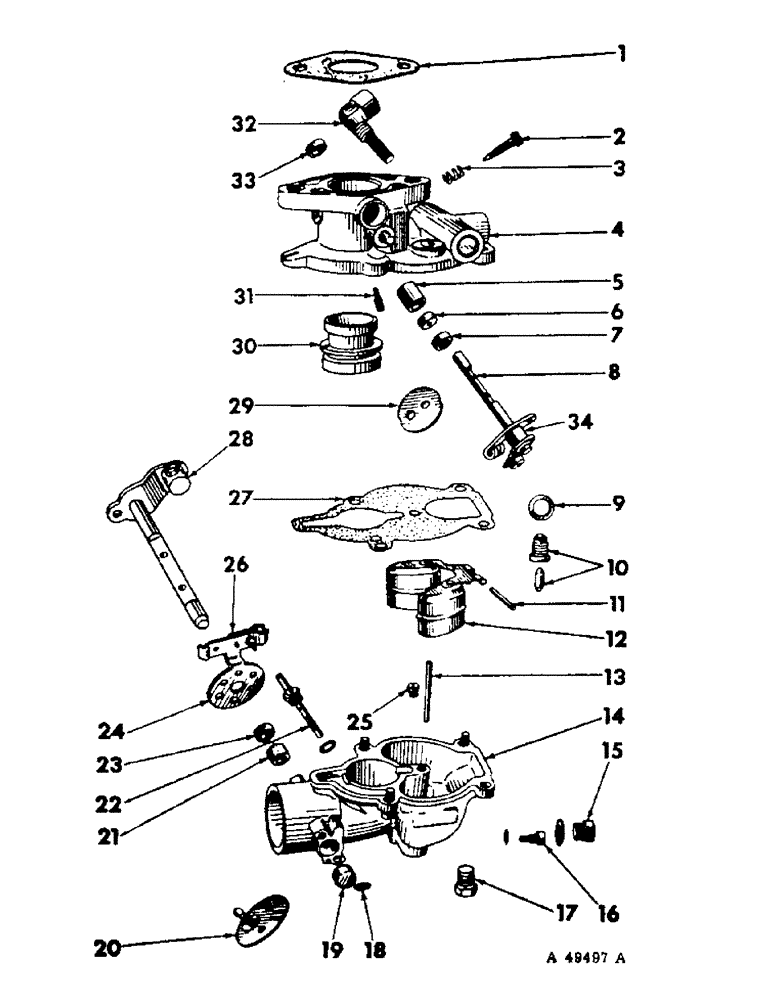

Запчасти Case IH 201 (A-030) - CARBURETOR, ZENITH MODEL (10) - ENGINE

374203R92

CARBURETOR

(includes parts listed)

1шт.

50705D

STUD

carburetor & manifold

2шт.

Not part of carburetor

1шт.

NUT, 5/16"-NF jam

2шт.

Not part of carburetor

1шт.

LK-WASH, 5/16" int-tooth

2шт.

Not part of carburetor

1шт.

1

24520D

GASKET

carburetor

1шт.

Not part of carburetor

1шт.

2

13873D

NEEDLE

NEEDLE, idle adjusting

1шт.

3

12472D

SPRING

idler adjusting needle

1шт.

4

369878R92

BODY

throttle composed of: (1) body (NSS), (2) bushing 368360R1, (1) plate 357144R1, (1) plug 53797D, (1) retainer 376139R1, (2) screw 454415, (1) seal 368358R2, (1) shaft 62170DA, (1) spacer 54062D

1шт.

5

368360R1

BUSHING

throttle shaft

2шт.

6

368358R2

RUBBER SEAL

throttle shaft

1шт.

7

376139R1

RETAINER

throttle shaft seal

1шт.

8

62170DA

SHAFT

throttle (includes 135645H, pin & 12455D, screw)

1шт.

135645H

PIN, throttle lever taper

1шт.

12455D

SCREW, throttle lever stop

1шт.

9

53792D

WASHER

fuel valve seat

1шт.

10

274888R1

VALVE

& SEAT, fuel

1шт.

11

35514D

AXLE, float

1шт.

12

53783D

FLOAT

carburetor

1шт.

13

369880R1

TUBE, idler filler

1шт.

14

369879R92

BOWL, fuel (includes 53797D, plug; 42191D, retainer; 369880R1, tube & 21210D, washer)

1шт.

357154R91

SCREW, Serial Range: bowl-body

4шт.

15

31860D

PLUG

lower (main jet passage)

1шт.

12433D

WASHER

WASH, jet passage

1шт.

16

20628D

JET, main (on engines not equipped w/high altitude pistons)

1шт.

12435D

SEALING WASHER

WASH, main jet

1шт.

16

53786D

ADJUSTER

JET, main (w/high altitude pistons)

1шт.

Not part of carburetor

1шт.

12435D

SEALING WASHER

WASH, main jet

1шт.

17

54063D

PLUG

fuel bowl drain

1шт.

18

384327R91

FILTER

drip plug

1шт.

19

53797D

PLUG

choke shaft hole

2шт.

20

368355R91

SHUTTER

air

1шт.

454415

SCREW, no. 4 x 1/4" slt-fil-hd w/lk-wash

2шт.

21

21210D

WASHER

choke shaft packing

1шт.

22

368354R91

JET

main discharge

1шт.

22846D

WASH, jet

1шт.

23

42191D

RETAINER

choke shaft packing

1шт.

24

369885R91

BRACKET, shutter (includes 369886R1, clamp; 19404R1, nut & 19403R1, screw)

1шт.

SCREW, no. 8 x 5/16" slt-fil-hd

2шт.

SCREW, no. 8 x 1/2" slt-cd-pltd

1шт.

NUT, no. 8 cd-pltd

1шт.

25

97465H

JET, well vent

1шт.

26

369886R1

CLAMP

bracket tube

1шт.

SCREW, no. 8 x 1/2" slt-cd-pltd

1шт.

SQ-NUT, no. 8 cd-pltd

1шт.

27

368362R1

GASKET

, Serial Range: bowl-body

1шт.

28

369884R91

SHUTTER

LEVER, shutter (includes 19451R1, screw)

1шт.

SCREW, no. 8 x 3/8" slt-cd-pltd screw

1шт.

29

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

454415

SCREW W/LK-WASH, no. 5 x 1/4" slf-fil-hd

2шт.

30

369881R1

VENTURI

1шт.

31

352604R1

JET

idling

1шт.

32

53796D

ELBOW

SCREEN, filter

1шт.

33

53797D

PLUG

shaft hole

1шт.

34

54062D

WASHER

throttle lever

1шт.
