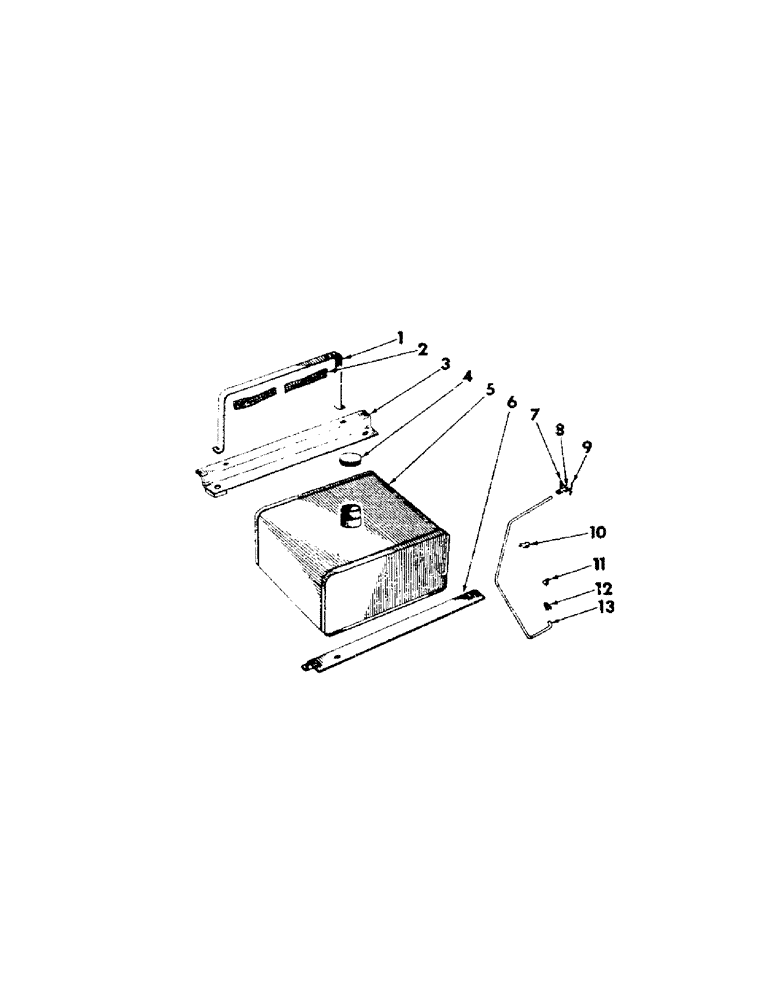

Запчасти Case IH 201 (A-029) - FUEL TANK (10) - ENGINE

1

613209R1

STRAP, fuel tank support

2шт.

BOLT W/NUT, 3/8 x 5/8" mach

4шт.

LK-WASH, 3/8"

4шт.

2

990538R1

STRIP

PAD, support strap (1 x 56-3/4" cotton webbing - dealer to, Serial Range: cut-size)

1шт.

3

613208R11

SUPPORT, fuel tank RH

1шт.

BOLT W/NUT, 3/8 x 1" mach

1шт.

BOLT W/NUT, 3/8 x 1-1/4" mach

1шт.

LK-WASH, 3/8"

2шт.

4

67097H

CAP

fuel tank

1шт.

5

612328R91

TANK, fuel (includes 67097H, cap)

1шт.

6

613207R1

SUPPORT, fuel tank LH

1шт.

BOLT W/NUT, 3/8 x 3/4" mach

2шт.

LK-WASH, 3/8"

2шт.

7

61650D

VALVE

BODY, shut-off valve

1шт.

8

19985R1

TUBE NUT,1/2"-20

NUT, shut-off valve

1шт.

9

VALVE, shut-off (includes 61650D body & 19985R1, nut) (NSS)

1шт.

10

105246

COLLAR CLAMP

CLIP, no. 5 closed

2шт.

171598

SHIM,.003" Thk

SCREW, 1/4 x 1/2" special tapping

1шт.

BOLT W/NUT, 1/4 x 5/8" mach

1шт.

LK-WASH, 1/4'

1шт.

11

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

fuel line carburater

1шт.

12

222-503

TUBE NUT,1/2"-20

NUT, fuel line

1шт.

13

613217R1

LINE, fuel

1шт.
