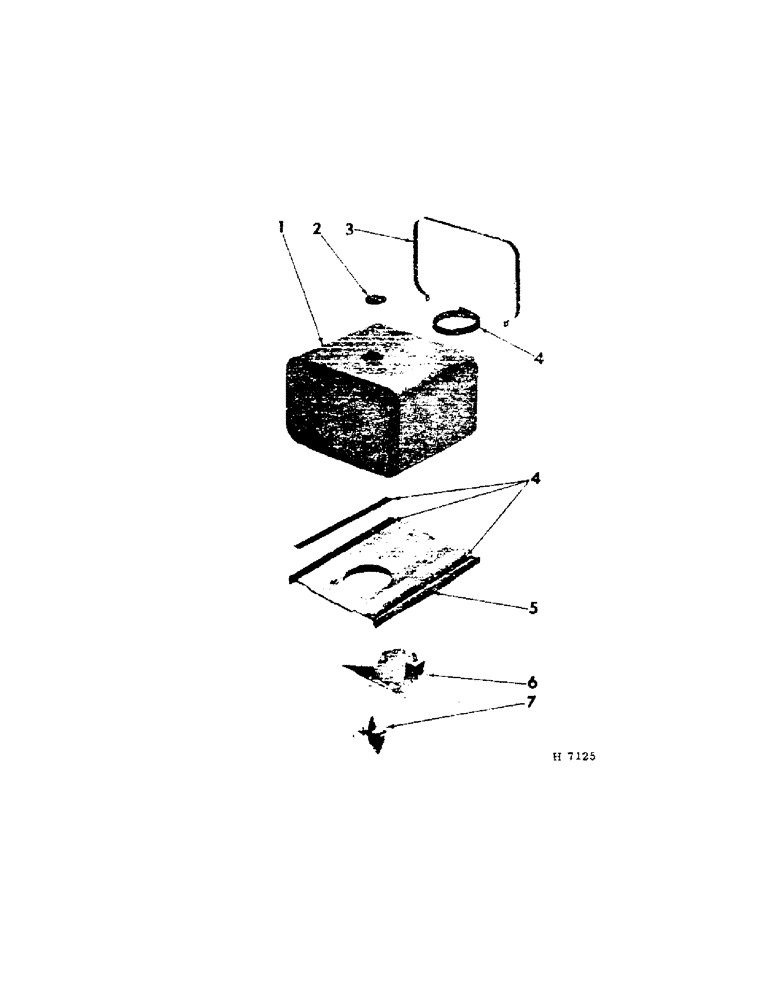

Запчасти Case IH 201 (A-029[A]) - FUEL TANK, CARBURETED, NOT WISCONSIN ENGINE (10) - ENGINE

1

612328R91

TANK, fuel (includes 67097H, cap)

1шт.

2

67097H

CAP

fuel tank

1шт.

3

614007R21

STRAP, fuel tank

2шт.

BOLT W/NUT, 3/8 x 1" mach

4шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

4шт.

LK-WASH, 3/8"

4шт.

4

990538R1

STRIP

PAD, tank support strap (2-1 x 16" and 2-1 x 43" pieces of cotton webbing, to be cut to length by dealer)

1шт.

5

614004R92

BASE, fuel tank

1шт.

BOLT W/NUT, 3/8 x 5/8" mach

2шт.

BOLT, 3/8 x 3/4" type 2

4шт.

LK-WASH, 3/8"

6шт.

6

612305R11

GUSSET, fuel tank support

1шт.

BOLT, 5/16 x 5/8" type 2

2шт.

LK-WASH, 5/16"

2шт.

7

BOWL, fuel sediment (for component parts refer to "fuel sediment bowl")

1шт.
