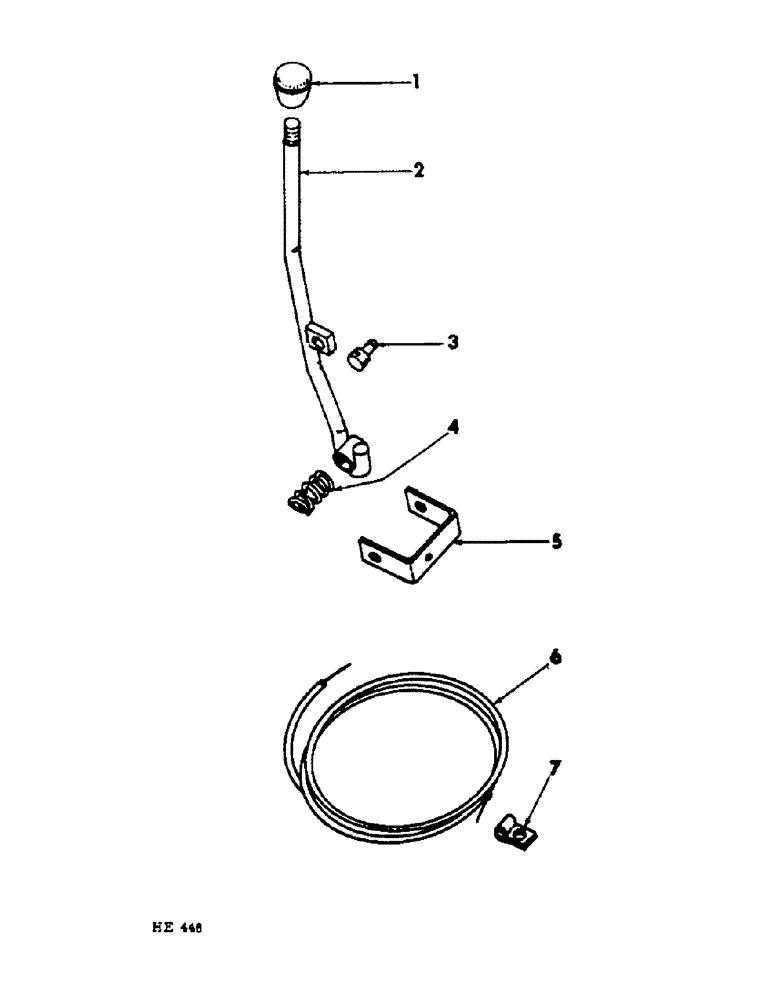

Запчасти Case IH 201 (A-028) - THROTTLE CONTROL (10) - ENGINE

1

611976R1

KNOB, throttle lever

1шт.

2

614595R91

LEVER, throttle

1шт.

17557R91

BOLT, 3/8 x 2-1/4" dld mach

1шт.

NUT, 3/8" slt

1шт.

28035K

WASHER

13/32 x 1 x 22 ga

2шт.

C-PIN, 3/32 x 3/4"

1шт.

3

275900R1

SWIVEL, lever cable

1шт.

149505

SPRING, swivel retainer

1шт.

SCREW, no. 8 x 1/4" slt-fil-hd

1шт.

4

611420R1

SPRING

lever tension

1шт.

5

613213R1

ANCHOR, throttle cable

1шт.

SCREW W/NUT, 1/4 x 1/2" slt-rd-hd

2шт.

LK-WASHER, 1/4"

2шт.

6

613216R91

CABLE, throttle

1шт.

7

105244

CLIP

no. 3 throttle cable

2шт.

BOLT W/NUT, 1/4 x 1/2" cd-pltd mach

2шт.

LK-WASHER, 1/4" cd-pltd

2шт.
