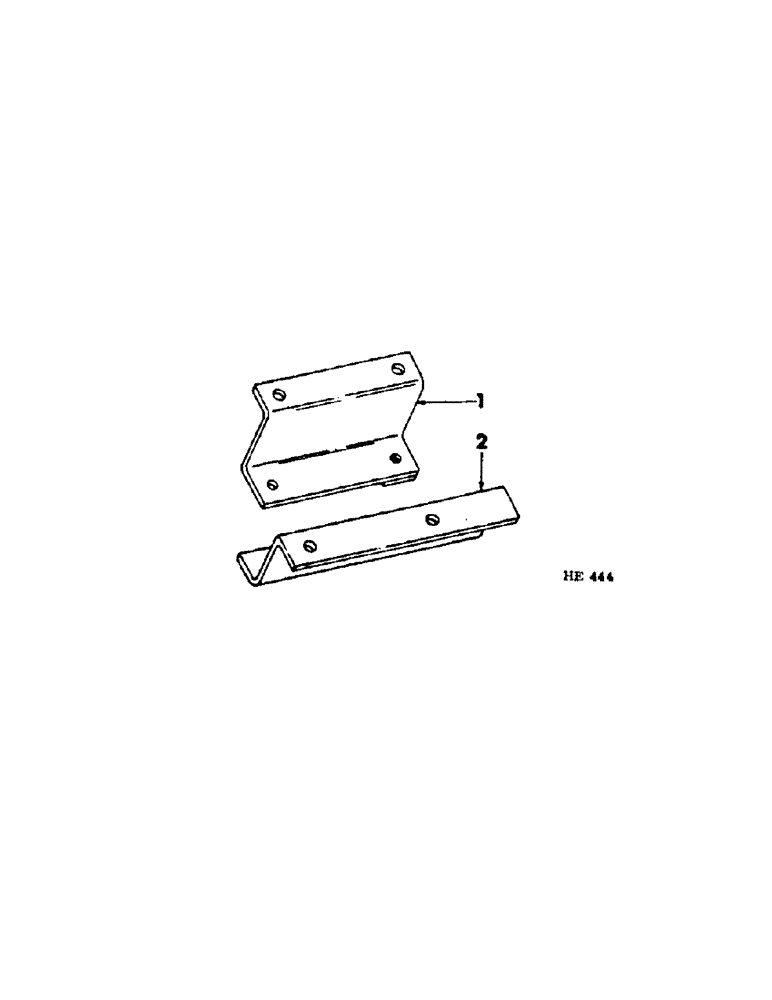

Запчасти Case IH 201 (A-026[B]) - ENGINE MOUNTING SUPPORTS (10) - ENGINE

1

613211R11

STRAP, engine mounting rear

1шт.

BOLT W/NUT, 7/16 x 1-1/4" crg

2шт.

BOLT, 1/2 x 1" type 2

2шт.

LK-WASHER, 7/16"

2шт.

LK-WASHER, 1/2"

2шт.

2

613210R1

STRAP, engine mounting front

1шт.

BOLT W/NUT, 7/16 x 1-1/8" crg

3шт.

BOLT, 1/2 x 1" type 2

2шт.

LK-WASHER, 7/16"

3шт.

LK-WASHER, 1/2"

2шт.
