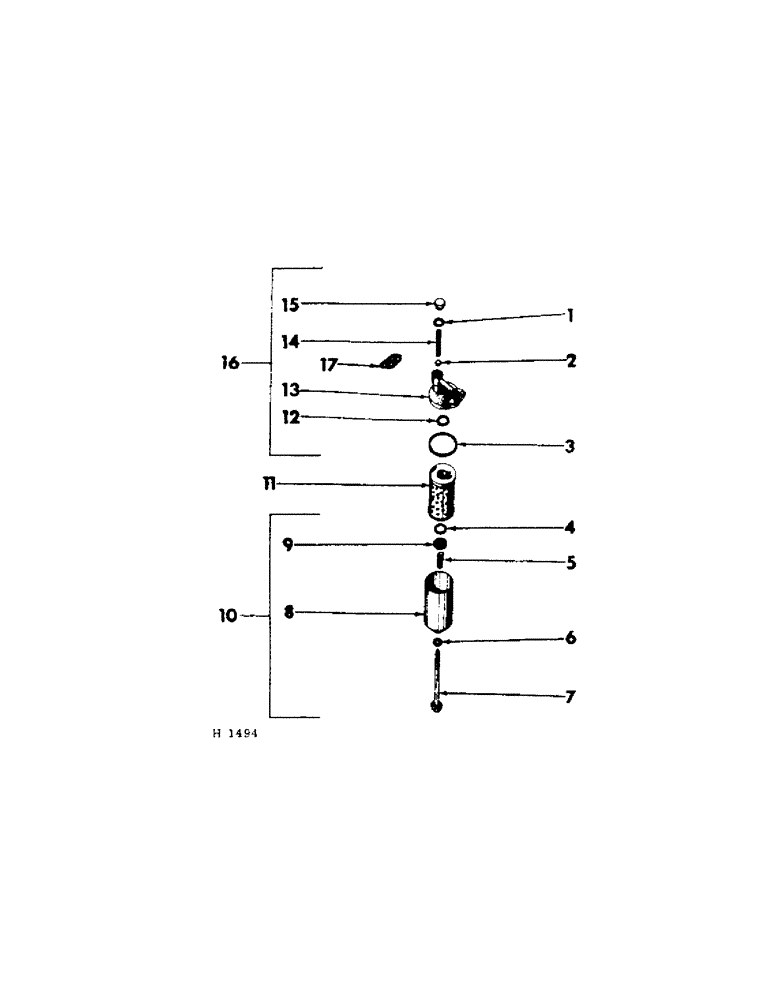

Запчасти Case IH 201 (A-025) - ENGINE OIL FILTER, A.C. DELCO (10) - ENGINE

705612R91

FILTER

engine oil (opt w/3042420R92, 708548R91, 306685191, filters) (includes parts listed below, unless otherwise noted)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Not part of oil filter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil filter

1шт.

1

705740R1

GASKET, valve plug

1шт.

2

705743R1

BALL

relief valve

1шт.

3

705744R1

GASKET

filter head cover

1шт.

4

705735R1

SEAL

lower element

1шт.

5

705737R1

RETAINER

SPRING, element retainer

1шт.

6

705733R1

WASHER

center bolt

1шт.

7

705732R1

BOLT

oil filter center

1шт.

8

705736R1

SHELL, oil filter element

1шт.

9

705734R1

RETAINER

lower seal

1шт.

10

705731R91

SHELL

(reference no.'s 4 to 9 inclusive)

1шт.

11

376364R91

ELEMENT

PACKAGE, filter element service

1шт.

12

705735R1

SEAL

element top

1шт.

13

705742R1

COVER

HEAD, oil filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Not part of oil filter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil filter

1шт.

14

705741R1

VALVE SPRING

SPRING, relief valve

1шт.

15

705739R1

PLUG, relief valve

1шт.

16

705738R91

HEAD

COVER, oil filter head (reference no.'s 1 to 3 and 11 to 15 inclusive)

1шт.

17

706592R1

GASKET

filter head crankcase

1шт.

Not part of oil filter

1шт.
