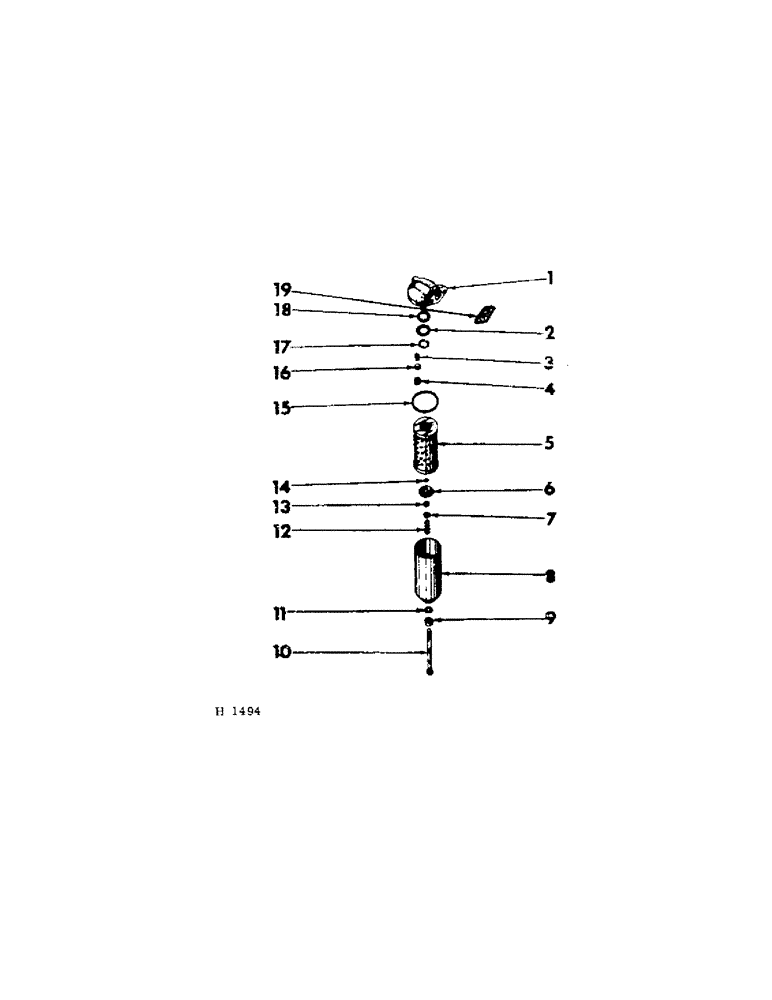

Запчасти Case IH 201 (A-025[A]) - ENGINE OIL FILTER, PUROLATOR (10) - ENGINE

708548R91

FILTER CARTRIDGE

GILTER, engine oil (opt w/3042420R92, 705612R91 & 3066851R91, filters) (includes parts listed below, unless otherwise noted)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Not part of oil filter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil filter

1шт.

1

707873R1

HEAD

oil filter

1шт.

2

707868R1

GUIDE, filter element

1шт.

3

707865R1

SPRING

relief valve

1шт.

4

707864R1

SEAT

relief valve

1шт.

5

376364R91

ELEMENT

PACKAGE, filter element service

1шт.

6

707871R1

GUIDE, filter element bottom

1шт.

7

708967R1

WASHER

lower guide

1шт.

8

707866R1

SUMP

SHELL, oil filter element

1шт.

9

707862R1

DISC

COLLAR, center bolt

1шт.

10

707872R1

BOLT

oil filter center

1шт.

11

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

center bolt collar

1шт.

12

703789R1

SPRING

lower element guide

1шт.

13

703795R1

RING

SEAL, center spindle

1шт.

14

707869R1

RETAINER

CIRCLIP, lower element

1шт.

15

707859R1

SEALING RING

SEAL, oil filter head

1шт.

16

707870R1

BALL

relief valve

1шт.

17

707874R1

CIRCLIP, filter head

1шт.

18

707861R1

GASKET

filter hea

1шт.

19

706592R1

GASKET

oil filter crankcase

1шт.

Not part of oil filter

1шт.
