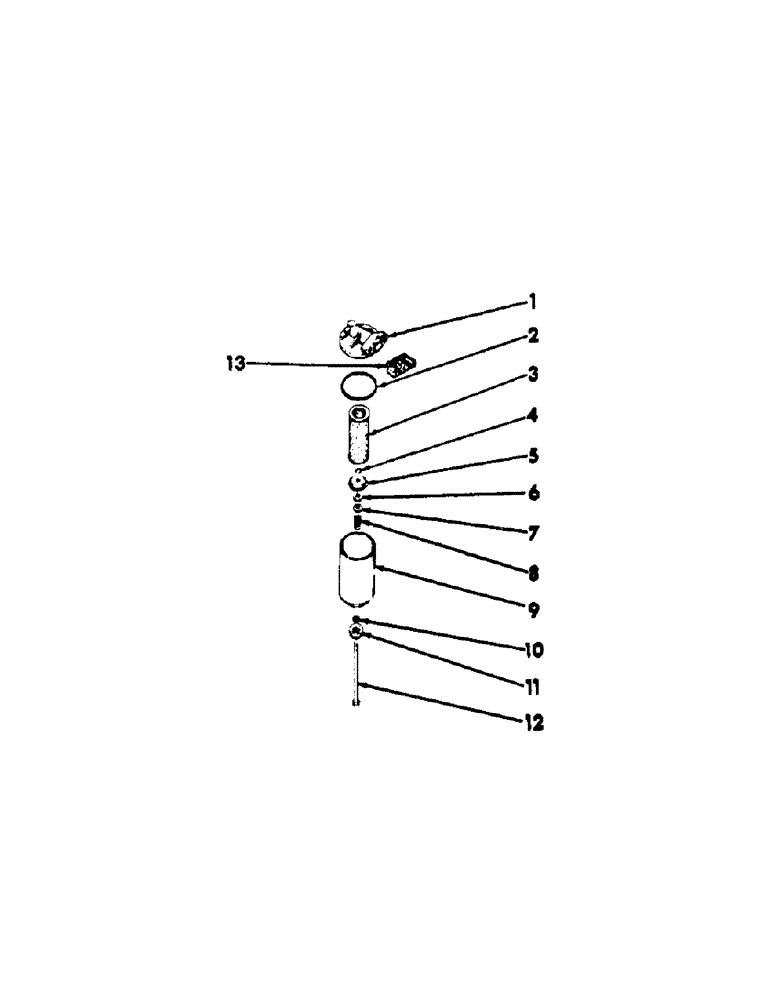

Запчасти Case IH 201 (A-024) - ENGINE OIL FILTER, PUROLATOR (10) - ENGINE

3066851R91

FILTER

engine oil (opt w/705620r91, 708548R91 & 3042420R92, filters) (includes parts listed below, unless otherwise noted)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Not part of oil filter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil filter

1шт.

1

3069113R91

HEAD

ASSEMBLY, filter (NSS)

1шт.

2

707859R1

SEALING RING

SEAL, oil filter head

1шт.

3

376364R91

ELEMENT

PACKAGE, filter element service

1шт.

4

707869R1

RETAINER

CIRCLIP, lower element

1шт.

5

3069108R1

GUIDE

filter element bottom

1шт.

6

3069109R1

WASHER

SEAL, center spindle

1шт.

7

3069114R1

WASHER

lower guide

1шт.

8

703789R1

SPRING

lower element guide

1шт.

9

3069111R91

SUMP

PUMP ASSEMBLY

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

center bolt collar

1шт.

11

707862R1

DISC

COLLAR, center bolt

1шт.

12

3069112R1

BOLT

oil filter center

1шт.

13

706592R1

GASKET

filter head crankcase

1шт.

Not part of oil filter

1шт.
