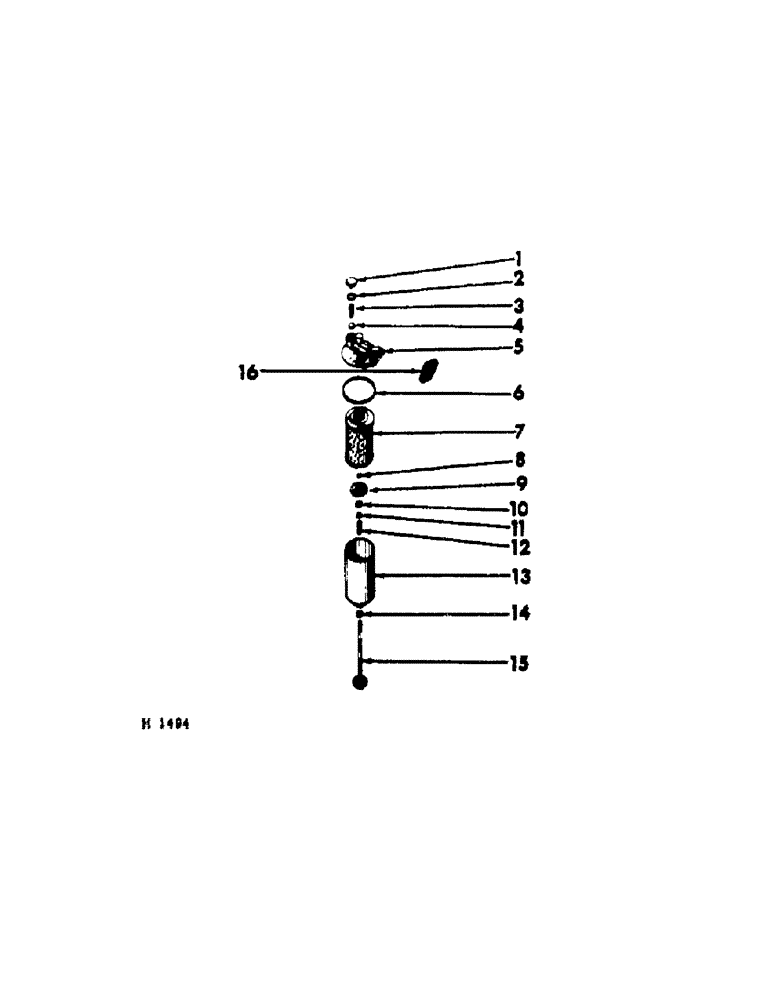

Запчасти Case IH 201 (A-024[A]) - ENGINE OIL FILTER, TECALEMIT (10) - ENGINE

3042420R92

FILTER

engine oil (opt w/705612R91, 3066851R91 & 708548R91, filters) (includes parts listed below, unless otherwise noted)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

Not part of oil filter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil filter

1шт.

1

PLUG (order 1-3069975R91, head)

1шт.

2

WASHER (order 1-3069975R91, head)

1шт.

3

SPRING (order 1-3069975R91, head)

1шт.

4

BALL (order 1-3069975R91, head)

1шт.

5

3069975R91

HEAD

filter

1шт.

6

3042423R1

SEALING WASHER

RING, container sealing

1шт.

7

376364R91

ELEMENT

PACKAGE, element service

1шт.

8

3065965R1

RING

CIRCLIP, center bolt

1шт.

9

3043293R1

PLATE

pressure

1шт.

10

3042428R1

WASHER

felt

1шт.

11

3043292R1

WASHER

pressure plate spg

1шт.

12

3043291R1

SPRING

pressure plate

1шт.

13

3043289R1

BODY

CONTAINER

1шт.

14

3042425R1

WASHER

center bolt sealing

1шт.

15

3069976R91

BOLT

center ass'y

1шт.

16

706592R1

GASKET

filter head crankcase

1шт.

Not part of oil filter

1шт.
