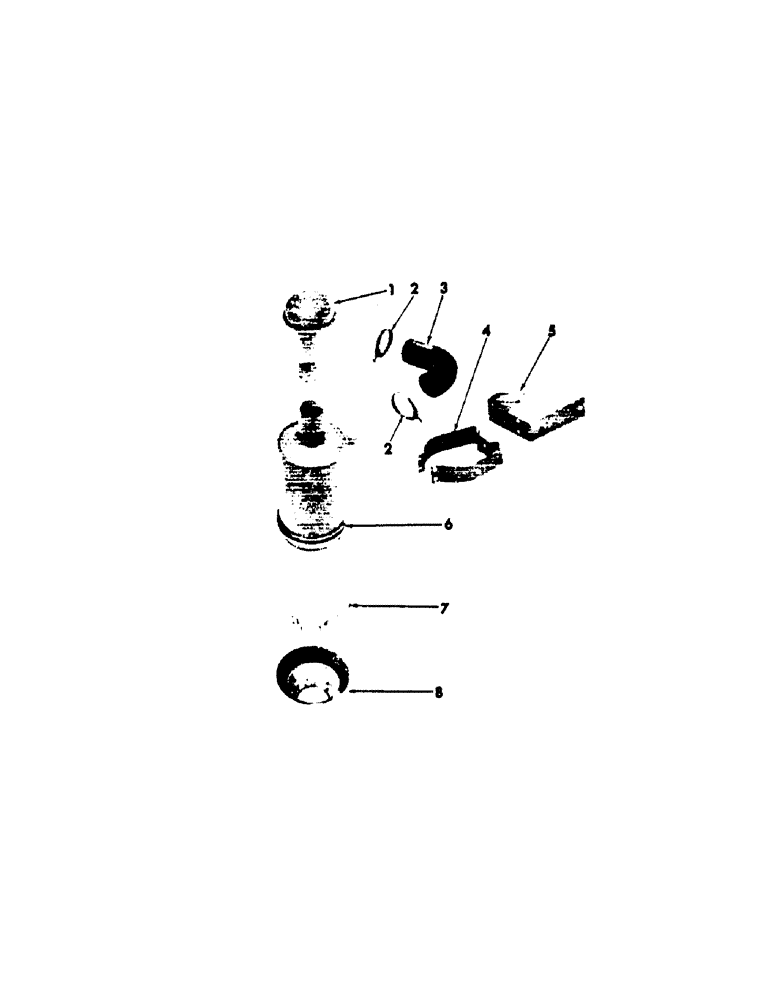

Запчасти Case IH 201 (A-022) - AIR CLEANER (10) - ENGINE

1

635481R91

CAP, air intake

1шт.

2

29970D

CLAMP

cleaner to manifold hose

2шт.

3

614121R1

HOSE

, Serial Range: cleaner-manifold

1шт.

4

704536R1

BRACKET

CLAMP, cleaner support

1шт.

BOLT W/NUT, 5/16 x 3/4" mach

4шт.

BOLT W/NUT, 5/16 x 1-1/4" mach

2шт.

LK-WASH, 5/16"

6шт.

5

614120R1

BRACKET, cleaner mounting

1шт.

BOLT W/NUT, 3/8 x 5/8" mach

2шт.

LK-WASH, 3/8"

2шт.

6

636706R91

CLEANER, air (includes 636558R91, clamp & 362974R91, cup)

1шт.

7

636558R91

CLAMP

oil cup retaining

1шт.

8

362974R91

CUP, cleaner oil

1шт.
