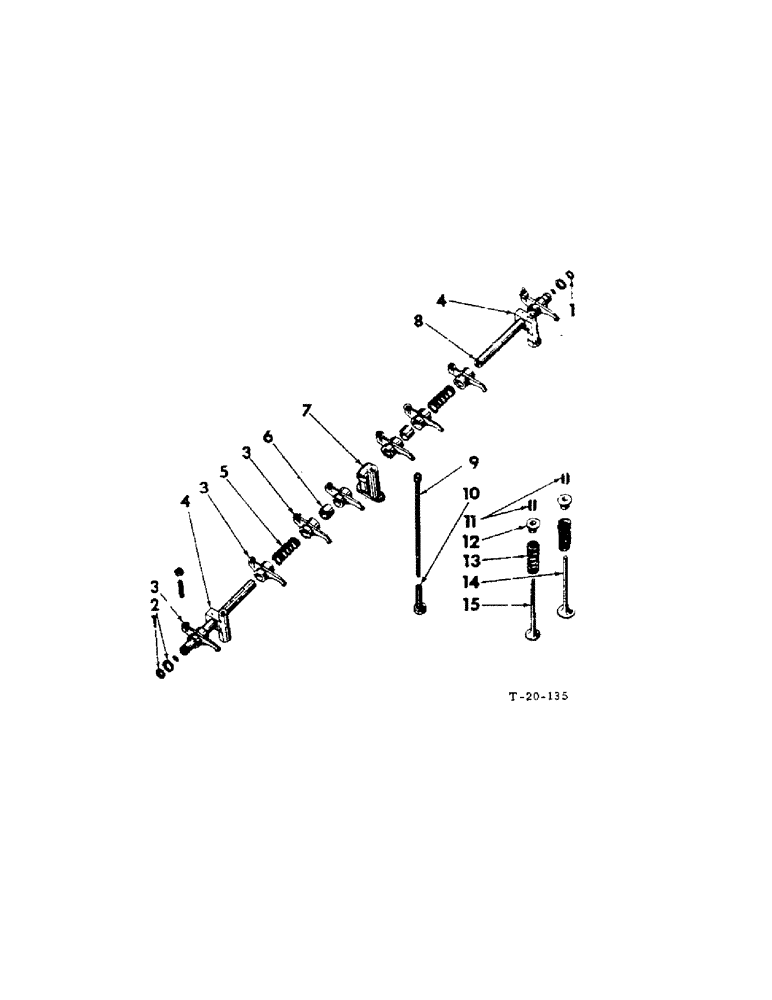

Запчасти Case IH 201 (A-021) - VALVE, LEVERS, PUSH ROD AND TAPPET (10) - ENGINE

1

43375D

RING

valve lever shaft snap

2шт.

2

43374D

SPRING WASHER

valve lever shaft spring

2шт.

3

706131R11

ROCKER

LEVER, valve (includes 24564DA, bushing)

8шт.

24564DA

BUSHING

valve lever

8шт.

16067DA

ADJUSTMENT SCREW,3/8" - 24

lever adjusting

8шт.

133093R1

NUT,Hex, 3/8" - 24

adjusting screw

8шт.

4

703886R2

SUPPORT

BRACKET, lever shaft front

1шт.

4

703887R2

SUPPORT

BRACKET, lever shaft rear

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

2шт.

NUT, 3/8"

2шт.

5

45949D

SPRING

valve lever

2шт.

6

703893R2

SPACER

valve lever

2шт.

7

703885R1

SUPPORT

BRACKET, valve lever shaft center

1шт.

172528

PLUG,Exp, 9/16"

9/16" dia expansion

1шт.

9

704783R2

ROD

valve push

8шт.

10

704782R1

TAPPET

valve

8шт.

11

704443R1

WEDGE

LOCK, valve spring

16шт.

12

704446R1

CUP

valve spring retainer

8шт.

13

710347R2

VALVE SPRING

SPRING, valve

8шт.

14

3043826R1

LOCK VALVE

VALVE, exhaust

4шт.

15

3040361R1

OVERSIZE INLET VALVE

VALVE, intake

4шт.
